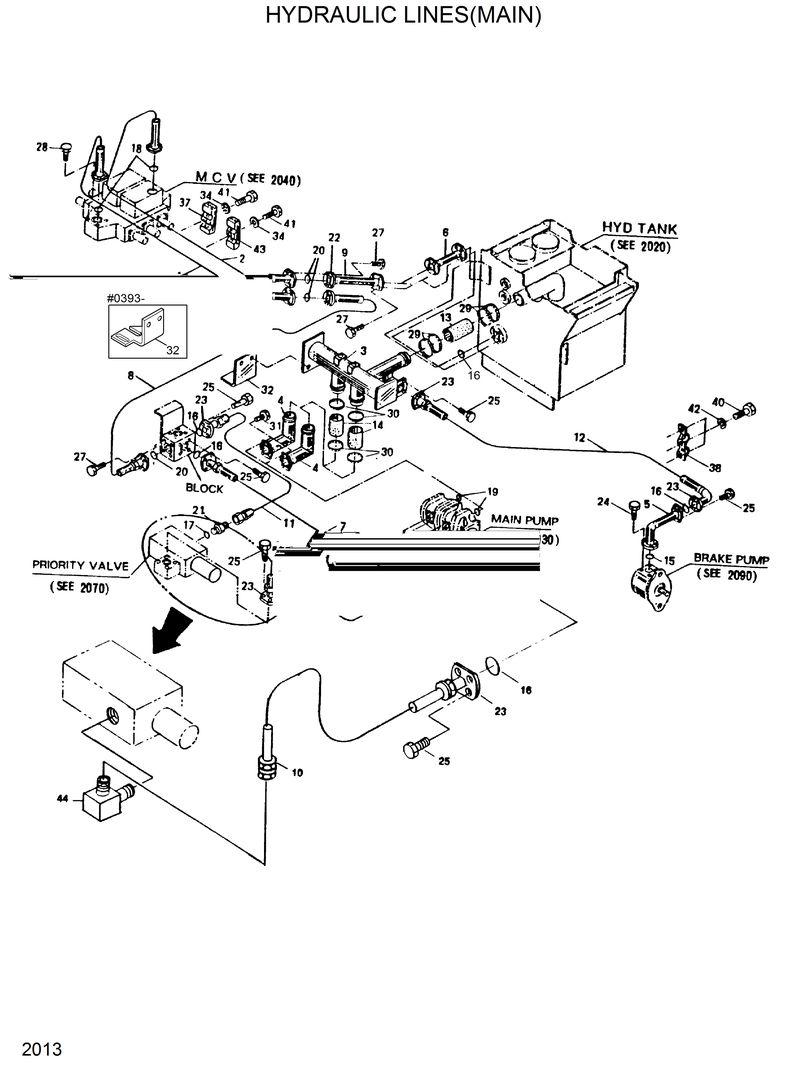

Запчасти Hyundai HL35C HYDRAULIC LINES(MAIN)

31L1-00341

31L1-00341-Hose Assy

31L1-0108

31L1-0108-Plate

31L1-0108

31L1-0108-Plate

1

31L1-0001

31L1-0001-Pipe Wa

10

31L1-3003

31L1-3003-Hose Assy

11

31L1-3005

31L1-3005-Hose Assy

12

81L1-0042

81L1-0042-Hose Assy

13

31L1-0032

31L1-0032-Hose Assy

14

31L1-0082

31L1-0082-Hose Assy

15

S632-025001

S632-025001-O-Ring

16

31L1-3029

31L1-3029-O-Ring

17

31L1-0056

31L1-0056-O-Ring

18

31L1-0057

31L1-0057-O-Ring

19

31L1-0058

31L1-0058-O-Ring

2

31L1-0002

31L1-0002-Pipe Wa

20

31L1-0059

31L1-0059-O-Ring

21

31L1-3023

31L1-3023-Fitting

22

31L1-0077

31L1-0077-Flange-Split

23

81L1-0048

81L1-0048-Flange-Split

24

81L1-0051

81L1-0051-Bolt-Socket

25

S107-100302

S107-100302-Bolt-Socket

26

S107-100402

S107-100402-Bolt-Socket

27

S107-140452

S107-140452-Bolt-Socket

28

S107-160452

S107-160452-Bolt-Socket

29

S520-100000

S520-100000-Clamp-Hose

3

32L1-0001

32L1-0001-Pipe Wa

30

S520-070000

S520-070000-Clamp-Hose

31

S107-120402

S107-120402-Bolt-Socket

33

S017-120202

S017-120202-Bolt-Hex

34

S411-120002

S411-120002-Washer-Spring

35

S403-122002

S403-122002-Washer-Plain

37

31L1-0114

31L1-0114-Clamp

38

31L1-0120

31L1-0120-Clamp

4

32L1-0002

32L1-0002-Pipe Wa

40

S015-080202

S015-080202-Bolt-Hex

41

S017-120702

S017-120702-Bolt-Hex

42

S411-080002

S411-080002-Washer-Spring

43

31L1-5061

31L1-5061-Clamp

44

31L1-3017

31L1-3017-Elbow-90

5

31L1-0011

31L1-0011-Pipe Wa

6

31L1-0028

31L1-0028-Pipe Wa

7

31L1-0033

31L1-0033-Hose Assy

8

31L1-0034

31L1-0034-Hose Assy

9

31L1-0035

31L1-0035-Hose Assy
