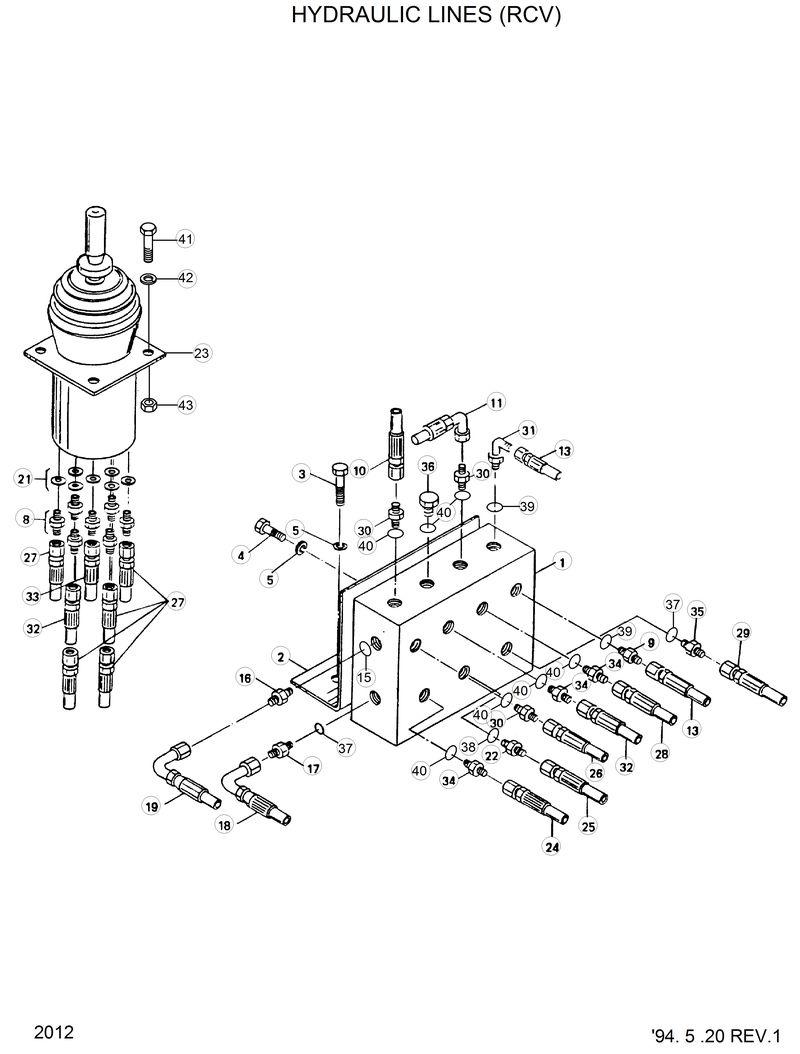

Запчасти Hyundai HL35C HYDRAULIC LINES(RCV)

1

31L1-0026

31L1-0026-Block

10

31L1-0022

31L1-0022-Hose Assy

11

81L1-0019

81L1-0019-Elbow

13

81L1-0008

81L1-0008-Hose Assy

15

S631-029001

S631-029001-O-Ring

17

31L1-3020

31L1-3020-Fitting

18

31L1-0029

31L1-0029-Hose Assy

19

31L1-0030

31L1-0030-Hose Assy

2

31L1-0075

31L1-0075-Plate

21

31L1-0049

31L1-0049-Washer-Copper

22

81L1-0030

81L1-0030-Fitting

23

31L1-1002

31L1-1002-Rcv

24

31L1-0024

31L1-0024-Hose Assy

25

81L1-0007

81L1-0007-Hose Assy

26

31L1-3007

31L1-3007-Hose Assy

27

31L1-0012

31L1-0012-Hose Assy

28

31L1-0019

31L1-0019-Hose Assy

29

31L1-3008

31L1-3008-Hose Assy

3

S017-120202

S017-120202-Bolt-Hex

30

31L1-3019

31L1-3019-Fitting

31

81L1-0050

81L1-0050-Elbow

32

31L1-0018

31L1-0018-Hose Assy

33

31L1-0017

31L1-0017-Hose Assy

34

31L1-0044

31L1-0044-Fitting

35

31L1-3021

31L1-3021-Fitting

35

31L1-3021

31L1-3021-Fitting

36

81L1-0035

81L1-0035-Plug

37

S631-022001

S631-022001-O-Ring

38

S631-018001

S631-018001-O-Ring

39

S631-014001

S631-014001-O-Ring

4

S017-120402

S017-120402-Bolt-Hex

40

S631-011001

S631-011001-O-Ring

41

S015-060252

S015-060252-Bolt-Hex

42

S411-060002

S411-060002-Washer-Spring

43

S203-061002

S203-061002-Nut-Hex

5

S411-120002

S411-120002-Washer-Spring

8

31L1-5062

31L1-5062-Fitting

9

81L1-0028

81L1-0028-Fitting
