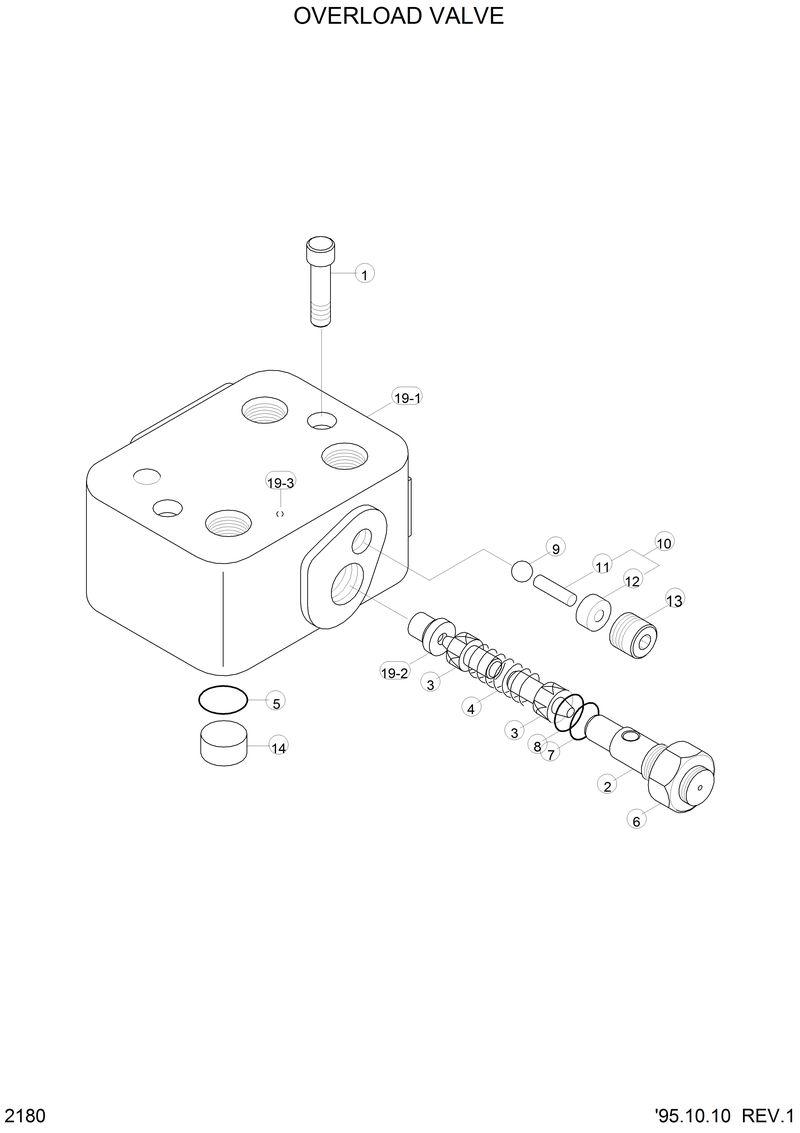

Запчасти Hyundai HL25C OVERLOAD VALVE

*

31L2-3003

31L2-3003-Overload Valve

10

BJ0040A

BJ0040A-. Plug Sub Assy

11

@

@-.. Pin

12

@

@-.. Bushing

13

BJ0038A

BJ0038A-. Plug

14

BJ0050A

BJ0050A-. Spacer

19

BJ0028A-001

BJ0028A-001-. Housing Assy

2

BJ0006B-005

BJ0006B-005-. Screw-Adjusting

20

@

@-.. Housing

21

@

@-.. Seat-Valve

22

@

@-.. Ball

23

@

@-. Name Plate

24

@

@-. Rivet

3

BJ0007A

BJ0007A-. Cone-Valve

5

A4001-22

A4001-22-. O-Ring

6

A45049

A45049-. Nut-Lock

7

A40001-10

A40001-10-. O-Ring

8

A40001-09

A40001-09-. O-Ring

9

095881-022

095881-022-. Ball

N

@

@-Not Individually Supplied

N1

A25021-45

A25021-45-. Bolt

N4

BJ0008B-005

BJ0008B-005-. Valve-Spring
