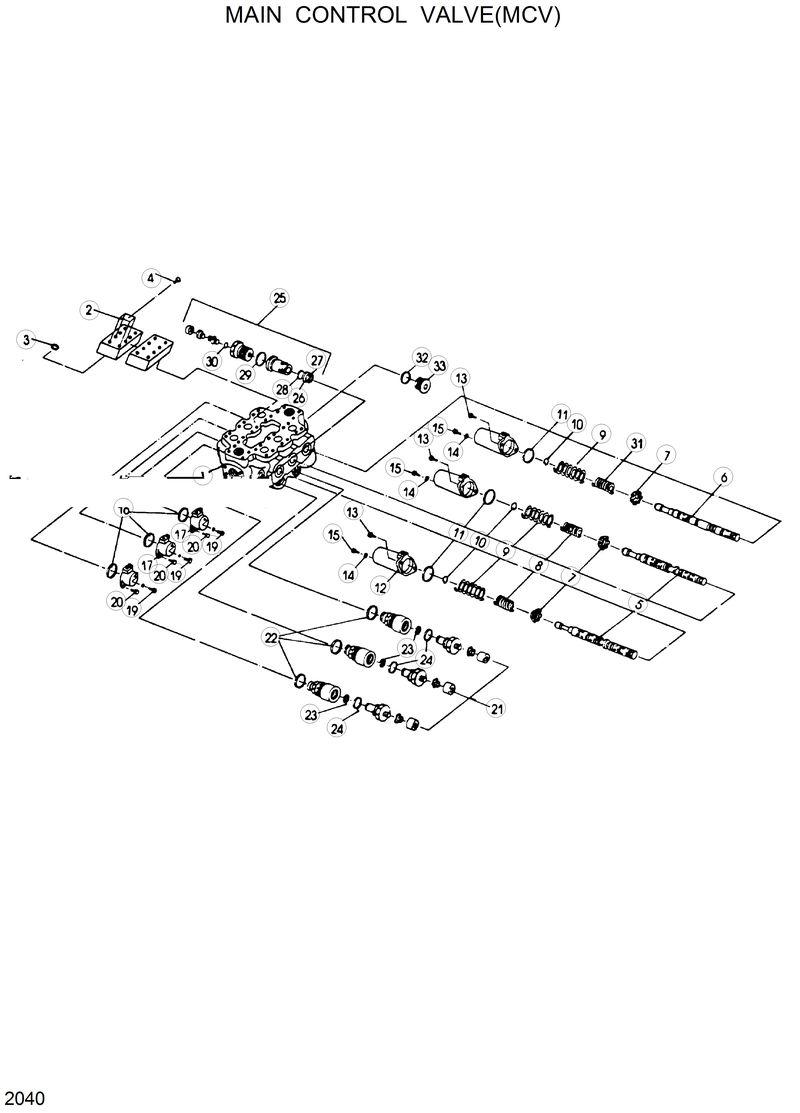

Запчасти Hyundai HL25C MAIN CONTROL VALVE(2-SPOOL)

@

@-Not Individually Supplied

*

31L2-1001

31L2-1001-Main Control Valve

1

@

@-. Housing

10

001053

001053-. Circlip

12

147031

147031-. Cover-Long

16

002187

002187-. O-Ring

16

002187

002187-. O-Ring

17

148417

148417-. Cover-Short

18

004623

004623-. Ring-Sealing

18

004623

004623-. Ring-Sealing

19

117640

117640-. Screw

19

117640

117640-. Screw

2

@

@-. Block

20

003019

003019-. Screw-Bleed

20

003019

003019-. Screw-Bleed

21

335868

335868-. Valve-P/Relief

22

002140

002140-.. O-Ring

23

014310

014310-.. Ring-Seal

24

009091

009091-.. O-Ring

25

304674

304674-. Main Relief Valve

27

008971

008971-.. O-Ring

28

002952

002952-.. Ring-Back Up

28

002952

002952-.. Ring-Back Up

29

008972

008972-.. O-Ring

3

@

@-. O-Ring

30

004264

004264-.. O-Ring

31

011449

011449-. Spring

32

004305

004305-. O-Ring

33

131015

131015-. Plug-Screw

4

@

@-. Bolt

6

@

@-. Piston

6

@

@-. Piston

7

147042

147042-. Spring-Retainer

8

011240

011240-. Spring

9

011448

011448-. Spring
