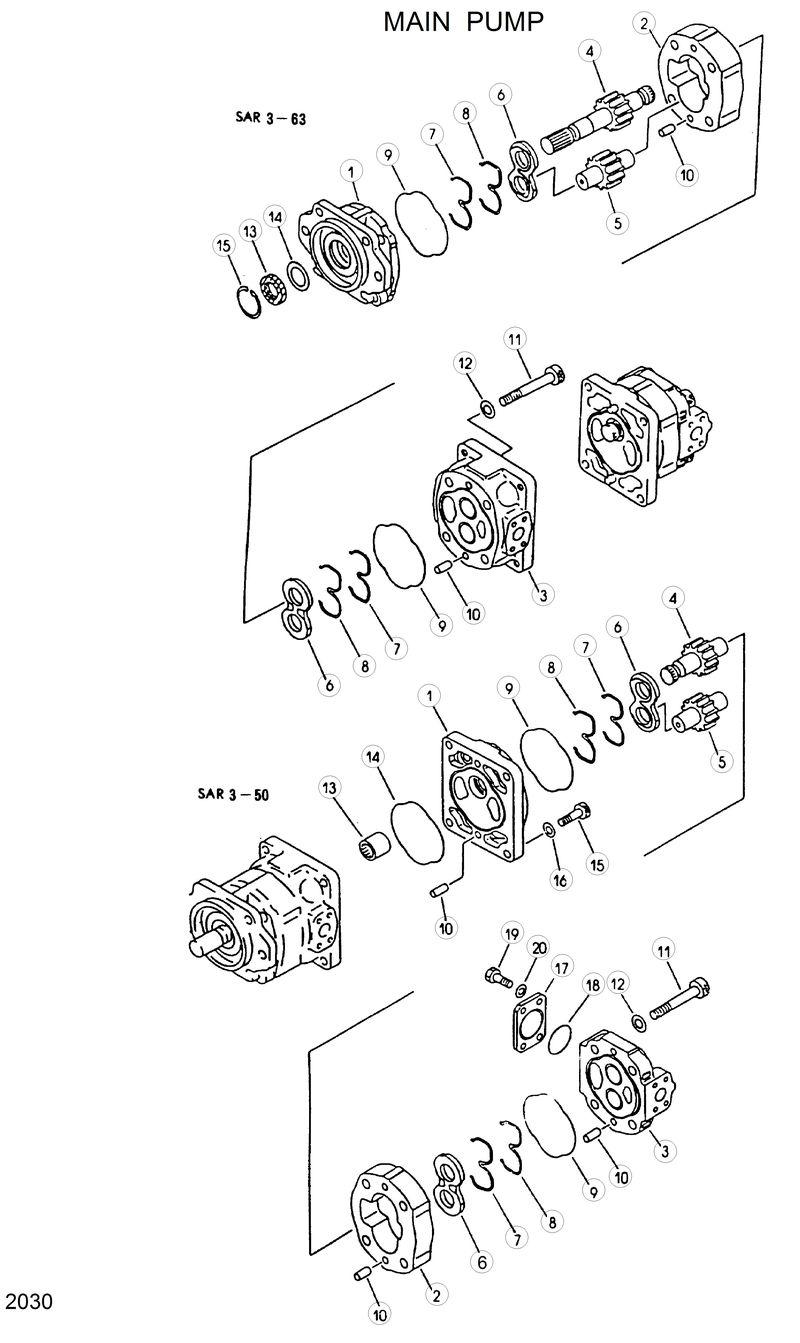

Запчасти Hyundai HL25C MAIN PUMP

@

@-Not Individually Supplied

*

31L2-1005

31L2-1005-Pump Assy(Sar3-63+50)

*-1

705-12-36210

705-12-36210-. Pump Assy(Sar3-63)

1

@

@-.. Bracket

1

@

@-.. Barcket

10

@

@-.. Pin-Dowel

10

@

@-.. Pin-Dowel

11

@

@-.. Bolt

11

@

@-.. Bolt

12

@

@-.. Washer

12

@

@-.. Washer

13

705-17-03810

705-17-03810-.. Seal-Oil

13

705-17-03330

705-17-03330-. Coupling

14

705-17-03870

705-17-03870-.. Plate

15

04065-05220

04065-05220-.. Ring-Snap

15

705-17-03370

705-17-03370-. Bolt

16

705-17-04980

705-17-04980-. Washer

17

705-17-03880

705-17-03880-. Plate

18

07000-02055

07000-02055-. O-Ring

19

01010-51230

01010-51230-. Bolt

2

@

@-.. Case-Gear

2

@

@-.. Case-Gear

20

01643-51232

01643-51232-. Washer

3

@

@-.. Cover

3

@

@-.. Carrier

4

@

@-.. Gear-Drive

4

@

@-.. Gear-Drive

5

@

@-.. Gear-Driven

5

@

@-.. Gear-Driven

6

@

@-.. Plate-Side

6

@

@-.. Plate-Side

8

@

@-.. Seal

8

@

@-.. Seal

8

@

@-.. Seal

8

@

@-.. Seal

9

@

@-.. O-Ring

9

@

@-.. O-Ring

N*-2

705-14-34530

705-14-34530-. Pump Assy(Sar3-50)

N14

705-17-03380

705-17-03380-. O-Ring
