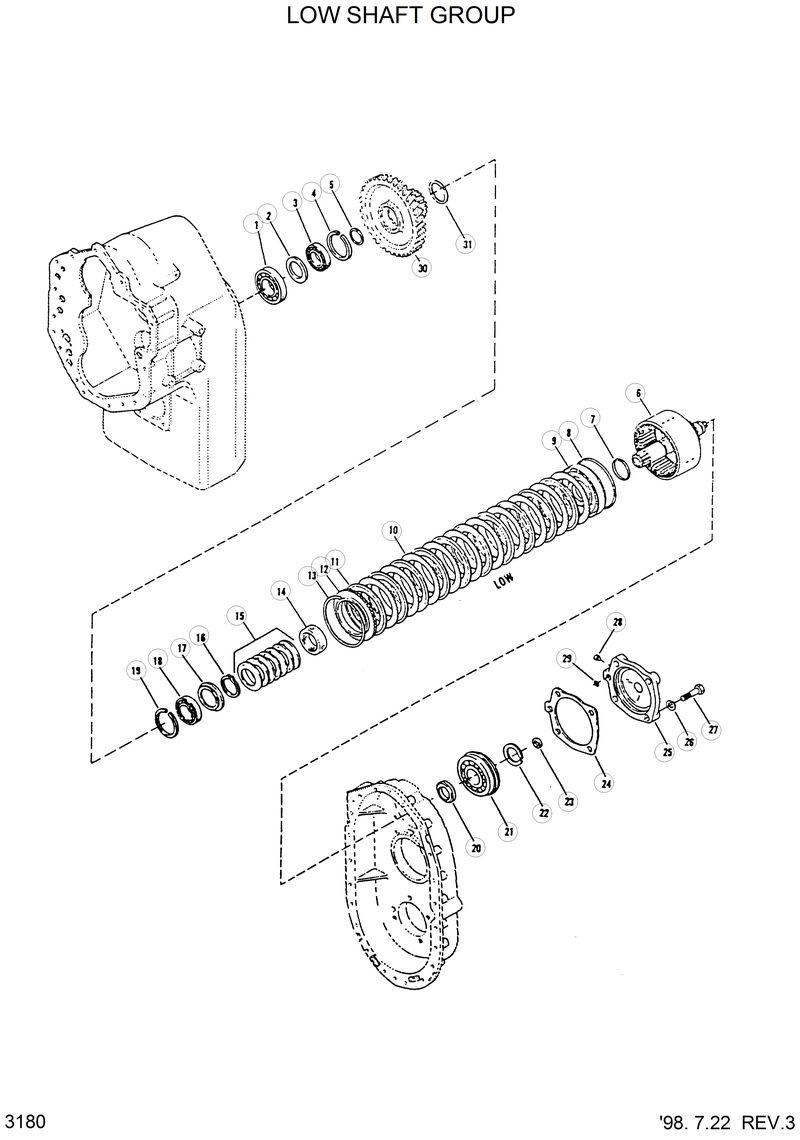

Запчасти Hyundai HL17C LOW SHAFT GROUP

10

234109

234109-Disc-Clutch,Outer

11

234336

234336-Disc-Clutch,Inner

12

242650

242650-Plate- Backing

13

234111

234111-Ring-Retaining

14

242658

242658-Spacer

15

247659

247659-Spring Assy-Disc

16

234350

234350-Ring-Retaining

17

241313

241313-Retainer-Spring

18

230885

230885-Bearing-Gear

19

223881

223881-Ring-Locating

19

223881

223881-Ring-Locating

2

234145

234145-Spacer

20

242690

242690-Spacer

21

230968

230968-Bearing-Rear

22

232081

232081-Ring-Retainer

23

208768

208768-Low Shaft Piston Ring

24

242685

242685-Low Brg Cap Gasket

25

242686

242686-Cap & Plug Assy

26

4E-07

4E-07-Washer-Lock

27

1C-720

1C-720-Screw

28

24K-2

24K-2-Plug

29

60K-30012

60K-30012-P/Cap,Brg Cap O-Ring

3

241818

241818-Bearing-Rear

30

247312

247312-Hub & Ring

31

240617

240617-Ring-Retaining

5

241259

241259-Spacer

6

243882

243882-Valve

7

234113

234113-Seal-Piston,Inner Clut

8

237032

237032-Seal-Piston,Outer Clut

9

236150

236150-Piston-Clutch

N1

239742

239742-Bearing-Shaft
