Запчасти Hyundai HL17C FR & RR DIFFERENTIAL GEAR

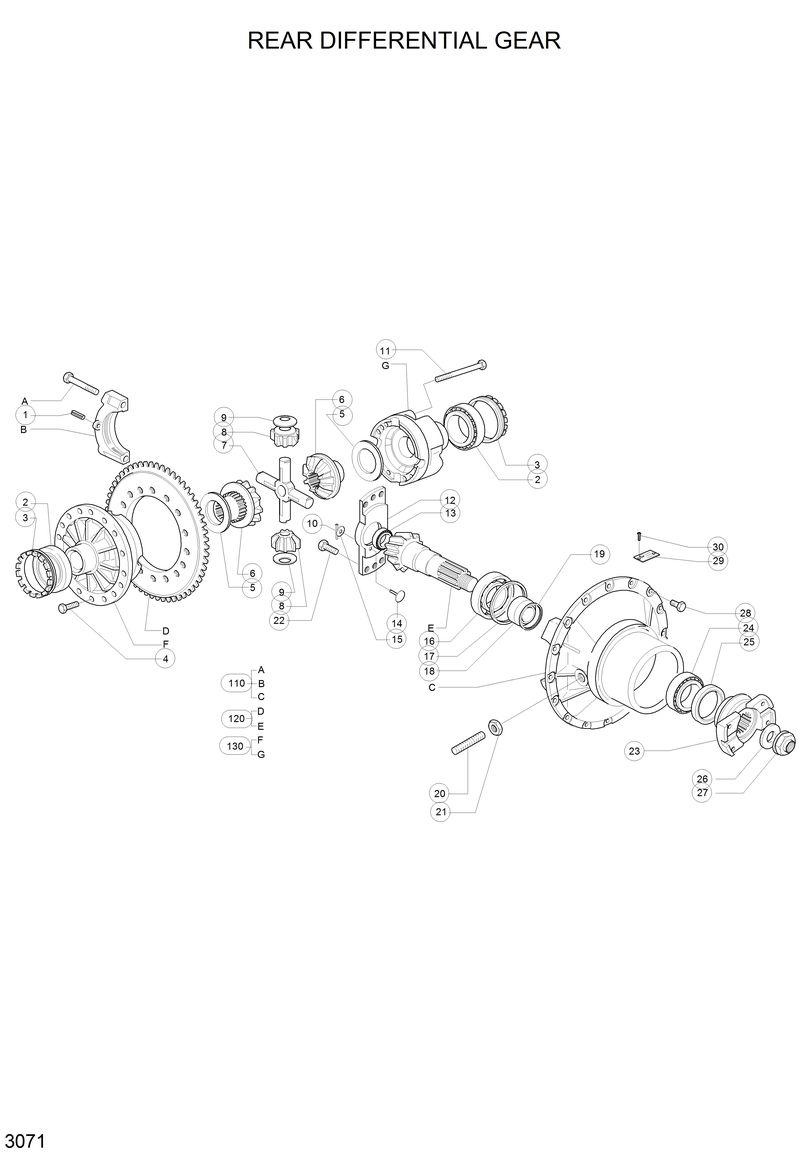

Схема запчастей Hyundai HL17C - FR & RR DIFFERENTIAL GEAR

Артикул

Название

Примечание

Количество

3120103

3120103-Shim(1.450)

3120063

3120063-Shim(1.350)

3120053

3120053-Shim(1.325)

3119943

3119943-Shim(1.050)

3119953

3119953-Shim(1.075)

3119963

3119963-Shim(1.100)

3119973

3119973-Shim(1.125)

3119983

3119983-Shim(1.150)

3119993

3119993-Shim(1.175)

3120003

3120003-Shim(1.200)

3120013

3120013-Shim(1.225)

3120023

3120023-Shim(1.250)

3120033

3120033-Shim(1.275)

3119883

3119883-Shim(4.30)

3119933

3119933-Shim(1.025)

3119923

3119923-Shim(1.000)

3119893

3119893-Shim(4.40)

3120073

3120073-Shim(1.375)

3120083

3120083-Shim(1.400)

3120093

3120093-Shim(1.425)

3119833

3119833-Shim(3.80)

3119823

3119823-Shim(3.70)

3119813

3119813-Shim(3.60)

3120043

3120043-Shim(1.300)

3119843

3119843-Shim(3.90)

3119853

3119853-Shim(4.00)

3119873

3119873-Shim(4.20)

3120113

3120113-Shim(1.475)

3120123

3120123-Shim(1.500)

3119903

3119903-Shim(4.50)

3119863

3119863-Shim(4.10)

1

70270

70270-Pin

10

70387

70387-Pin-Split

11

70268

70268-Screw

110

3130763

3130763-Support Assy

12

3119693

3119693-Beam-Connecting

120

3130903

3130903-Shaft-Bevel Gear

13

70351

70351-Bearing

130

3130893

3130893-Carrier Assy

14

3120143

3120143-Pin

15

3120133

3120133-Washer

16

70348

70348-Bearing

17

3119803

3119803-Shim(3.50)

18

3119703

3119703-Spacer

19

3119913

3119913-Shim(0.500)

2

70264051

70264051-Bearing

20

3119783

3119783-Pin

21

70009

70009-Nut

22

70269

70269-Screw

23

3212033

3212033-Flange

24

70349

70349-Bearing

25

70988

70988-Gasket

26

3100323

3100323-Washer

27

3143623

3143623-Nut

28

70322

70322-Screw

29

3163973

3163973-Plate

3

3111603

3111603-Nut-Locking

30

70287

70287-Rivet

4

70369

70369-Screw

5

3119763

3119763-Ring-Slewing

6

3119733

3119733-Gear-Sun

7

3119753

3119753-Cross

8

3119743

3119743-Gear-Planetary

9

3119773

3119773-Ring-Slewing

Выбрано товаров: 64
