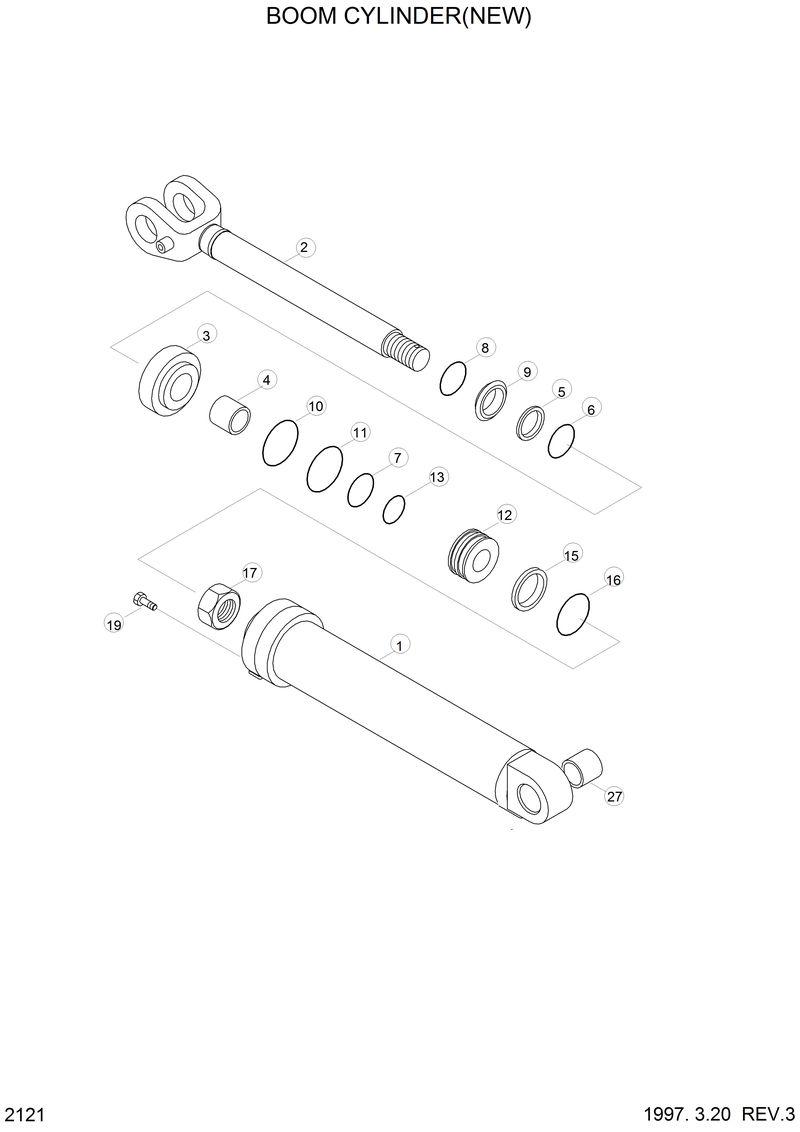

Запчасти Hyundai HL17C BOOM CYLINDER(#0298-)

31Y2-00530

31Y2-00530-. Tube Assy-Rh

31L3-03990

31L3-03990-Boom Cylinder Assy-Rh

*

31L3-03980

31L3-03980-Boom Cylinder Assy-Lh

1

31Y2-00520

31Y2-00520-. Tube Assy-Lh

12

31Y2-00620

31Y2-00620-. Piston

17

31YC-65340

31YC-65340-. Nut-Nylon

2

31Y2-00580

31Y2-00580-. Rod Assy

27

31YC-13010

31YC-13010-. Bush-Pin

3

31Y2-00610

31Y2-00610-. Gland

4

S731-070040

S731-070040-. Bushing

8

Y190-084000

Y190-084000-. Ring-Snap

K

31Y2-00630

31Y2-00630-Seal Kit

K10

S632-120001

S632-120001-. O-Ring

K11

S642-115003

S642-115003-. Ring-Back Up

K13

S632-070004

S632-070004-. O-Ring

K15

Y410-120000

Y410-120000-. Seal-Piston

K16

Y310-120000

Y310-120000-. Ring-Wear

K5

Y200-070011

Y200-070011-. Seal-Rod

K6

Y180-070020

Y180-070020-. Ring-Back Up

K7

S632-115004

S632-115004-. O-Ring

K9

Y110-070011

Y110-070011-. Wiper-Dust
