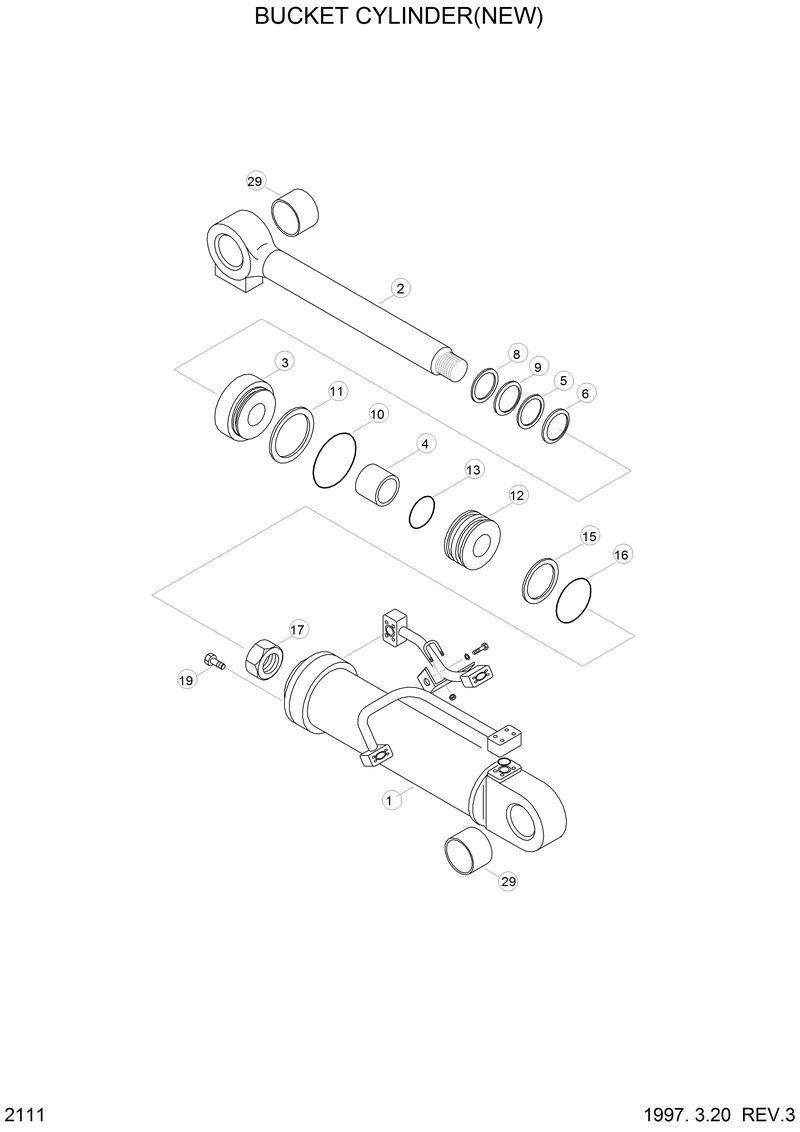

Запчасти Hyundai HL17C BUCKET CYLINDER(#0296-)

*

31L3-04000

31L3-04000-Bucket Cylinder Assy

1

31Y2-00640

31Y2-00640-. Tube Assy

12

31Y2-00740

31Y2-00740-. Piston

17

31YC-65390

31YC-65390-. Nut-Nylon

19

S019-240752

S019-240752-. Bolt-Hex

2

31Y2-00700

31Y2-00700-. Rod Assy

29

31YC-13010

31YC-13010-. Bush-Pin

3

31Y2-00730

31Y2-00730-. Gland

4

S731-070040

S731-070040-. Bushing

8

Y190-084000

Y190-084000-. Ring-Snap

K

31Y2-00750

31Y2-00750-Seal Kit

K10

S632-125004

S632-125004-. O-Ring

K11

S642-125003

S642-125003-. Ring-Back Up

K13

S632-070004

S632-070004-. O-Ring

K15

Y410-130000

Y410-130000-. Seal-Piston

K16

Y310-130100

Y310-130100-. Ring-Wear

K5

Y200-070011

Y200-070011-. Seal-Rod

K6

Y180-070020

Y180-070020-. Ring-Back Up

K9

Y110-070011

Y110-070011-. Wiper-Dust
