Запчасти Hyundai HL17C CUSHION VALVE

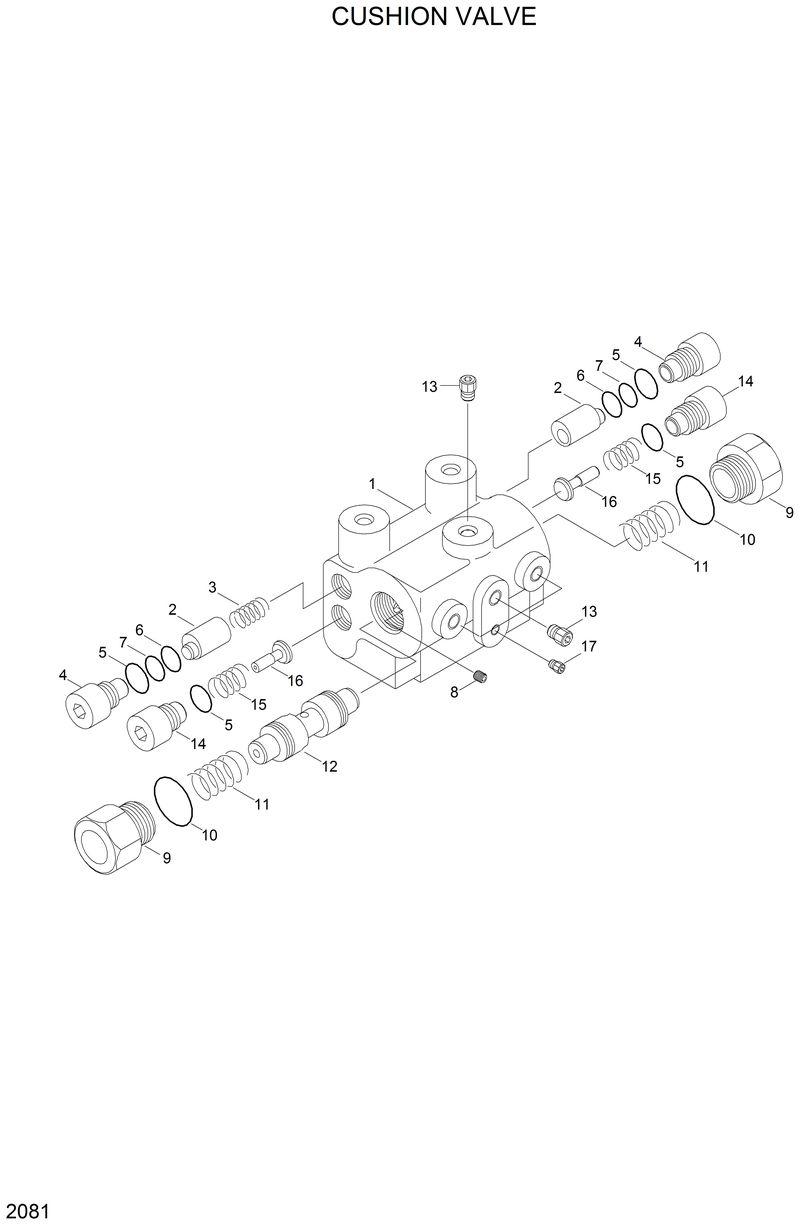

Схема запчастей Hyundai HL17C - CUSHION VALVE

Артикул

Название

Примечание

Количество

*

31L2-3004

31L2-3004-Cushion Valve

13

A45019

A45019-. Plug

15

@

@-. Spring

17

BJ0027A

BJ0027A-. Plug

4

BJ0084B

BJ0084B-. Seat-Valve

K

@

@-Ring Kit(Iten 5,6,7,10)

K10

B40001-24

B40001-24-. O-Ring

K5

A40001-14

A40001-14-. O-Ring

K6

A40001-10

A40001-10-. O-Ring

N

@

@-Not Individually Supplied

N1

BJ0081D

BJ0081D-. Housing

N11

BJ0079A

BJ0079A-. Spring

N12

BJ0077B

BJ0077B-. Spool

N14

BJ0094B

BJ0094B-. Plug

N16

BJ0096B

BJ0096B-. Poppet

N2

BJ0020B

BJ0020B-. Poppet

N3

BJ0078A

BJ0078A-. Spring

N8

BJ0083A-8

BJ0083A-8-. Orifice

N9

BJ0076B

BJ0076B-. Plug

NK7

BJ0108A-10

BJ0108A-10-. Ring-Back Up

Выбрано товаров: 20
