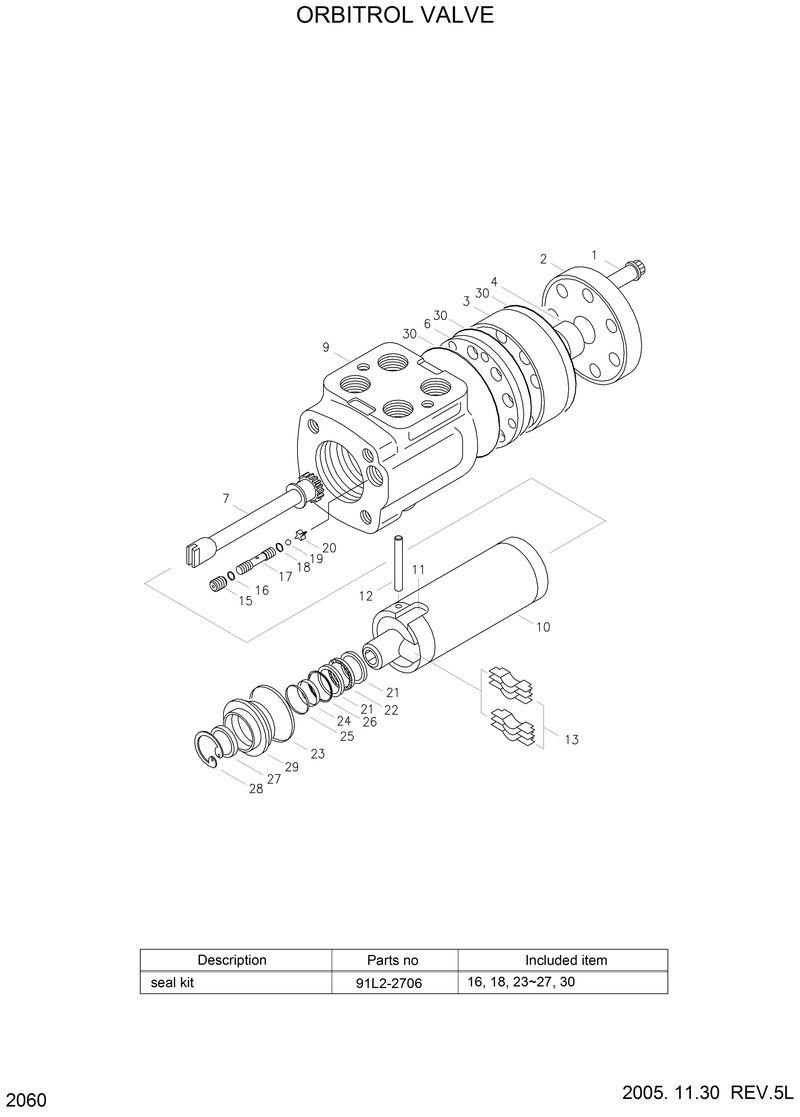

Запчасти Hyundai HL17C ORBITROL VALVE

1

5389-14

5389-14-. Screw-Cap

10

@

@-.. Sleeve

11

@

@-.. Spool

15

14380

14380-. Screw-Set

17

8318

8318-. Seat-Check Ball

19

18001

18001-. Ball-Check

2

8438S-1

8438S-1-. Cap-End

20

8862

8862-. Retainer

22

5544

5544-Bearing-Needle

3

8436-8

8436-8-. Gerotor

32

@

@-. Name Plate

33

@

@-. Rivet

4

5178

5178-. Spacer

6

7970

7970-. Plate-Spacer

7

5126

5126-. Drive

9

@

@-.. Housing

K

91L2-2706

91L2-2706-Seal Kit

K16

15007

15007-. O-Ring

K18

15006

15006-. O-Ring

K23

9092-033

9092-033-Seal

K24

14400

14400-Ring-Back Up

K27

844

844-Seal-Dust

K30

5778

5778-O-Ring

N

@

@-Not Individually Supplied

N*

31L3-0004

31L3-0004-Orbitrol Valve

N12

15

15-.. Pin

N13

370

370-.. Spring-Centering

N14

21262

21262-.. Spring

N21

8329

8329-Bearing-Race

N28

14317

14317-. Ring-Retaining

N29

8703

8703-. Bushing

N8

BL0030A

BL0030A-. Control Parts

NK26

250001-121

250001-121-O-Ring
