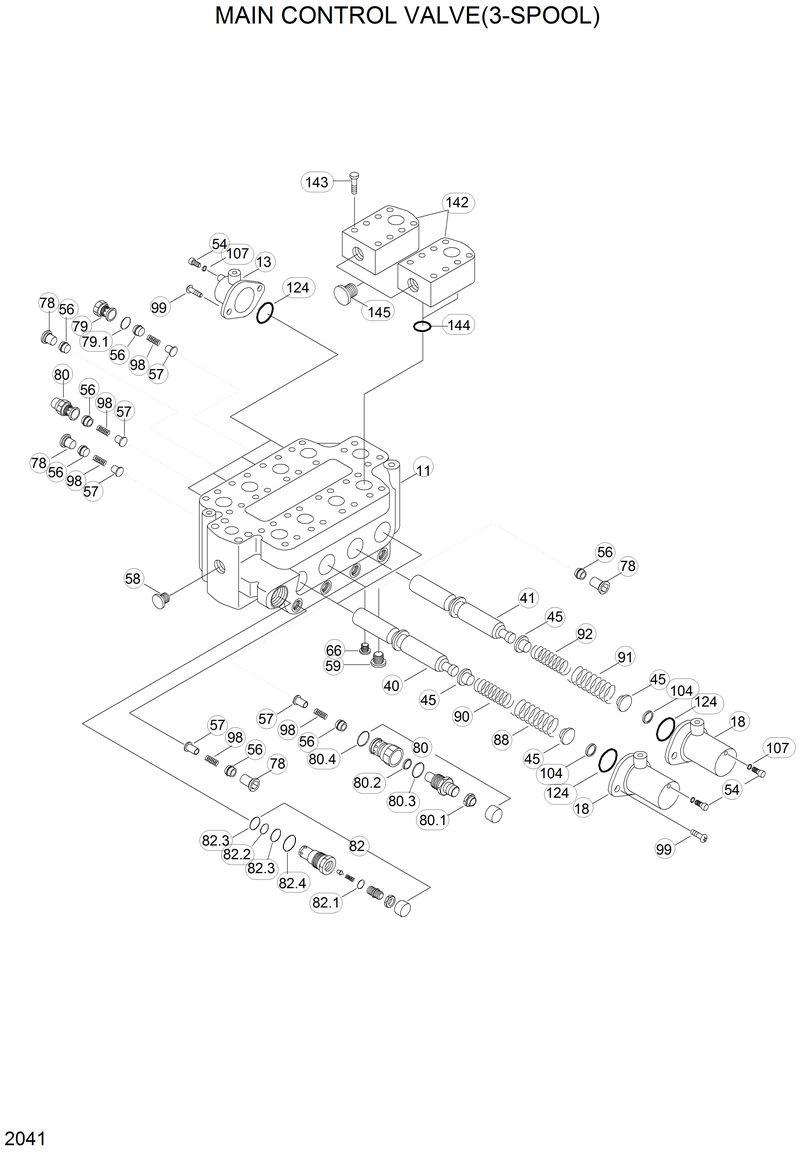

Запчасти Hyundai HL17C MAIN CONTROL VALVE(3-SPOOL)

*

31L3-0038

31L3-0038-Mcv

104

001053

001053-. Circlip

13

147028

147028-. Cover

142

642711

642711-. Plate

143

003233

003233-. Bolt

145

012431

012431-. Screw-Locking

18

147032

147032-. Cover

45

147042

147042-. Spring-Retainer

54

117640

117640-. Screw

56

146173

146173-. Screw-Locking

57

152557

152557-. Cone

58

023939

023939-. Screw-Locking

59

023938

023938-. Screw-Locking

66

023937

023937-. Screw-Locking

78

316267

316267-. Screw-Locking

79

316265

316265-. Check Valve

79.1

002140

002140-.. O-Ring

80

335868

335868-. Valve-P/Relief

82

304674

304674-. Main Relief Valve

88

001684

001684-. Spring-Compression

90

017674

017674-. Spring-Compression

91

017792

017792-. Spring-Compression

92

017793

017793-. Spring-Compression

98

011238

011238-. Spring-Compression

99

003019

003019-. Screw-Bleed

K

309549.

309549.-Seal Kit

K

309625.

309625.-Seal Kit

K

309626.

309626.-Seal Kit

K107

@

@-. Ring-Seal

K144

@

@-. O-Ring

K144

@

@-. O-Ring

K80.1

@

@-.. Seal-Lock Nut

K80.2

@

@-.. Seal-Piston

K82.3

@

@-.. Ring-Thrust

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

K82.4

@

@-.. O-Ring

N

@

@-Not Individually Supplied

N11

@

@-. Housing

N41

@

@-. Spool

N41

@

@-. Spool
