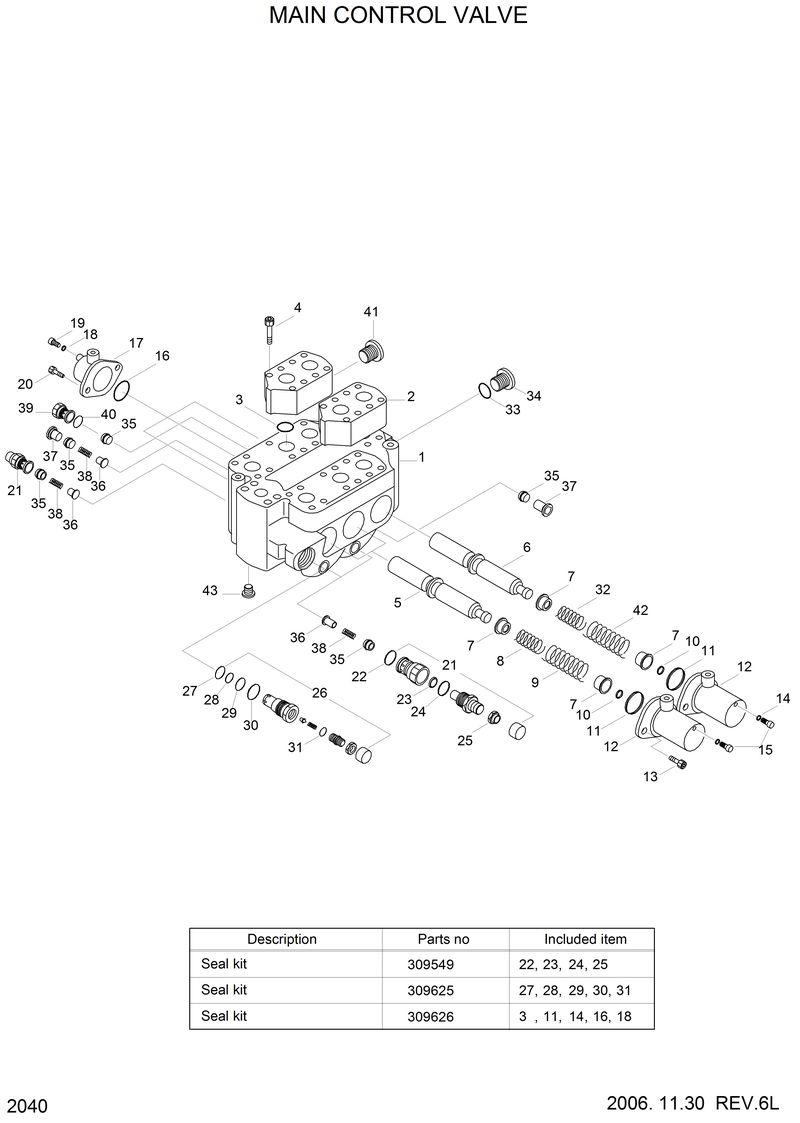

Запчасти Hyundai HL17C MAIN CONTROL VALVE

*

31L3-0002

31L3-0002-Mcv

10

001053

001053-. Circlip

12

147031

147031-. Cover-Long

17

148417

148417-. Cover-Short

19

117640

117640-. Screw

19

117640

117640-. Screw

2

642711

642711-. Plate

20

003019

003019-. Screw-Bleed

20

003019

003019-. Screw-Bleed

21

335868

335868-. Valve-P/Relief

26

304674

304674-. Main Relief Valve

32

017793

017793-. Spring-Compression

33

004305

004305-. O-Ring

34

131015

131015-. Plug-Screw

35

316267

316267-. Screw-Locking

36

152557

152557-. Cone

37

146173

146173-. Screw-Locking

38

011238

011238-. Spring-Compression

39

316265

316265-. Check Valve

4

003233

003233-. Bolt

41

012431

012431-. Screw-Locking

42

017792

017792-. Spring-Compression

43

003938

003938-. Screw-Locking

7

147042

147042-. Spring-Retainer

8

017674

017674-. Spring-Compression

9

001684

001684-. Spring-Compression

K

309625

309625-Seal Kit

K

309626

309626-Seal Kit

K

309549

309549-Seal Kit

K16

@

@-. O-Ring

K16

@

@-. O-Ring

K16

@

@-. O-Ring

K18

@

@-. Ring-Seal

K18

@

@-. Ring-Seal

K23

@

@-.. Ring-Seal

K25

@

@-.. Nut

K29

@

@-.. Ring-Back Up

K29

@

@-.. Ring-Back Up

K31

@

@-.. O-Ring

K31

@

@-.. O-Ring

K31

@

@-.. O-Ring

K31

@

@-.. O-Ring

K31

@

@-.. O-Ring

N

@

@-Not Individually Supplied

N1

@

@-. Housing

N40

002410

002410-. O-Ring

N6

@

@-. Spool

N6

@

@-. Spool
