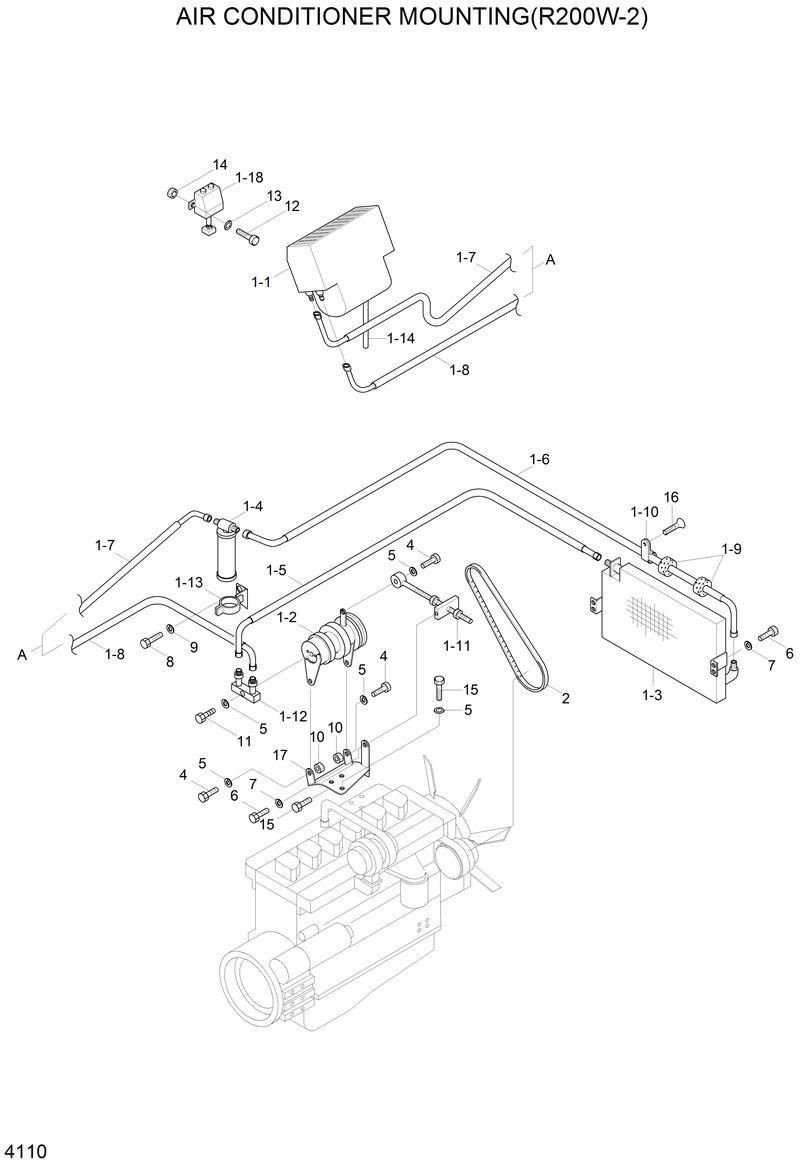

Запчасти Hyundai R200W2 AIR CONDITIONER MOUNTING(R200W-2)

1-1

11EK-35010

11EK-35010-. Cooling Unit Assy

1-1-1

C34063E1

C34063E1-.. Expansion V/V

1-10

E127-3153

E127-3153-. Clamp-Hose

1-11

12E1-3511

12E1-3511-. Adjuster

1-12

11EK-35090

11EK-35090-. Joint Assy-Comp

1-13

12E1-3513

12E1-3513-. Bracket-R/Dryer

1-14

12E1-3514

12E1-3514-. Hose-Drain

1-18

12E1-3518

12E1-3518-. Switch Assy

1-2

11EK-35020

11EK-35020-. Compressor Assy

1-3

11EK-35030

11EK-35030-. Condenser Assy

1-4

11EK-35040

11EK-35040-. Receiver Dryer

1-5

11EK-35050

11EK-35050-. Hose Assy-Discharge

1-6

11EK-35060

11EK-35060-. Hose Assy-Liquid(A)

1-7

11EK-35070

11EK-35070-. Hose Assy-Liquid(B)

1-8

11EK-35080

11EK-35080-. Hose Assy-Suction

1-9

E127-3152

E127-3152-. Cushion

10

S201-051002

S201-051002-Nut-Hex

11

S017-100252

S017-100252-Bolt-Hex

12

S015-060152

S015-060152-Bolt-Hex

13

S411-060002

S411-060002-Washer-Spring

14

S201-061002

S201-061002-Nut-Hex

15

S017-100302

S017-100302-Bolt-Hex

16

S151-050202

S151-050202-Screw

17

11EM-93012

11EM-93012-Bracket-Comp Mount

2

12E1-3509

12E1-3509-V-Belt

4

S017-100352

S017-100352-Bolt-Hex

5

S411-100002

S411-100002-Washer-Spring

6

S015-080202

S015-080202-Bolt-Hex

7

S411-080002

S411-080002-Washer-Spring

8

S015-050102

S015-050102-Bolt-Hex

9

S411-050002

S411-050002-Washer-Spring

N1

12E4-36010

12E4-36010-Aircon Assy-R134a
