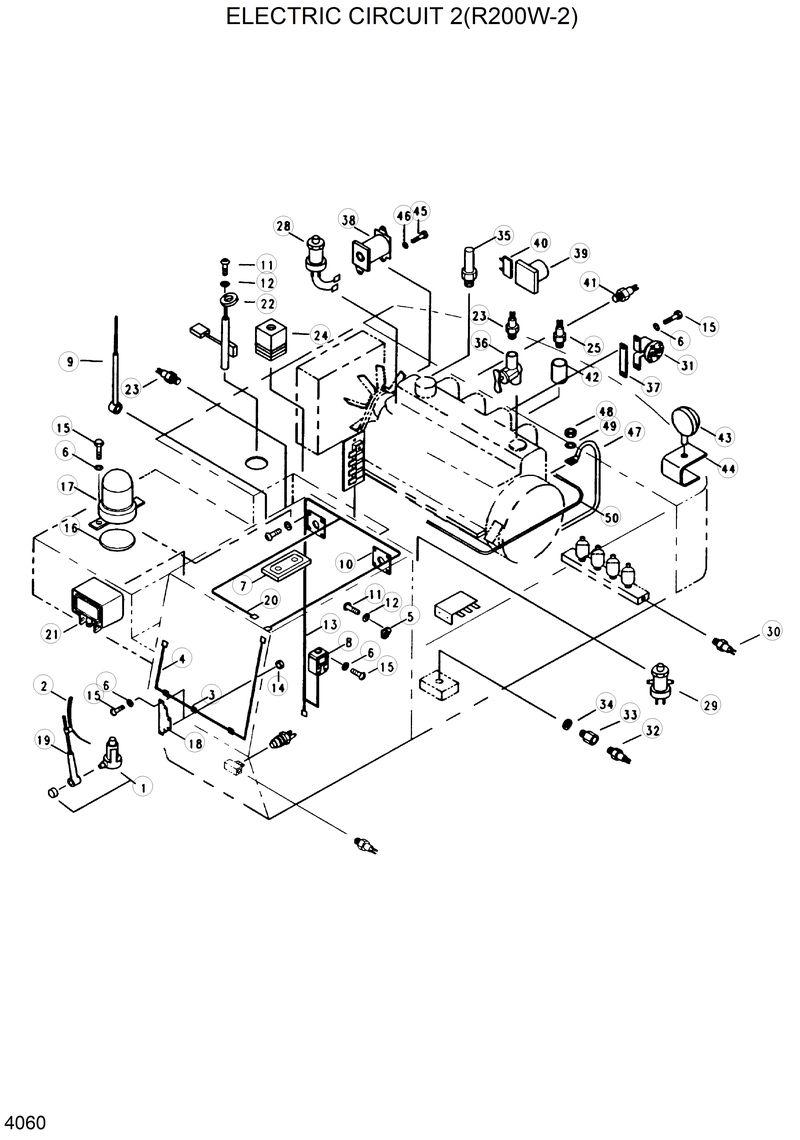

Запчасти Hyundai R200W2 ELECTRICAL CIRCUIT 2(R200W-2)

21EH-0012

21EH-0012-Bracket

21EL-00160

21EL-00160-Tank-Washer

21EH-1003

21EH-1003-Harness-Cab

21EA-10220

21EA-10220-Bracket-Beacon Lamp

21E3-5003

21E3-5003-Switch-Temp

21E6-40011

21E6-40011-Alternator Assy

21L3-00501

21L3-00501-Adapter

21E6-40030

21E6-40030-Alternator Assy

21E1-21130

21E1-21130-. Liner

21EA-30360

21EA-30360-. Spacer

11E9-60010

11E9-60010-Motor-Governor

1

21E7-3002

21E7-3002-Wiper Motor Assy

10

E126-3028

E126-3028-Speaker

11

S161-050152

S161-050152-Screw

12

S411-050002

S411-050002-Washer-Spring

13

21E1-4999

21E1-4999-Harness-Cab

14

S205-061002

S205-061002-Nut-Hex

15

S015-060152

S015-060152-Bolt-Hex

16

21E4-4032

21E4-4032-Plate-Rotary Lamp

17

21EK-10420

21EK-10420-Beacon Lamp Assy

17

21E4-4022

21E4-4022-Rotary Lamp

17-1

21E1-49600

21E1-49600-. Bulb-Rotary Lamp

17-2

21EK-10330

21EK-10330-. Bulb

18

71E3-6052

71E3-6052-Bracket-Wiper Motor

19

21E7-3004

21E7-3004-Arm-Wiper

2

21E7-3003

21E7-3003-Blade-Wiper

20

21E1-4998

21E1-4998-Harness-Cab

21

21E1-4997

21E1-4997-Light Assy

21-1

21E1-49630

21E1-49630-. Bulb-Cab Lamp

22

21E1-4000

21E1-4000-Sender-Fuel

23

21E3-0029

21E3-0029-Sendor-Hyd Temp

24

E128-0054

E128-0054-Tank-Reservoir

24

11EM-40070

11EM-40070-Tank-Reservoir

24-1

E128-1054

E128-1054-. Cap-Reservoir Tank

24-1

11EM-40070-K

11EM-40070-K-. Cap-Reservoir Tank

24-2

E128-0070

E128-0070-. Sensor-Reservior

24-2

11EM-40140

11EM-40140-. Sensor Assy-Reservoir

25

E123-5002

E123-5002-Sw-Water Temp

25

E123-5002

E123-5002-Sw-Water Temp

28

E128-0059

E128-0059-Switch-Air Cleaner

29

21E4-0015

21E4-0015-Switch-Pressure

3

E127-3133

E127-3133-Holder-Cable Tie

30

31L1-0095

31L1-0095-Switch-Pressure

31

E225-0004

E225-0004-Relay-Start

32

21E3-0014

21E3-0014-Switch-Pressure

33

21E4-3009

21E4-3009-Adapter

34

31E4-3086

31E4-3086-Washer-Copper

35

21E3-0042

21E3-0042-Sensor-Speed

36

21E1-49910

21E1-49910-Adapter

37

21E1-49900

21E1-49900-Bracket-Start Relay

38

21EA-00040

21EA-00040-Alternator Assy

39

21E5-3003

21E5-3003-Motor-Governor

4

21E7-0208

21E7-0208-Harness-Wiper Motor

40

21E7-0612

21E7-0612-Plate-Connector

41

21E3-5001

21E3-5001-Switch-Eng Oil Press

42

21L3-00500

21L3-00500-Adapter-Oil Temp

43

22L1-2001

22L1-2001-Fog Lamp

44

21E4-4016

21E4-4016-Bracket

45

S016-120252

S016-120252-Bolt-Hex

46

S411-120001

S411-120001-Washer-Spring

47

21E4-1009

21E4-1009-Cable-Earth

48

S207-101002

S207-101002-Nut-Hex

49

S411-100002

S411-100002-Washer-Spring

5

E123-3022

E123-3022-Switch-Door

50

21E4-0055

21E4-0055-Harness-Engine(2)

6

S411-060002

S411-060002-Washer-Spring

7

E122-2510

E122-2510-Lamp-Room

7-1

21E1-49690

21E1-49690-. Bulb-Room Lamp

8

E127-3063

E127-3063-Tank-Washer

9

E126-3027

E126-3027-Antenna

N29

31EM-30550

31EM-30550-Switch-Pressure
