Запчасти Hyundai R200W2 ELECTRICAL CIRCUIT 2(R200W)

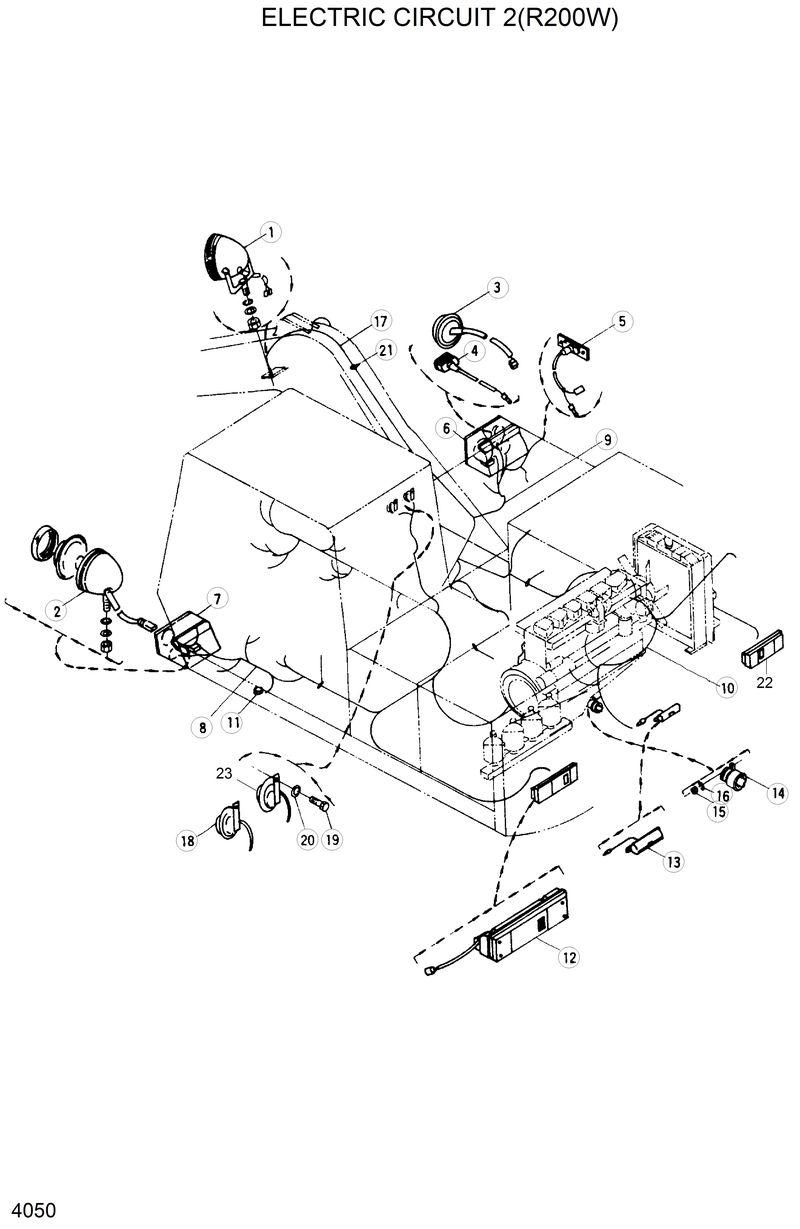

Схема запчастей Hyundai R200W2 - ELECTRICAL CIRCUIT 2(R200W)

Артикул

Название

Примечание

Количество

21E4-1003

21E4-1003-Harness-Main

21E4-1003

21E4-1003-Harness-Main

21E4-1003

21E4-1003-Harness-Main

21E4-1003

21E4-1003-Harness-Main

21E4-1005

21E4-1005-Harness-Engine

21E4-1005

21E4-1005-Harness-Engine

21E4-1003

21E4-1003-Harness-Main

1

21E1-2056

21E1-2056-Work Light Assy

11

S201-101002

S201-101002-Nut-Hex

12

21E4-2017

21E4-2017-Lamp-Rear Comb,Lh

13

21E4-2018

21E4-2018-Lamp-Licence

13-1

21E1-49610

21E1-49610-. Bulb

14

21E4-2003

21E4-2003-Buzzer-Travel Alarm

15

S205-062002

S205-062002-Nut-Hex

16

S411-060002

S411-060002-Washer-Spring

17

E121-0502

E121-0502-Harness-Boom Light

18

E126-2024

E126-2024-Horn-Low

19

S015-080152

S015-080152-Bolt-Hex

2

21E1-2055

21E1-2055-Head Light Assy

2-1

21E1-49590

21E1-49590-. Bulb-Side Marker

20

S411-080002

S411-080002-Washer-Spring

21

S551-020102

S551-020102-Clamp-Band

22

21E4-2016

21E4-2016-Lamp-Rear Comb,Rh

22-1

21E1-49560

21E1-49560-. Bulb-Rear Combi Lamp

22-1

21E1-49560

21E1-49560-. Bulb-Rear Combi Lamp

22-2

21E1-49570

21E1-49570-. Bulb-Clearance Lamp

22-2

21E1-49570

21E1-49570-. Bulb-Clearance Lamp

22-2

21E1-49570

21E1-49570-. Bulb-Clearance Lamp

22-2

21E1-49570

21E1-49570-. Bulb-Clearance Lamp

22-3

21E1-49580

21E1-49580-. Bulb-Turn Lamp

22-3

21E1-49580

21E1-49580-. Bulb-Turn Lamp

23

E126-2025

E126-2025-Horn-High

3

21E4-2021

21E4-2021-Lamp Assy-Turn

4

21E4-2023

21E4-2023-Clearance Lamp Assy

5

21E4-2020

21E4-2020-Side Marker Assy

6

21E3-1021

21E3-1021-Guard-Rh Front Lamp

7

21E3-1027

21E3-1027-Guard-Lh,Front Lamp

9

21E4-1004

21E4-1004-Harness-Rh

Выбрано товаров: 38
