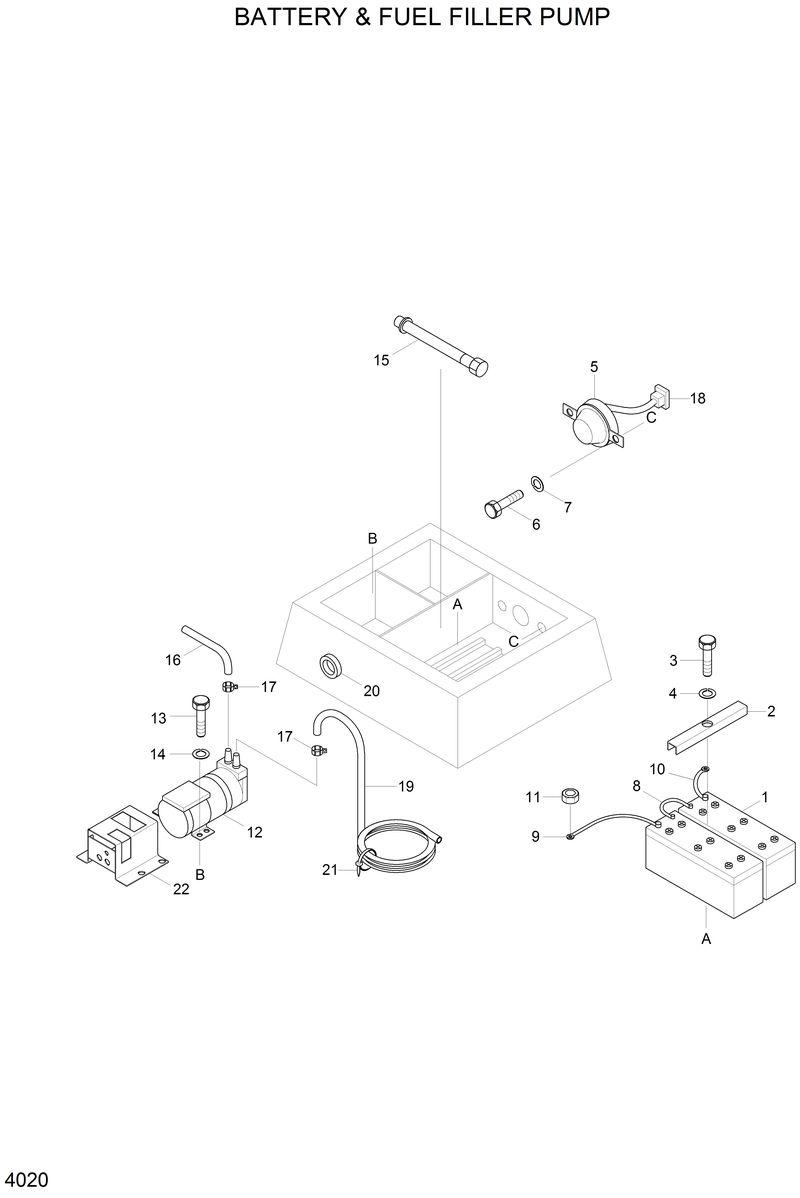

Запчасти Hyundai R200W2 BATTERY & FUEL FILLER PUMP

24E7-30070

24E7-30070-Fuel Filler Pump Assy

21E5-0003

21E5-0003-Relay-Battery

21E2-60410

21E2-60410-Cable(Batt-Batt)

21E2-60200

21E2-60200-Cable(Batt-Batt Ry)

E127-5005

E127-5005-Hose-Inlet

21EA-40170

21EA-40170-Link-Fusible

21E4-1084

21E4-1084-Fusible Link

21E4-4002

21E4-4002-Outlet Hose

1

E125-1501

E125-1501-Battery Assy

10

21E4-1016

21E4-1016-Cable(Batt-Earth)

11

S205-081002

S205-081002-Nut-Hex

12

21E4-3007

21E4-3007-Fuel Filler Pump Assy

13

S161-040152

S161-040152-Screw

14

S411-040002

S411-040002-Washer-Spring

15

21E4-3010

21E4-3010-Pipe Assy

16

21E4-4020

21E4-4020-Hose-Outlet

17

S520-017000

S520-017000-Clamp-Hose

18

21E3-1019

21E3-1019-Fusible Link

19

21E4-4019

21E4-4019-Hose Assy

2

21E3-1012

21E3-1012-Bracket-Battery

20

S681-410400

S681-410400-Grommet

21

E127-3158

E127-3158-Band-Fuel Pump

22

21E8-10600

21E8-10600-Cover-F/F Pump

3

S017-102652

S017-102652-Bolt-Hex

4

S411-100002

S411-100002-Washer-Spring

5

E122-1502

E122-1502-Relay-Battery

6

S015-080252

S015-080252-Bolt-Hex

7

S411-080002

S411-080002-Washer-Spring

8

21E4-1014

21E4-1014-Cable-Battery

9

21E4-2013

21E4-2013-Cable-Batterty Relay

N19

21E6-20180

21E6-20180-Hose-Suction
