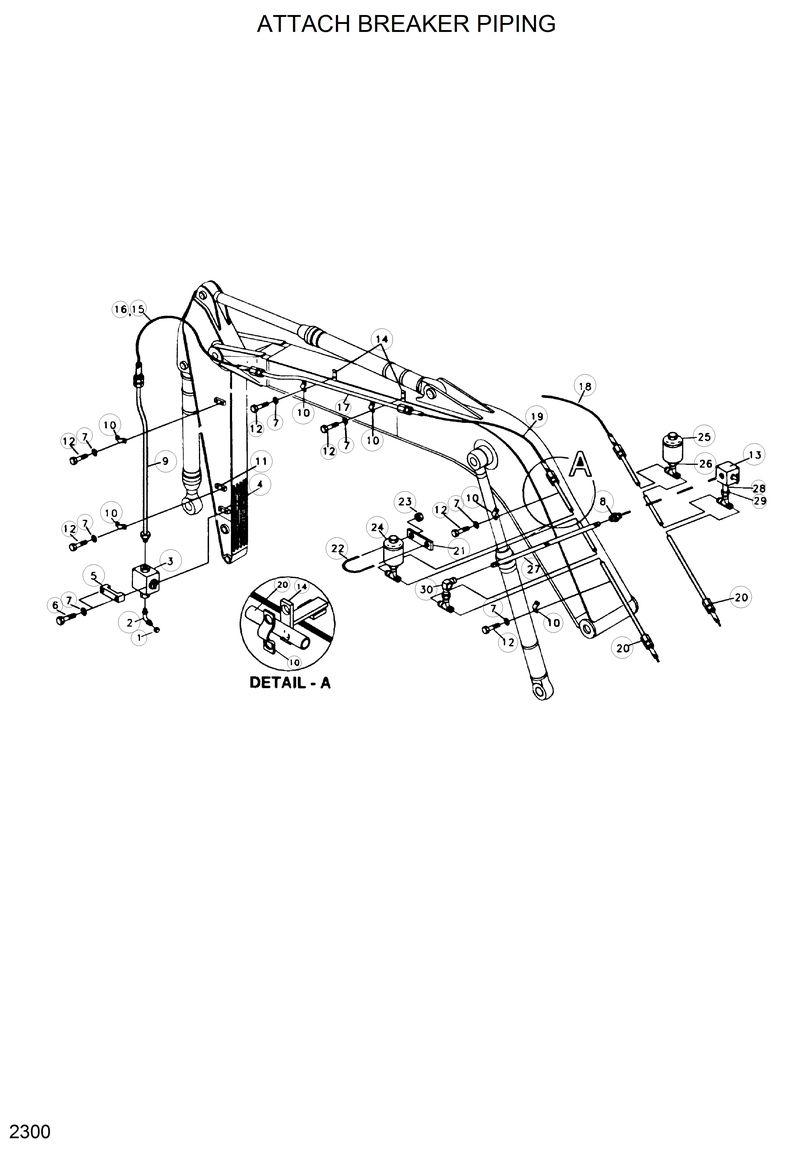

Запчасти Hyundai R200W2 ATTACH BREAKER PIPING

1

004001-25000

004001-25000-Cap-Union

10

010001-25000

010001-25000-Clamp

11

011001-25000

011001-25000-Plate

12

013001-12025

013001-12025-Bolt

13

008004-19210

008004-19210-Relief Valve

14

011001-25B10

011001-25B10-Plate

16

002031-25125

002031-25125-Hose

16

002031-25125

002031-25125-Hose

17

001002-25030

001002-25030-Pipe

19

002031-25110

002031-25110-Hose

19

002031-25110

002031-25110-Hose

2

004004-25025

004004-25025-45 Elbow Adapter

20

001004-25013

001004-25013-Pipe

21

012001-07000

012001-07000-Bracket-Accum

22

013003-09015

013003-09015-U-Bolt

23

014002-09000

014002-09000-Nut

24

009001-07210

009001-07210-Line Accumulator

25

009001-07140

009001-07140-Line Accumulator

26

004008-25A18

004008-25A18-Connector

27

002031-19110

002031-19110-Hose

28

004009-25019

004009-25019-Bush

29

004010-19019

004010-19019-Nipple

3

003001-25000

003001-25000-Valve-Stop

30

004003-19019

004003-19019-90 Elbow Adapter

4

010002-25000

010002-25000-Plate

5

010003-25000

010003-25000-Clamp

6

013001-12075

013001-12075-Bolt

7

015001-12000

015001-12000-Washer-Spring

8

004002-19019

004002-19019-Male Adapter

9

001001-25015

001001-25015-Pipe
