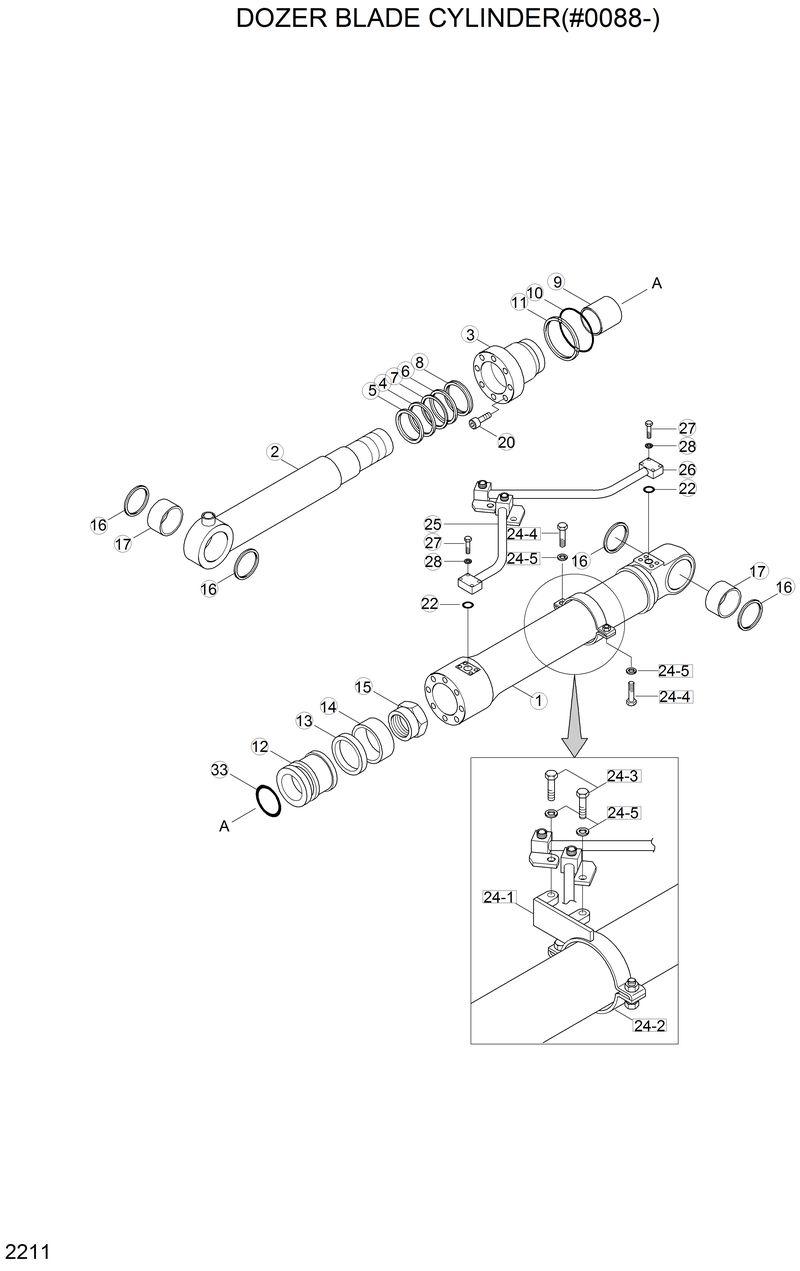

Запчасти Hyundai R200W2 DOZER BLADE CYLINDER(#0088-)

31Y1-05770

31Y1-05770-. Pipe Assy-R,Rh

31E4-00940

31E4-00940-Dozer Blade Cyl-Rh

31Y1-05730

31Y1-05730-. Band Assy-Rh

31Y1-05750

31Y1-05750-.. Band Sub Assy-Rh

31Y1-05790

31Y1-05790-. Pipe Assy-B,Rh

*

31E4-00930

31E4-00930-Dozer Blade Cyl-Lh

*-1

31E4-75010

31E4-75010-. D/Blade Cyl Sub Assy

1

31Y1-05620

31Y1-05620-.. Tube Assy

12

31Y1-05710

31Y1-05710-.. Piston

15

31YC-65430

31YC-65430-.. Nut-Nylon

17

31YC-19130

31YC-19130-.. Bushing-Pin

2

31Y1-05670

31Y1-05670-.. Rod Assy

20

S109-160604

S109-160604-.. Bolt-Socket

24

31Y1-05720

31Y1-05720-. Band Assy-Lh

24-1

31Y1-05740

31Y1-05740-.. Band Sub Assy-Lh

24-2

31YC-31110

31YC-31110-.. Band

24-3

S011-100352

S011-100352-.. Bolt-Hex

24-4

S011-100202

S011-100202-.. Bolt-Hex

24-5

S411-100002

S411-100002-.. Washer-Spring

25

31Y1-05760

31Y1-05760-. Pipe Assy-R,Lh

26

31Y1-05780

31Y1-05780-. Pipe Assy-B,Lh

27

S015-080602

S015-080602-. Bolt-Hex

28

S411-080002

S411-080002-. Washer-Spring

3

31Y1-05700

31Y1-05700-.. Gland

9

S731-085040

S731-085040-.. Bushing-Du

K

31Y1-05800

31Y1-05800-. Seal Kit(4-8,10,11,13,

K10

S631-110004

S631-110004-.. O-Ring

K11

S641-110003

S641-110003-.. Ring-Back Up

K13

Y420-120000

Y420-120000-.. Seal-Piston

K14

Y310-120100

Y310-120100-.. Ring-Wear

K16

Y010-070085

Y010-070085-.. Seal-Dust

K22

S631-026004

S631-026004-. O-Ring

K33

S631-060004

S631-060004-.. O-Ring

K4

Y190-099000

Y190-099000-.. Ring-Snap

K5

Y110-085011

Y110-085011-.. Wiper-Dust

K6

Y200-085011

Y200-085011-.. Seal-Rod

K7

Y180-085020

Y180-085020-.. Ring-Back Up

K8

Y240-085011

Y240-085011-.. Ring-Buffer
