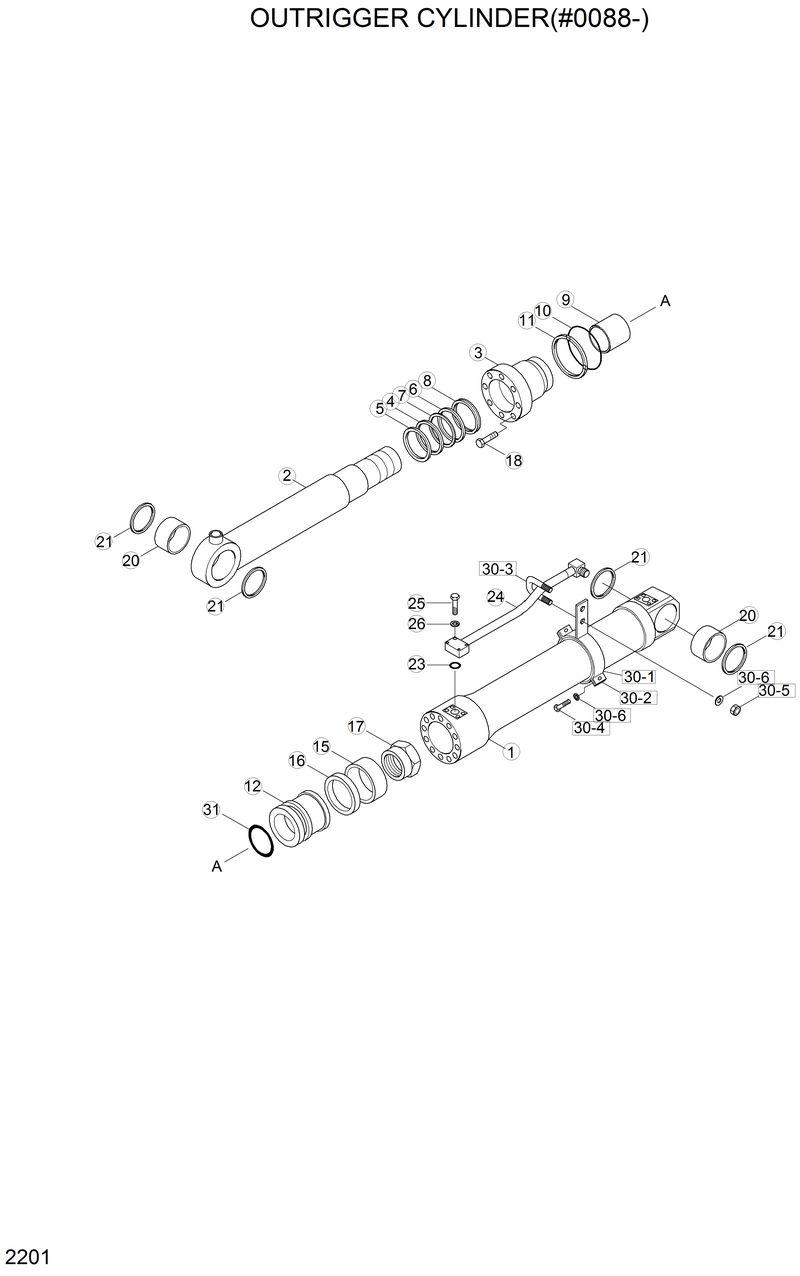

Запчасти Hyundai R200W2 OUTRIGGER CYLINDER(#0088-)

31E4-00920

31E4-00920-Outrigger Cylinder-Rh

31Y1-05940

31Y1-05940-. Pipe Assy-R,Rh

*

31E4-00910

31E4-00910-Outrigger Cylinder-Lh

*-1

31E4-75020

31E4-75020-. Outrigger Cyl Sub Assy

1

31Y1-05810

31Y1-05810-.. Tube Assy

12

31Y1-05900

31Y1-05900-.. Piston

17

31YC-65390

31YC-65390-.. Nut-Nylon

18

S017-160602

S017-160602-.. Bolt-Hex

2

31Y1-05860

31Y1-05860-.. Rod Assy

20

31YC-12090

31YC-12090-.. Bushing-Pin

24

31Y1-05930

31Y1-05930-. Pipe Assy-R,Lh

25

S015-080602

S015-080602-. Bolt-Hex

26

S411-080002

S411-080002-. Washer-Spring

3

31Y1-05890

31Y1-05890-.. Gland

30

31Y1-05910

31Y1-05910-. Band Assy

30-1

31Y1-05920

31Y1-05920-.. Band Sub Assy

30-2

31YC-31130

31YC-31130-.. Band

30-3

S017-022230

S017-022230-.. U-Bolt

30-4

S011-100352

S011-100352-.. Bolt-Hex

30-5

S201-101002

S201-101002-.. Nut-Hex

30-6

S411-100002

S411-100002-.. Washer-Spring

5

Y190-094000

Y190-094000-.. Ring-Snap

9

S731-080040

S731-080040-.. Bushing-Du

K

31Y1-080095

31Y1-080095-. Seal Kit(4-8,10,11,15,

K10

S631-120004

S631-120004-.. O-Ring

K11

S641-120003

S641-120003-.. Ring-Back Up

K15

Y310-130100

Y310-130100-.. Ring-Wear

K16

Y420-130000

Y420-130000-.. Seal-Piston

K21

Y010-080095

Y010-080095-.. Seal-Dust

K23

S631-026004

S631-026004-. O-Ring

K31

S631-055004

S631-055004-.. O-Ring

K4

Y110-080011

Y110-080011-.. Wiper-Dust

K6

Y200-080011

Y200-080011-.. Seal-Rod

K7

Y180-080020

Y180-080020-.. Ring-Back Up

K8

Y240-080011

Y240-080011-.. Ring-Buffer
