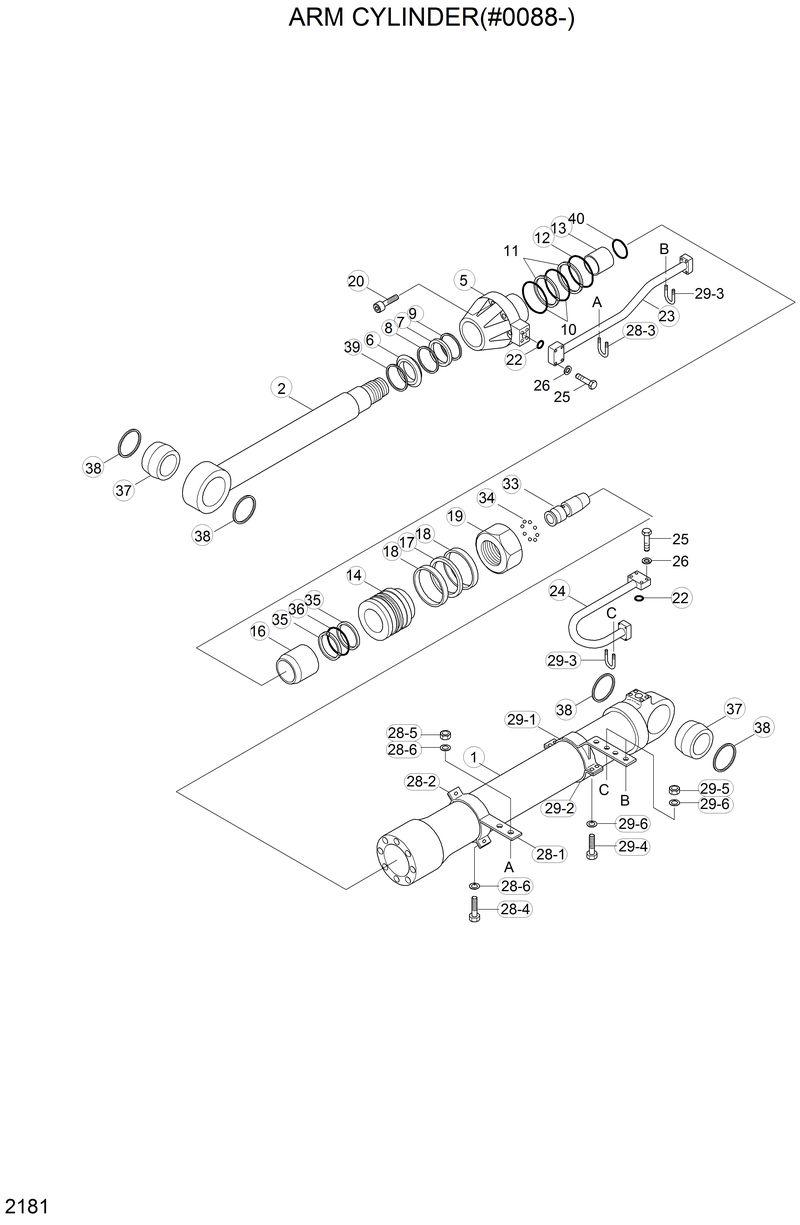

Запчасти Hyundai R200W2 ARM CYLINDER(#0088-)
№
Артикул
Название
Примечание
Количество
S641-130003
S641-130003-.. Ring-Back Up
31YC-11101
31YC-11101-.. Bushing-Pin
31E1-50231
31E1-50231-Cylinder-Arm
*-1
31E1-55030
31E1-55030-. Arm Cyl Sub Assy
1
31Y1-05270
31Y1-05270-.. Tube Assy
14
31Y1-05360
31Y1-05360-.. Piston
15
31YC-29110
31YC-29110-.. Spear-Cushion
16
31YC-22030
31YC-22030-.. Ring-Cushion
19
31YC-65510
31YC-65510-.. Nut-Nylon
2
31Y1-05320
31Y1-05320-.. Rod Assy
20
S109-160604
S109-160604-.. Bolt-Socket
23
31Y1-05420
31Y1-05420-. Pipe Assy-R
24
31Y1-05430
31Y1-05430-. Pipe Assy-B
25
S017-100652
S017-100652-. Bolt-Hex
26
S411-100002
S411-100002-. Washer-Spring
28
31Y1-05370
31Y1-05370-. Band Assy
28-1
31Y1-05380
31Y1-05380-.. Band Sub Assy
28-2
31YC-31150
31YC-31150-.. Band
29
31Y1-05390
31Y1-05390-. Band Assy
29-1
31Y1-05400
31Y1-05400-.. Band Sub Assy
29-2
31YC-32060
31YC-32060-.. Band
29-3
S071-023430
S071-023430-.. U-Bolt
29-3
S071-023430
S071-023430-.. U-Bolt
29-4
S011-100352
S011-100352-.. Bolt-Hex
29-4
S011-100352
S011-100352-.. Bolt-Hex
29-5
S201-101002
S201-101002-.. Nut-Hex
29-5
S201-101002
S201-101002-.. Nut-Hex
29-6
S411-100002
S411-100002-.. Washer-Spring
29-6
S411-100002
S411-100002-.. Washer-Spring
3
31YC-11100
31YC-11100-.. Bushing-Pin
37
Y890-015011
Y890-015011-.. Ball-Steel
39
Y190-109000
Y190-109000-.. Ring-Snap
40
Y191-102000
Y191-102000-.. Ring-Snap
5
31Y1-05350
31Y1-05350-.. Gland
K10
S631-130004
S631-130004-.. O-Ring
K11
S641-130002
S641-130002-.. Ring-Back Up
K17
Y420-140000
Y420-140000-.. Seal-Piston
K18
Y310-140000
Y310-140000-.. Ring-Wear
K22
S631-032004
S631-032004-. O-Ring
K36
S632-070004
S632-070004-.. O-Ring
K6
Y110-095011
Y110-095011-.. Wiper-Dust
K7
Y200-095011
Y200-095011-.. Seal-Rod
K8
Y180-095020
Y180-095020-.. Ring-Back Up
K9
Y240-095011
Y240-095011-.. Ring-Buffer
N*
31E1-50230
31E1-50230-Arm-Cylinder
N*-1
31E1-55031
31E1-55031-. Arm Cyl Sub Assy
Выбрано товаров: 51
