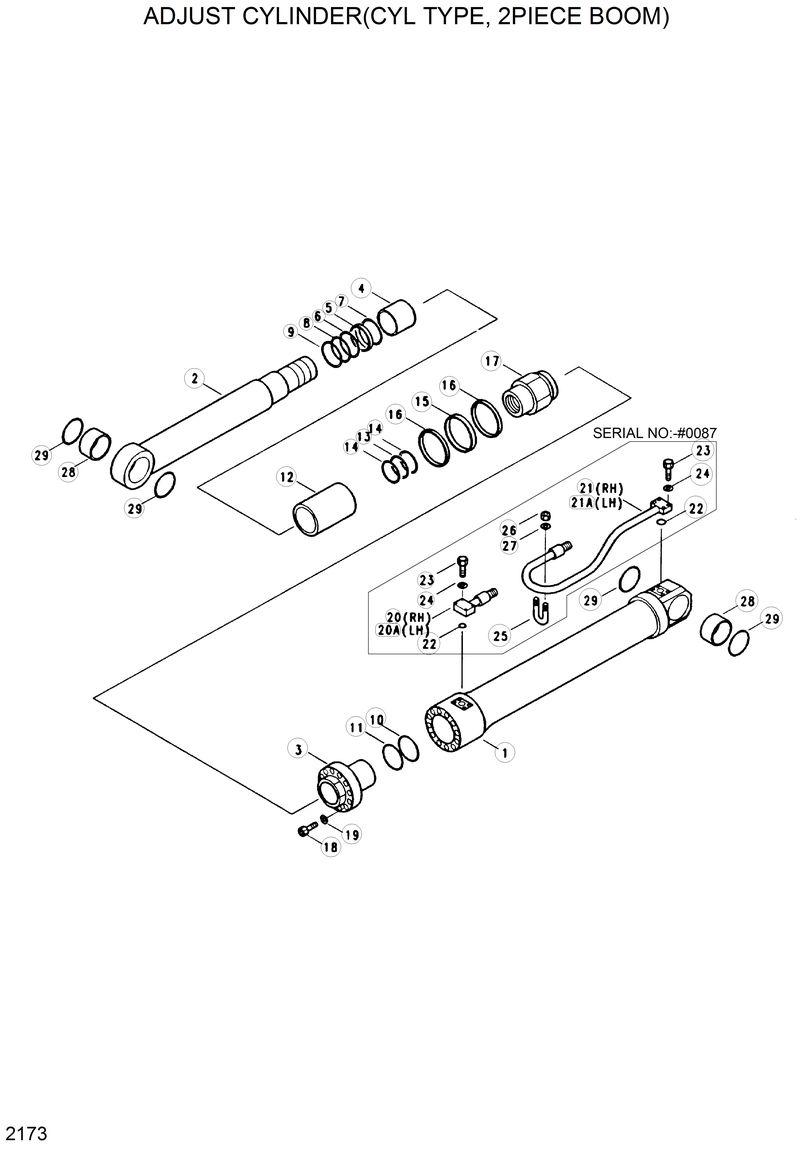

Запчасти Hyundai R200W2 ADJUST CYLINDER(CYL TYPE 2 PIECE BOOM)

31E4-00471

31E4-00471-Adjust Cyl(2pcs)-Rh

31E4-00472

31E4-00472-Adjust Cyl(2pcs)-Rh,Lh

31E4-00480

31E4-00480-Adjust Cyl(2pcs)-Lh

31YC-11111

31YC-11111-. Bushing-Pin

S732-085040

S732-085040-. Bushing

*

31E4-00470

31E4-00470-Adjust Cyl(2pcs)-Rh

1

31Y1-06270

31Y1-06270-. Tube Assy

12

31Y1-05190

31Y1-05190-. Piston

17

31YC-65430

31YC-65430-. Nut-Nylon

18

S109-140604

S109-140604-. Bolt-Hex

19

S411-140002

S411-140002-. Washer-Spring

2

31Y1-06320

31Y1-06320-. Rod Assy

20

31Y1-06370

31Y1-06370-. Pipe Assy-R(Rh)

20A

31Y1-06360

31Y1-06360-. Pipe Assy-R(Lh)

21

31Y1-06390

31Y1-06390-. Pipe Assy-B(Rh)

21A

31Y1-06380

31Y1-06380-. Pipe Assy-B(Lh)

23

S017-100602

S017-100602-. Bolt-Hex

25

S071-022730

S071-022730-. U-Bolt

26

S201-101002

S201-101002-. Nut-Hex

27

S411-100002

S411-100002-. Washer-Spring

27

S411-100002

S411-100002-. Washer-Spring

28

31YC-11110

31YC-11110-. Bushing-Pin

3

31Y1-06350

31Y1-06350-. Gland

4

S731-085040

S731-085040-. Bushing-Du

9

Y190-099000

Y190-099000-. Ring-Snap

K

31Y1-06400

31Y1-06400-Seal Kit(5-8,10,

K

31Y1-06401

31Y1-06401-Seal Kit(5-8,10,

K10

S631-115004

S631-115004-. O-Ring

K11

S641-115003

S641-115003-. Ring-Back Up

K13

S632-060004

S632-060004-. O-Ring

K14

S642-060003

S642-060003-. Ring-Back Up

K15

Y420-125000

Y420-125000-. Seal-Piston

K16

Y310-125000

Y310-125000-. Ring-Wear

K22

S631-026004

S631-026004-. O-Ring

K29

S700-080206

S700-080206-. Seal-Dust

K5

Y200-085011

Y200-085011-. Seal-Rod

K6

Y180-085020

Y180-085020-. Ring-Back Up

K7

Y240-085011

Y240-085011-. Ring-Buffer

K8

Y110-085011

Y110-085011-. Wiper-Dust
