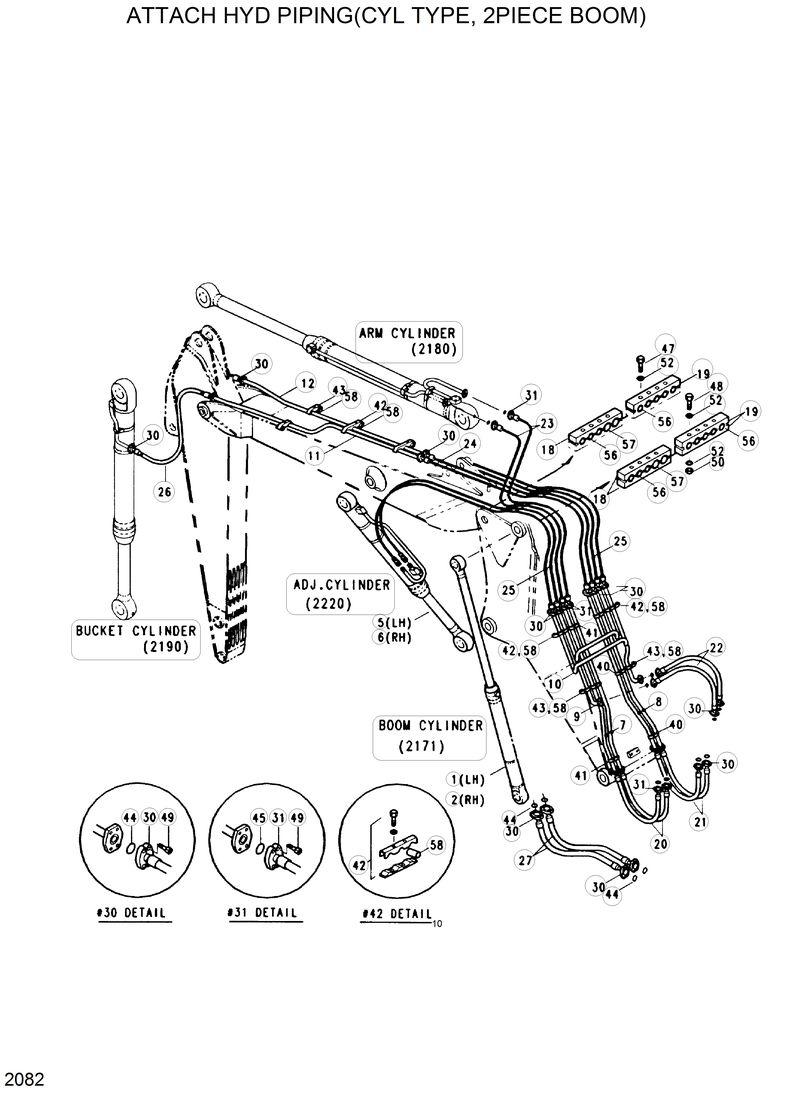

Запчасти Hyundai R200W2 ATTACH HYD PIPING(CYL TYPE, 2 PCS BOOM)

31E4-00471

31E4-00471-Adjust Cyl(2pcs)-Rh

31E4-00771

31E4-00771-Clamp-Hose

P683-167321

P683-167321-Hose Assy

P683-127321

P683-127321-Hose Assy

31E4-00472

31E4-00472-Adjust Cyl(2pcs)-Rh,Lh

31E4-00781

31E4-00781-Clamp-Hose

31E4-00451

31E4-00451-Boom Cyl(2pcs)-Rh

31E1-00461

31E1-00461-Boom Cyl(2pcs)-Lh

1

31E4-00450

31E4-00450-Boom Cyl(2pcs)-Rh

10

31E4-00690

31E4-00690-Pipe Assy

11

31E4-00700

31E4-00700-Pipe Assy

12

31E4-00710

31E4-00710-Pipe Assy

18

31E4-00770

31E4-00770-Clamp Hose

19

31E4-00780

31E4-00780-Clamp Hose

2

31E4-00460

31E4-00460-Boom Cyl(2pcs)-Lh

20

P681-167321

P681-167321-Hose Assy-Flg

21

P681-127321

P681-127321-Hose Assy-Flg

22

P683-127331

P683-127331-Hose Assy-Flg

23

P680-167347

P680-167347-Hose Assy-Flg

24

P680-127342

P680-127342-Hose Assy-Flg

25

P630-127352

P630-127352-Hose

26

P701-127328

P701-127328-Hose Assy-Flg 0x90

27

E131-0259

E131-0259-Hose Assy

30

P173-120102

P173-120102-Flange-Split

31

P173-160104

P173-160104-Flange-Split

40

31EK-00390

31EK-00390-Clamp-Pipe

41

31E4-00790

31E4-00790-Clamp-Pipe

42

31E4-00800

31E4-00800-Clamp-Pipe

43

31EK-00490

31EK-00490-Clamp-Pipe

44

CO0418A

CO0418A-O-Ring

45

CO0423A

CO0423A-O-Ring

47

S015-080502

S015-080502-Bolt-Hex

48

S015-080802

S015-080802-Bolt-Hex

49

S109-100306

S109-100306-Bolt-Socket

5

31E4-00470

31E4-00470-Adjust Cyl(2pcs)-Rh

50

S275-080002

S275-080002-Nut-Self Locking

52

S411-080002

S411-080002-Washer-Spring

56

S690-034100

S690-034100-Grommet

57

S690-039100

S690-039100-Grommet

58

31E9-53220

31E9-53220-Spacer-Pipe

6

31E4-00480

31E4-00480-Adjust Cyl(2pcs)-Lh

7

31E4-00660

31E4-00660-Pipe Assy

8

31E4-00670

31E4-00670-Pipe Assy

9

31E4-00680

31E4-00680-Pipe Assy
