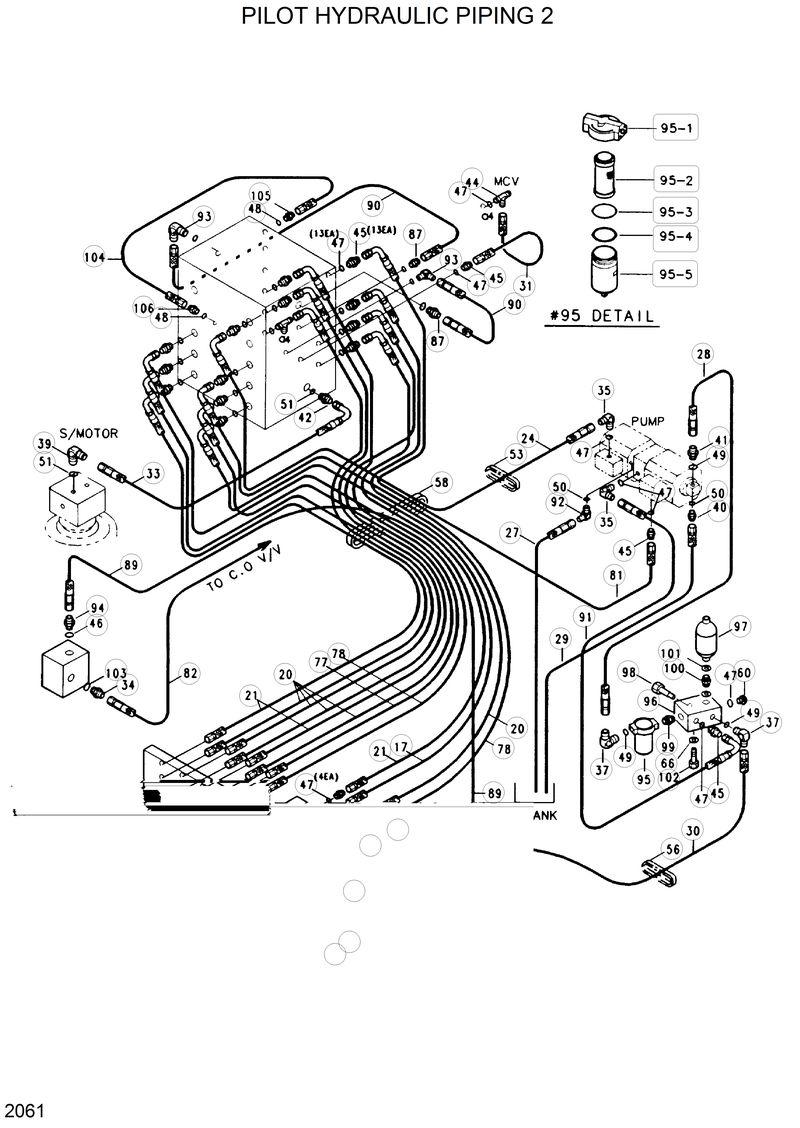

Запчасти Hyundai R200W2 PILOT HYD PIPING 2
№
Артикул
Название
Примечание
Количество
100
31E3-3214
31E3-3214-Fitting
101
P392-220000
P392-220000-Washer-Copper
102
S015-080252
S015-080252-Bolt-Hex
103
P392-180000
P392-180000-Washer-Copper
104
E131-0158
E131-0158-Hose Assy
105
31E9-0108
31E9-0108-Fitting
106
P010-110012
P010-110012-Connector
17
31E4-2033
31E4-2033-Hose Assy
20
31E4-2035
31E4-2035-Hose Assy
21
31E4-2036
31E4-2036-Hose Assy
24
31E3-2102
31E3-2102-Hose Assy
27
31E4-2042
31E4-2042-Hose Assy
28
31E4-2043
31E4-2043-Hose Assy
29
31E4-2029
31E4-2029-Hose Assy
30
31E3-2094
31E3-2094-Hose Assy
31
E131-0140
E131-0140-Hose Assy
33
31E4-2044
31E4-2044-Hose Assy
34
P010--220003
P010--220003-Fitting
37
P020-110003
P020-110003-Elbow-90
39
E231-0201
E231-0201-Elbow 90
40
P010-110005
P010-110005-Connector
44
P320-040404
P320-040404-Tee
46
P391-040000
P391-040000-Washer-Copper
47
S631-011001
S631-011001-O-Ring
49
S631-018001
S631-018001-O-Ring
51
S631-029001
S631-029001-O-Ring
52
E131-0172
E131-0172-Grommet
53
31E3-3125
31E3-3125-Grommet
56
31E3-3116
31E3-3116-Grommet
58
31E3-3135
31E3-3135-Block
66
S411-080002
S411-080002-Washer-Spring
77
31E4-2093
31E4-2093-Hose Assy
78
E131-0141
E131-0141-Hose Assy
81
31E4-2097
31E4-2097-Hose Assy
82
31E4-2102
31E4-2102-Hose Assy
87
P010-110009
P010-110009-Connector-Long
89
31E4-2094
31E4-2094-Hose Assy
90
31E4-2143
31E4-2143-Hose Assy
91
P620-042018
P620-042018-Hose Assy-Thd 0x90
92
P020-110004
P020-110004-Elbow-90
93
E131-0603
E131-0603-Elbow-90
94
P010-120002
P010-120002-Connector
95-1
31E3-0067
31E3-0067-. Head-Filter
95-3
31E3-0069
31E3-0069-. Ring
95-4
31E3-0070
31E3-0070-. O-Ring
95-5
31E3-0071
31E3-0071-. Cap
96
31E4-3161
31E4-3161-Block
98
31E4-0024
31E4-0024-Valve-Check
99
31E3-3177
31E3-3177-Fitting
Выбрано товаров: 59
