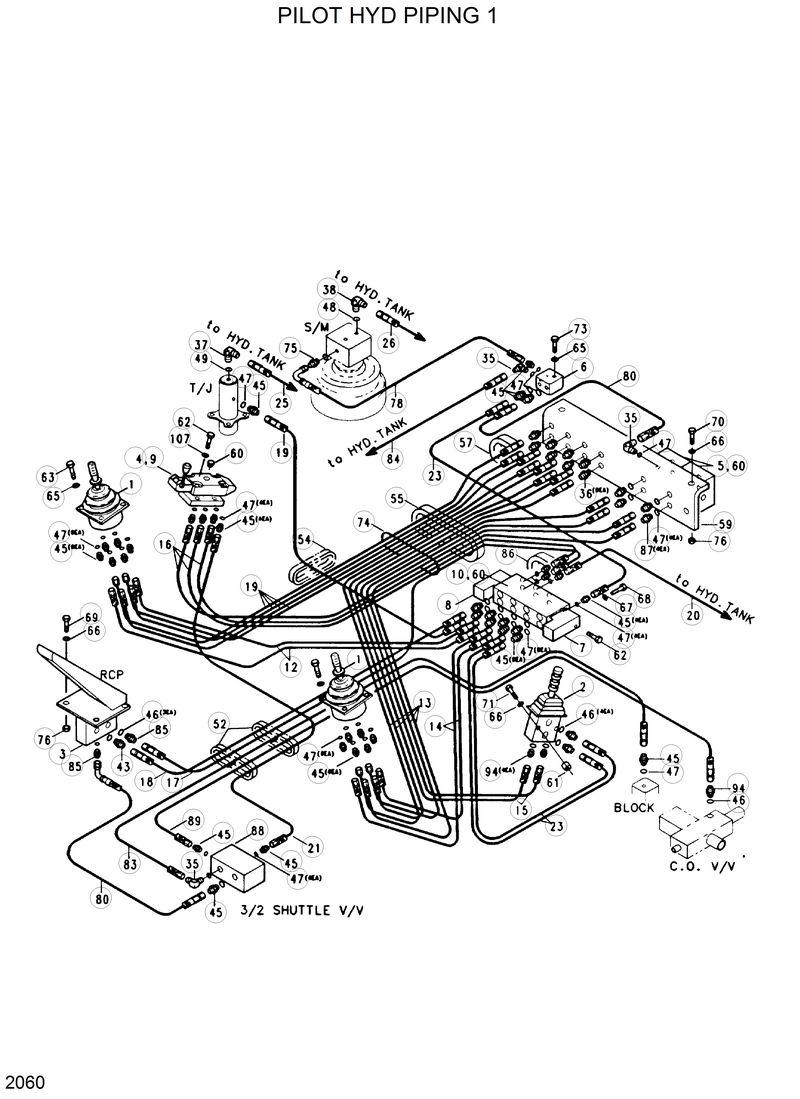

Запчасти Hyundai R200W2 PILOT HYD PIPING 1

31E4-00300

31E4-00300-Valve-Solenoid

31E9-20050

31E9-20050-Valve-Solenoid

1

E131-0130

E131-0130-Rcv Lever

10

31E4-3121

31E4-3121-Manifold

107

S411-050002

S411-050002-Washer-Spring

12

31E4-2024

31E4-2024-Hose Assy

13

31E4-2025

31E4-2025-Hose Assy

14

31E4-2026

31E4-2026-Hose Assy

15

31E4-2079

31E4-2079-Hose Assy

16

31E4-2023

31E4-2023-Hose Assy

17

31E4-2033

31E4-2033-Hose Assy

18

31E4-2034

31E4-2034-Hose Assy

19

E131-0151

E131-0151-Hose Assy

2

31E3-0050

31E3-0050-Rcv-Dozer

20

31E4-2035

31E4-2035-Hose Assy

21

31E4-2036

31E4-2036-Hose Assy

23

31E3-2071

31E3-2071-Hose Assy

25

31E4-2040

31E4-2040-Hose Assy

26

31E4-2041

31E4-2041-Hose Assy

3

31E3-0052

31E3-0052-Pilot Control Valve

35

31E3-3080

31E3-3080-Elbow-90

36

31E4-3033

31E4-3033-Connector-2nut

37

P020-110003

P020-110003-Elbow-90

38

P020-110002

P020-110002-Elbow-90

4

31E3-0051

31E3-0051-Directional Valve

43

31E4-3147

31E4-3147-Banjo Fitting

45

P010-110002

P010-110002-Connector

46

P391-040000

P391-040000-Washer-Copper

47

S631-011001

S631-011001-O-Ring

48

S631-014001

S631-014001-O-Ring

49

S631-018001

S631-018001-O-Ring

5

E131-0134

E131-0134-Valve-Shuttle

52

E131-0172

E131-0172-Grommet

54

31E3-3133

31E3-3133-Grommet

55

31E3-3129

31E3-3129-Grommet

57

31E3-3131

31E3-3131-Grommet

59

31E4-3031

31E4-3031-Tee

60

P220-110102

P220-110102-Plug

61

31E3-3076

31E3-3076-Washer-Copper

62

S109-050506

S109-050506-Bolt-Socket

63

S109-060256

S109-060256-Bolt-Socket

65

S411-060002

S411-060002-Washer-Spring

66

S411-080002

S411-080002-Washer-Spring

67

S411-100002

S411-100002-Washer-Spring

68

S017-100202

S017-100202-Bolt-Hex

69

S015-080502

S015-080502-Bolt-Hex

7

E131-0175

E131-0175-Solenoid Valve Assy

70

S015-080652

S015-080652-Bolt-Hex

71

S015-080552

S015-080552-Bolt-Hex

73

S015-060502

S015-060502-Bolt-Hex

74

S551-050203

S551-050203-Clamp-Band

75

P010-430002

P010-430002-Connector

76

S207-0801002

S207-0801002-Nut

78

E131-0141

E131-0141-Hose Assy

8

31E4-0022

31E4-0022-Valve-Solenoid

80

E131-0140

E131-0140-Hose Assy

83

31E3-2075

31E3-2075-Hose Assy

84

31E4-2090

31E4-2090-Hose Assy

85

31E3-3164

31E3-3164-Fitting-Banjo

86

31E3-3128

31E3-3128-Grommet

87

P010-110009

P010-110009-Connector-Long

88

31E4-0037

31E4-0037-Shuttle Valve 3/2

9

31E3-3072

31E3-3072-Block

94

P010-120002

P010-120002-Connector

N6

E131-0135

E131-0135-Valve-Time Delay
