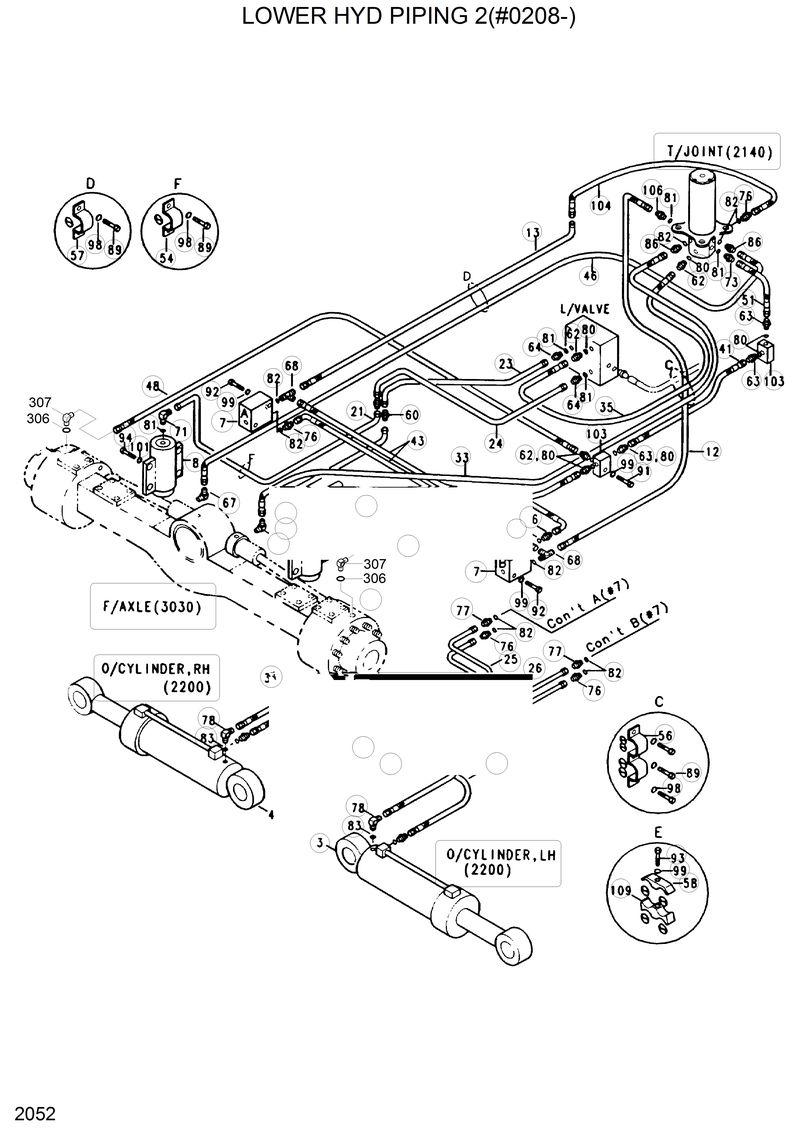

Запчасти Hyundai R200W2 LOWER HYD PIPING 2(#0208-)

101

S441-220004

S441-220004-Washer-Hardened

103

31E3-3065

31E3-3065-Block

104

31E4-2139

31E4-2139-Hose Assy

106

P010-110014

P010-110014-Connector

109

31E4-31430

31E4-31430-Spacer-Clamp

12

P623-086025

P623-086025-Hose Assy-Thd 0x90

13

P623-086027

P623-086027-Hose Assy-Thd 0x90

21

31E4-1052

31E4-1052-Pipe Assy

22

31E4-1053

31E4-1053-Pipe Assy

23

31E4-0054

31E4-0054-Pipe

24

31E4-0055

31E4-0055-Pipe

25

31E4-00840

31E4-00840-Pipe Assy

26

31E4-00850

31E4-00850-Pipe Assy

3

31E4-00910

31E4-00910-Outrigger Cylinder-Lh

30

P611-086011

P611-086011-Hose Assy-Thd 0x45

306

S631-014001

S631-014001-O-Ring

306

S631-014001

S631-014001-O-Ring

307

P030-210004

P030-210004-Elbow-45

31

31E4-00860

31E4-00860-Pipe Assy

33

P603-066037

P603-066037-Hose Assy-Thd

35

31E3-2060

31E3-2060-Hose Assy

38

P601-043028

P601-043028-Hose Assy-Thd

4

31E4-00920

31E4-00920-Outrigger Cylinder-Rh

41

31E4-2087

31E4-2087-Hose Assy

43

P623-086010

P623-086010-Hose Assy-Thd 0x90

45

31E4-00870

31E4-00870-Pipe Assy

46

P603-066044

P603-066044-Hose Assy-Thd

48

P611-043029

P611-043029-Hose Assy-Thd 0x45

51

31E4-2138

31E4-2138-Hose Assy

54

31E4-3097

31E4-3097-Strap

56

31E4-3099

31E4-3099-Strap

57

31E4-3146

31E4-3146-Strap

58

31E4-3030

31E4-3030-Clamp-Pipe

60

31E4-3074

31E4-3074-Connector

62

P010-110002

P010-110002-Connector

63

P010-110012

P010-110012-Connector

64

31E3-3113

31E3-3113-Connector

67

31E4-3140

31E4-3140-Elbow-90

68

P320-080808

P320-080808-Tee-Run Type

71

31E3-3175

31E3-3175-Elbow-90

73

E131-0124

E131-0124-Fitting

76

P010-110004

P010-110004-Connector

77

31E4-00830

31E4-00830-Connector

78

31E4-3101

31E4-3101-Flange-Square

8

31E3-0021

31E3-0021-Cylinder-Oscillating

8

31EM-00300

31EM-00300-Cylinder-Oscillating

8-1

31E3-00210

31E3-00210-. Seal Kit-Oscillating Cyl

80

S631-011001

S631-011001-O-Ring

82

S631-018001

S631-018001-O-Ring

83

CO0021B

CO0021B-O-Ring

86

P020-110014

P020-110014-Elbow-90

89

S015-080152

S015-080152-Bolt-Hex

91

S017-100402

S017-100402-Bolt-Hex

92

S017-100652

S017-100652-Bolt-Hex

93

S017-101002

S017-101002-Bolt-Hex

94

S018-220752

S018-220752-Bolt-Hex

98

S411-080002

S411-080002-Washer-Spring

99

S411-100002

S411-100002-Washer-Spring

N7

31E4-00410

31E4-00410-Pilot Check Valve
