Запчасти Hyundai R200W2 REGULATOR(LOW EMISSION)

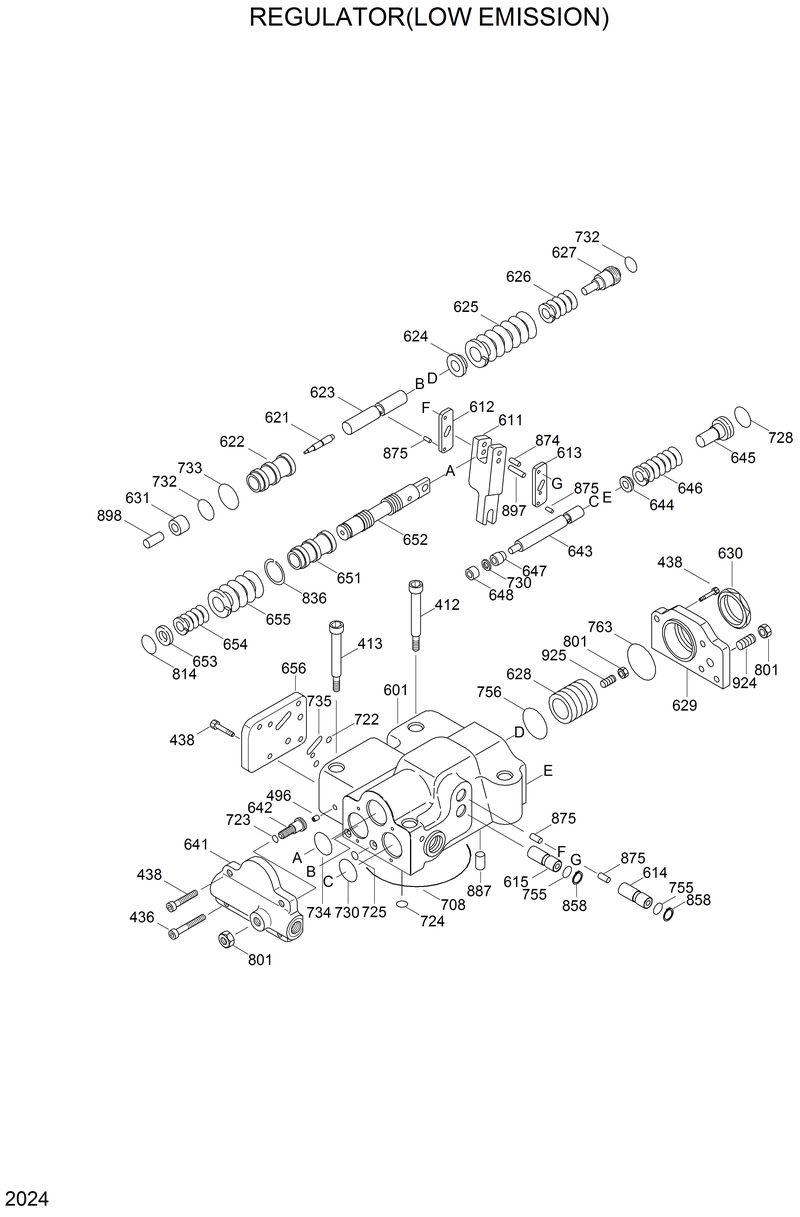

Схема запчастей Hyundai R200W2 - REGULATOR(LOW EMISSION)

Артикул

Название

Примечание

Количество

*-2

293G-9C39

293G-9C39-. Regulator Assy

412

OSBM850

OSBM850-.. Screw

413

OSBM870

OSBM870-.. Screw

436

OSBM630

OSBM630-.. Screw

438

OSBM620

OSBM620-.. Screw

496

PBP116-2403

PBP116-2403-.. Plug

601

2923801016

2923801016-.. Casing

611

2953802680

2953802680-.. Lever-Feed Back

612

2953801683

2953801683-.. Lever(1)

613

2953801684

2953801684-.. Lever(2)

614

2953801685

2953801685-.. Plug-Center

615

2953801686

2953801686-.. Plug-Adjust

621

2953801687

2953801687-.. Piston

622

2953801688

2953801688-.. Case-Piston

623

2953801689

2953801689-.. Rod-Compensator

624

2953801690

2953801690-.. Seat-Spring(C)

625

2953801828

2953801828-.. Spring-Outer

626

2953801692

2953801692-.. Spring-Inner

627

2953801693

2953801693-.. Stem(C)-Adjust

628

2953801694

2953801694-.. Screw(C)-Adjust

629

2943800443

2943800443-.. Cover(C)

630

2953801695

2953801695-.. Nut-Lock

631

2953802040

2953802040-.. Sleeve

641

2943800444

2943800444-.. Cover-Pilot

642

2953801697

2953801697-.. Cover-Pilot

643

2953801698

2953801698-.. Piston-Pilot

644

2953801699

2953801699-.. Seat(Q)-Spring

645

2953801700-4

2953801700-4-.. Stem(Q)-Adjust

646

2953801832

2953801832-.. Spring-Pilot

647

2953801702

2953801702-.. Stopper

648

2953801703

2953801703-.. Piston(Qmc)

651

2943800521

2943800521-.. Sleeve

652

2953801706

2953801706-.. Spool

653

2953801707

2953801707-.. Seat-Spring

654

2953801746

2953801746-.. Spring-Return

655

2953801709

2953801709-.. Spring-Set

656

2953802034

2953802034-.. Cover-Block

708

OORBG75

OORBG75-.. O-Ring

722

OORBP6

OORBP6-.. O-Ring

723

OORBP7

OORBP7-.. O-Ring

724

OORBP8

OORBP8-.. O-Ring

725

OORBP10

OORBP10-.. O-Ring

728

OORBP18

OORBP18-.. O-Ring

730

OORBP22

OORBP22-.. O-Ring

732

OORBP16

OORBP16-.. O-Ring

733

OORBP20

OORBP20-.. O-Ring

734

OORBG25

OORBG25-.. O-Ring

735

OORBP1250

OORBP1250-.. O-Ring

755

OORBP11

OORBP11-.. O-Ring

756

OORBP26

OORBP26-.. O-Ring

763

OORBG35

OORBG35-.. O-Ring

801

ORNM8

ORNM8-.. Nut

814

OSR10

OSR10-.. Ring-Snap

836

PWR20

PWR20-.. Ring-Snap

858

ORR15

ORR15-.. Ring-Snap

874

PJR411

PJR411-.. Pin

875

PJR408

PJR408-.. Pin

887

2953801817

2953801817-.. Pin

897

PJR419

PJR419-.. Pin

898

PJR911

PJR911-.. Pin

924

PSSM820

PSSM820-.. Screw-Socket

N925

2953801773

2953801773-.. Screw(Qi)-Adjust

Выбрано товаров: 62
