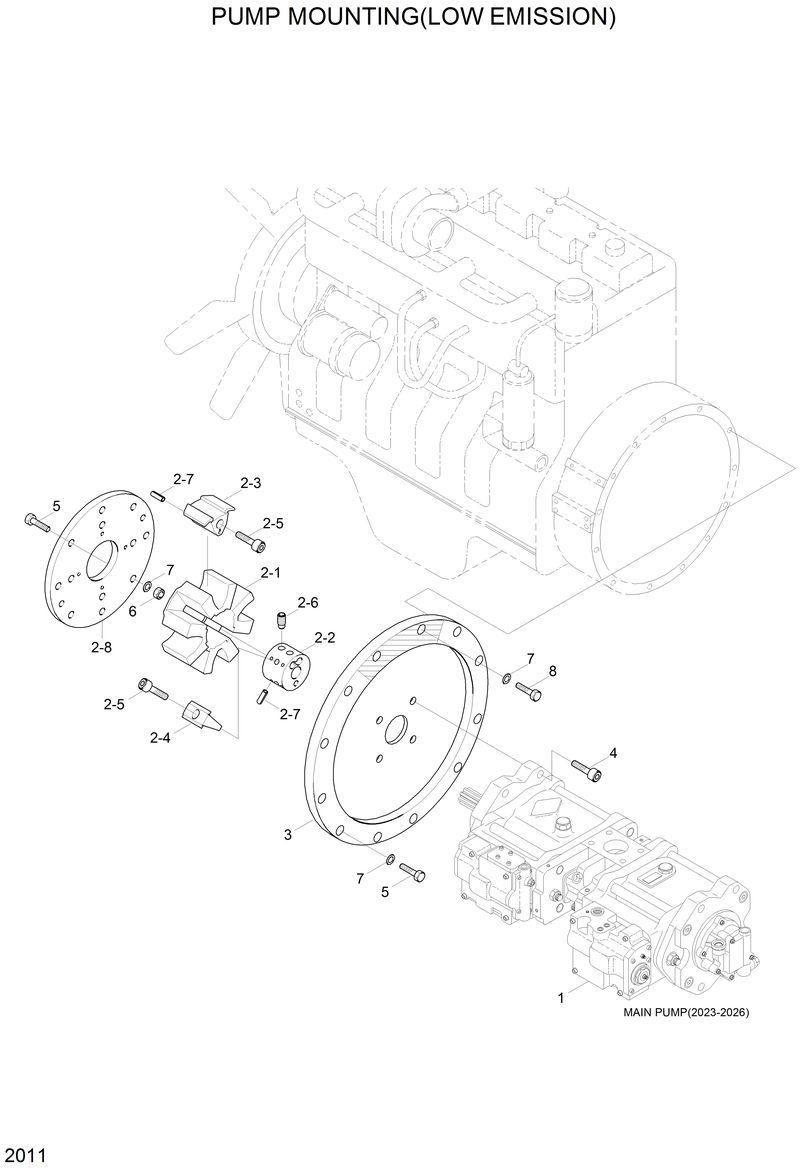

Запчасти Hyundai R200W2 PUMP MOUNTING(LOW EMISSION)

1

31EM-10100

31EM-10100-Main Pump

2

11E4-1505

11E4-1505-Coupling Assy

2-1

11E1-1507

11E1-1507-. Element

2-2

11E4-1506

11E4-1506-. Hub

2-3

11E1-1509

11E1-1509-. Insert-A

2-4

11E1-1510

11E1-1510-. Insert-R

2-5

S109-160506

S109-160506-. Bolt-Socket

2-6

11E1-1511

11E1-1511-. Bolt-Clamp

2-7

S472-500102

S472-500102-. Pin-Spring

2-8

11E1-1604

11E1-1604-. Plate

3

11E4-1503

11E4-1503-Housing

4

S109-200556

S109-200556-Bolt-Socket

5

S017-100552

S017-100552-Bolt-Hex

6

S205-101002

S205-101002-Nut-Hex

7

S411-100002

S411-100002-Washer-Spring

8

S017-100652

S017-100652-Bolt-Hex
