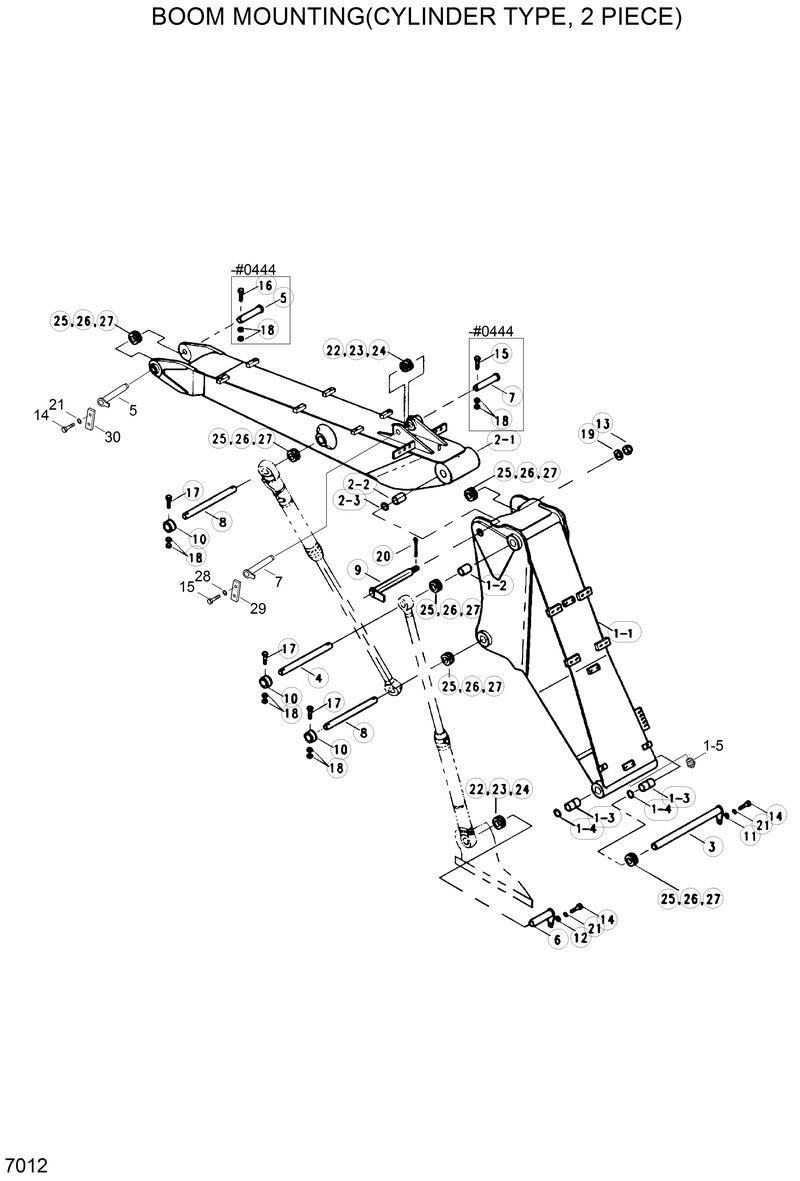

Запчасти Hyundai R200W2 BOOM MOUNTING(CYLINDER TYPE, 2 PIECE)

61E8-11160

61E8-11160-Pin Assy

62E1-11300

62E1-11300-Pin Assy

S017-160302

S017-160302-Bolt-Hex

S017-160302

S017-160302-Bolt-Hex

S017-161302

S017-161302-Bolt-Hex

X124-802100

X124-802100-. Bushing

S205-161002

S205-161002-Nut-Hex

62E1-13511

62E1-13511-. Boom Wa

S205-161002

S205-161002-Nut-Hex

62E1-13502

62E1-13502-Boom Assy(2nd)

S411-160002

S411-160002-Washer-Spring

S411-160002

S411-160002-Washer-Spring

S017-161302

S017-161302-Bolt-Hex

X114-802130

X114-802130-. Bushing

62E1-13001

62E1-13001-Boom Assy-2pcs Cyl 1st

1

62E1-13000

62E1-13000-Boom Assy-2pcs Cyl 1st

1-1

62E1-13010

62E1-13010-. Boom Wa-2pcs Cyl 1st

1-2

62E1-13400

62E1-13400-. Bushing

1-3

E161-1060

E161-1060-. Bushing

1-4

S700-080206

S700-080206-. Seal-Dust

1-5

S651-810002

S651-810002-. Nipple-Grease

10

E161-1070

E161-1070-Collar

11

E161-1071

E161-1071-Plate

12

61E9-1082

61E9-1082-Plate

13

62E1-1108

62E1-1108-Nut-Slotted

16

S017-161402

S017-161402-Bolt-Hex

17

S017-161602

S017-161602-Bolt-Hex

19

62E1-1107

62E1-1107-Washer-Hardened

2

62E1-13500

62E1-13500-Boom Assy-2pcs Cyl 2nd

2-1

62E1-13510

62E1-13510-. Boom Wa-2pcs Cyl 2nd

2-2

E161-2060

E161-2060-. Bushing

20

S461-800902

S461-800902-Pin-Split

22

S391-070130

S391-070130-Shim(1.0§®)

23

S392-070130

S392-070130-Shim(2.0§®)

24

S390-070130

S390-070130-Shim(0.5§®)

25

S391-080140

S391-080140-Shim(1.0§®)

26

S392-080140

S392-080140-Shim-Round(2.0§®)

27

S390-080140

S390-080140-Shim-Round

28

S411-120002

S411-120002-Washer-Spring

29

65EA-10720

65EA-10720-Plate

3

E161-1112

E161-1112-Pin

30

65EA-10730

65EA-10730-Plate

4

62E1-1230

62E1-1230-Pin

5

E262-1114

E262-1114-Pin

6

62E1-1233

62E1-1233-Pin

7

E161-1108

E161-1108-Pin

8

62E1-13310

62E1-13310-Pin

9

62E1-13320

62E1-13320-Pin
