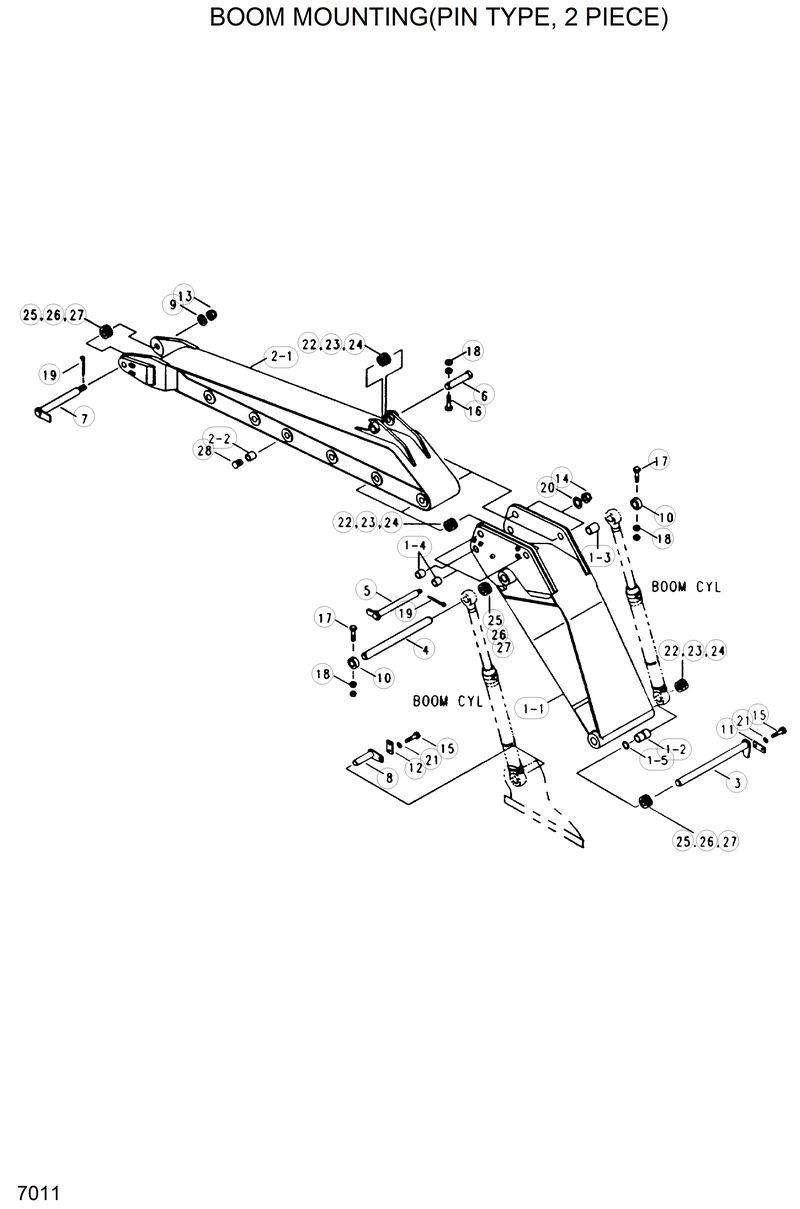

Запчасти Hyundai R200W2 BOOM MOUNTING(PIN TYPE, 2 PIECE)

1

62E1-1200

62E1-1200-Boom Assy-2pcs 1st

1-1

62E1-1201

62E1-1201-. Boom Wa-2pcs 1st

1-2

E161-1060

E161-1060-. Bushing

1-3

62E1-1240

62E1-1240-. Bushing

1-4

62E1-1241

62E1-1241-. Bushing

1-5

S700-080206

S700-080206-. Seal-Dust

10

E161-1070

E161-1070-Collar

11

E161-1071

E161-1071-Plate

12

61E9-1082

61E9-1082-Plate

13

62E1-1108

62E1-1108-Nut-Slotted

14

62E1-1248

62E1-1248-Nut-Slotted

15

S017-160302

S017-160302-Bolt-Hex

16

S017-161302

S017-161302-Bolt-Hex

17

S017-161602

S017-161602-Bolt-Hex

18

S205-161002

S205-161002-Nut-Hex

19

S461-800902

S461-800902-Pin-Split

2

62E1-1250

62E1-1250-Boom Assy-2pcs 2nd

2-1

62E1-1251

62E1-1251-. Boom Wa-2pcs 2nd

2-2

62E1-1242

62E1-1242-. Bushing

20

S403-485002

S403-485002-Washer-Plain

21

S411-160002

S411-160002-Washer-Spring

22

S391-070130

S391-070130-Shim(1.0§®)

23

S392-070130

S392-070130-Shim(2.0§®)

24

S390-070130

S390-070130-Shim(0.5§®)

25

S391-080140

S391-080140-Shim(1.0§®)

26

S392-080140

S392-080140-Shim-Round(2.0§®)

27

S390-080140

S390-080140-Shim-Round

28

62E1-1249

62E1-1249-Plug

3

E161-1112

E161-1112-Pin

4

62E1-1230

62E1-1230-Pin

5

62E1-1231

62E1-1231-Pin

6

E161-1108

E161-1108-Pin

7

62E1-1232

62E1-1232-Pin

8

62E1-1233

62E1-1233-Pin

9

62E1-1107

62E1-1107-Washer-Hardened
