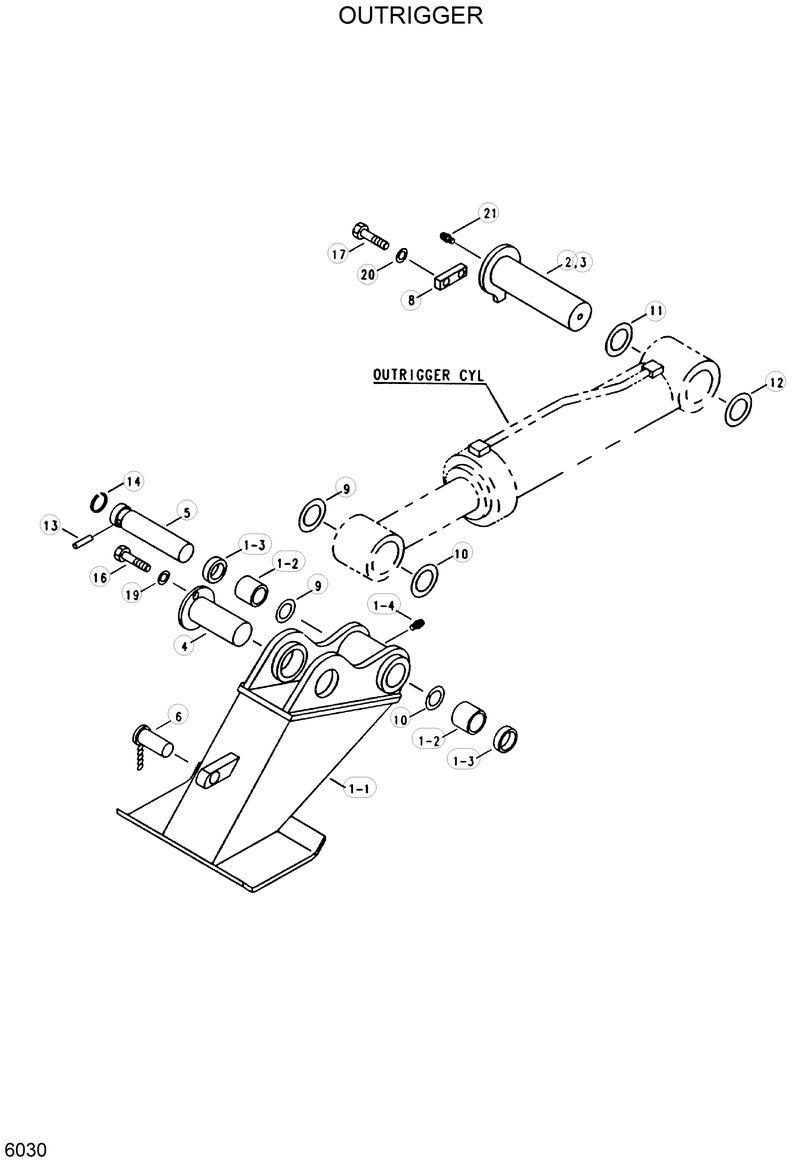

Запчасти Hyundai R200W2 OUTRIGGER

1

51E4-3500

51E4-3500-Outrigger Leg Assy

1-1

51E4-3501

51E4-3501-. Outrigger Foot Wa

1-2

51E4-3561

51E4-3561-. Bushing

1-3

S700-070206

S700-070206-. Seal-Dust

1-4

S651-810002

S651-810002-. Nipple-Grease

10

S391-080140

S391-080140-Shim(1.0§®)

11

S390-070130

S390-070130-Shim(0.5§®)

12

S391-070130

S391-070130-Shim(1.0§®)

13

61E3-1190

61E3-1190-Pin-Stop

14

61E3-1191

61E3-1191-Spring-Lock

16

S018-100202

S018-100202-Bolt-Hex

17

S017-120252

S017-120252-Bolt-Hex

19

S411-100002

S411-100002-Washer-Spring

2

51E4-3551

51E4-3551-Pin-Cyl Head,Lh

20

S411-120002

S411-120002-Washer-Spring

21

S651-810002

S651-810002-Nipple-Grease

3

51E4-3552

51E4-3552-Pin-Cyl Head,Rh

4

51E4-3553

51E4-3553-Pin-Cyl Rod

5

51E4-3554

51E4-3554-Rod Pin

6

51E4-3555

51E4-3555-Pin-Safety

8

51E3-3164

51E3-3164-Plate-Lock

9

S390-080140

S390-080140-Shim-Round
