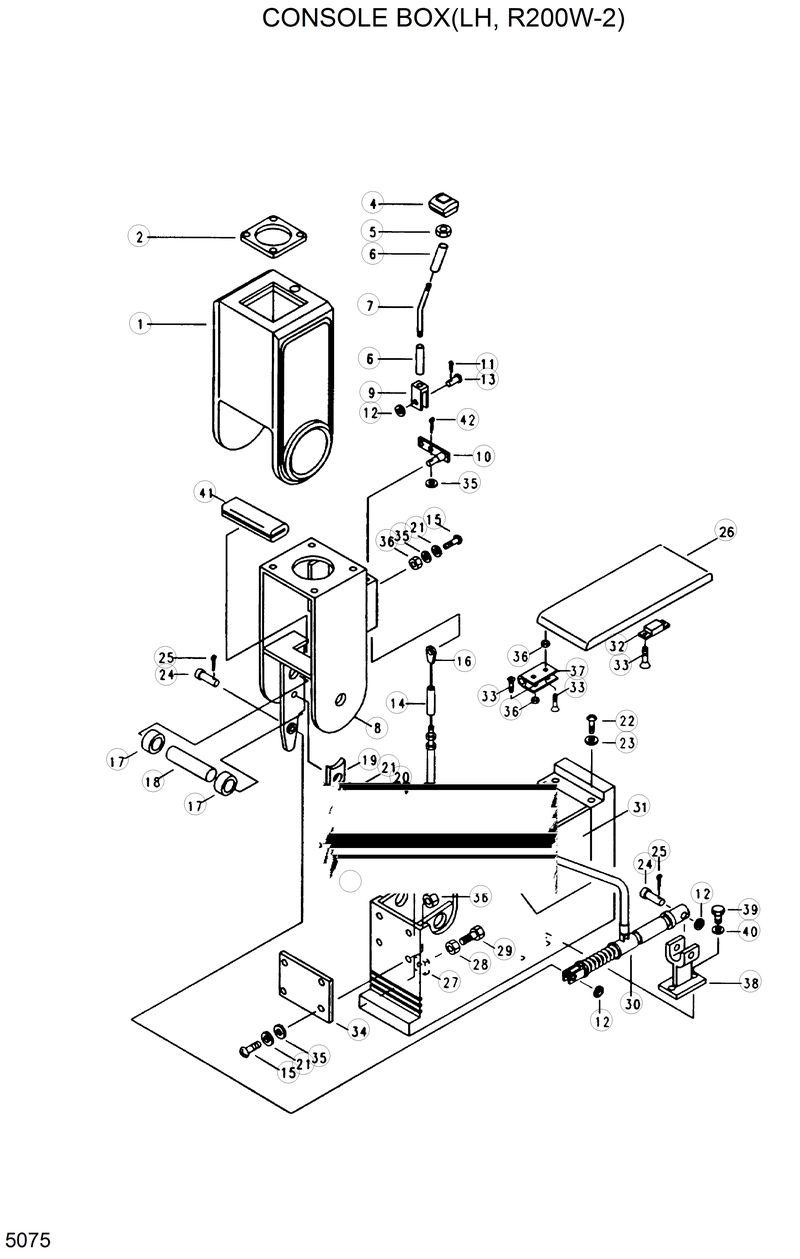

Запчасти Hyundai R200W2 CONSOLE BOX(LH, R200W-2)
№
Артикул
Название
Примечание
Количество
71EA-00500
71EA-00500-. Bracket Wa
71E3-05030
71E3-05030-. Cover-Rear
71E3-05070
71E3-05070-. Bracket
S161-060102
S161-060102-. Screw-C/R Rd
S161-060102
S161-060102-. Screw-C/R Rd
1
71E3-0501
71E3-0501-. Cover-Front
10
71E3-0132
71E3-0132-. Bracket
11
S491-060152
S491-060152-. Pin-Clevis
12
S403-082002
S403-082002-. Washer-Plain
13
S461-320142
S461-320142-. Split Pin
14
71E3-0510
71E3-0510-. Hose-Rubber
16
71E3-0135
71E3-0135-. Cable-Push Pull
17
71E3-0513
71E3-0513-. Du-Bushing
18
71E3-0514
71E3-0514-. Pin
19
71E3-0515
71E3-0515-. Key
2
71E3-0502
71E3-0502-. Cover-Rcv Lever
20
S015-060162
S015-060162-. Bolt-Hex
21
S411-060002
S411-060002-. Washer-Spring
22
S161-040102
S161-040102-. Screw
23
S401-042002
S401-042002-. Washer-Plain
24
S491-080402
S491-080402-. Pin-Clevis
25
S461-200257
S461-200257-. Split Pin
26
71E3-0516
71E3-0516-. Cover-Upper
27
71E3-0517
71E3-0517-. Bracket
28
S205-101002
S205-101002-. Nut-Hex
29
S017-100352
S017-100352-. Bolt-Hex
3
71E3-0503
71E3-0503-. Cover-Rear
30
71E3-0518
71E3-0518-. Cylinder
31
71E3-0520
71E3-0520-. Box-Book
32
71E3-0521
71E3-0521-. Catch-Magnetic
33
S141-030102
S141-030102-. Screw
34
71E1-5183
71E1-5183-. Cover
35
S403-062002
S403-062002-. Washer-Plain
36
S203-061002
S203-061002-. Nut-Hex
37
71E3-0522
71E3-0522-. Hinge
38
71E1-5219
71E1-5219-. Bracket-Cylinder
39
S015-080202
S015-080202-. Bolt-Hex
4
71E3-0504
71E3-0504-. Knob-Push
40
S403-081002
S403-081002-. Washer-Plain
41
71E3-0052
71E3-0052-. Grommet
42
S461-160162
S461-160162-. Pin-Split
5
S205-061002
S205-061002-. Nut-Hex
6
71E3-0505
71E3-0505-. Tube-Vinyl
7
71E3-0506
71E3-0506-. Push Arm
8
71E3-0507
71E3-0507-. Bracket
9
71E3-0508
71E3-0508-. Clevis
N*
71E3-0500
71E3-0500-Console Box-Lh
Выбрано товаров: 47
