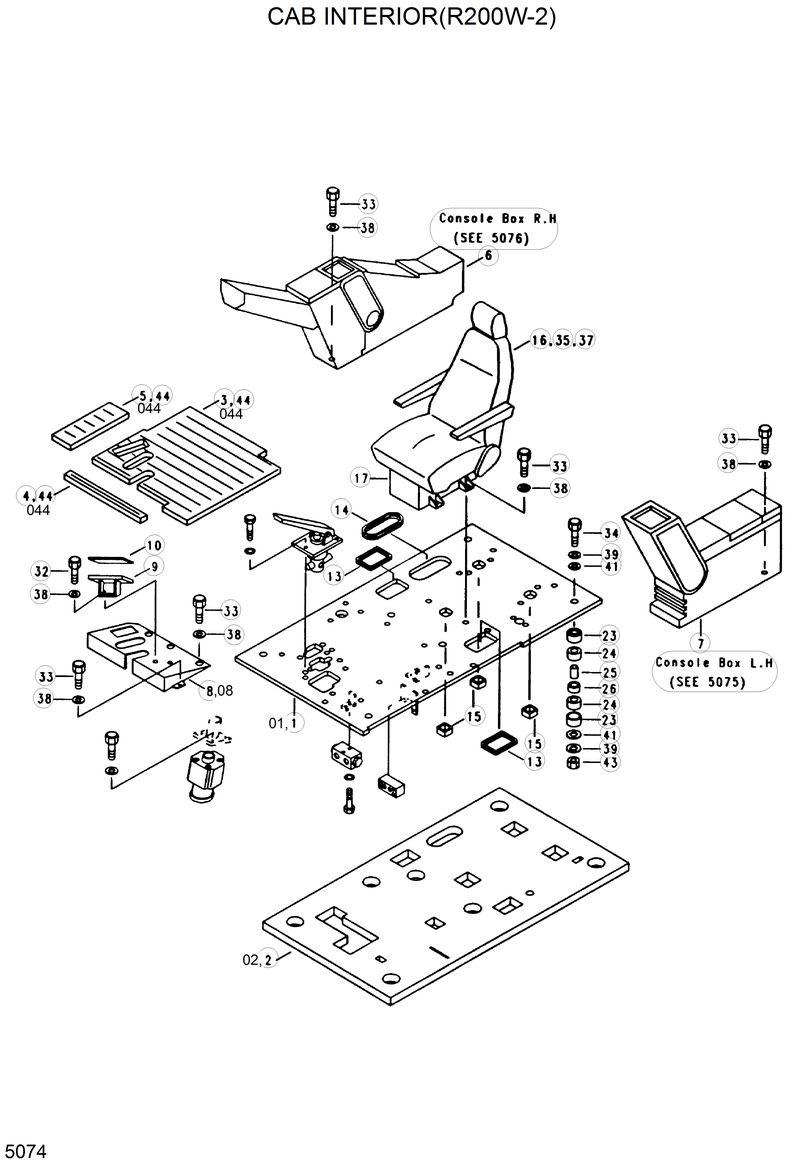

Запчасти Hyundai R200W2 CAB INTERIOR(R200W-2)

71EH-00050

71EH-00050-Seat Assy

71E3-51120

71E3-51120-Floor Mat Cover

71E3-51121

71E3-51121-Floor Mat Cover

71EA-00660

71EA-00660-Console Box-Lh

71EH-00201

71EH-00201-Seat Base

71E3-00250

71E3-00250-Mat Floor (1)

71E3-00270

71E3-00270-Mat Floor (3)

71E3-00260

71E3-00260-Mat Floor (2)

01

71E4-00500

71E4-00500-Bottom Plate Wa

02

71E4-00520

71E4-00520-Sponge

044

71E4-00550

71E4-00550-Mat Floor Cover

08

71E4-00530

71E4-00530-Foot Board Wa

1

71E4-0030

71E4-0030-Bottom Plate Wa

10

71E3-5008

71E3-5008-Rubber-Foot Rest

13

E131-1110

E131-1110-Grommet

14

71EA-0034

71EA-0034-Grommet

15

71E3-0011

71E3-0011-Grommet

16

71E1-5180

71E1-5180-Seat Assy

17

71E1-5217

71E1-5217-Seat Base

2

71E4-0031

71E4-0031-Sponge

23

E171-1233

E171-1233-Cap

24

E171-1002

E171-1002-Cushion

25

E171-1234

E171-1234-Pipe

26

71E3-0024

71E3-0024-Cushion-Center

3

71E3-0025

71E3-0025-Mat Floor (1)

32

S017-100202

S017-100202-Bolt-Hex

33

S017-100302

S017-100302-Bolt-Hex

34

S017-201104

S017-201104-Bolt-Hex

35

S161-080252

S161-080252-Screw

37

S411-080002

S411-080002-Washer-Spring

38

S411-100002

S411-100002-Washer-Spring

39

S411-200002

S411-200002-Washer-Spring

4

71E3-0026

71E3-0026-Mat Floor (2)

41

S403-201002

S403-201002-Washer-Plain

43

S205-201002

S205-201002-Nut-Hex

44

71E3-5112

71E3-5112-Floor Mat Cover

5

71E3-0027

71E3-0027-Mat Floor (3)

6

71E3-0551

71E3-0551-Console Box-Rh

8

71E3-0003

71E3-0003-Foot Board Wa

9

71E3-0096

71E3-0096-Foot Rest Wa

N7

71E3-0500

71E3-0500-Console Box-Lh
