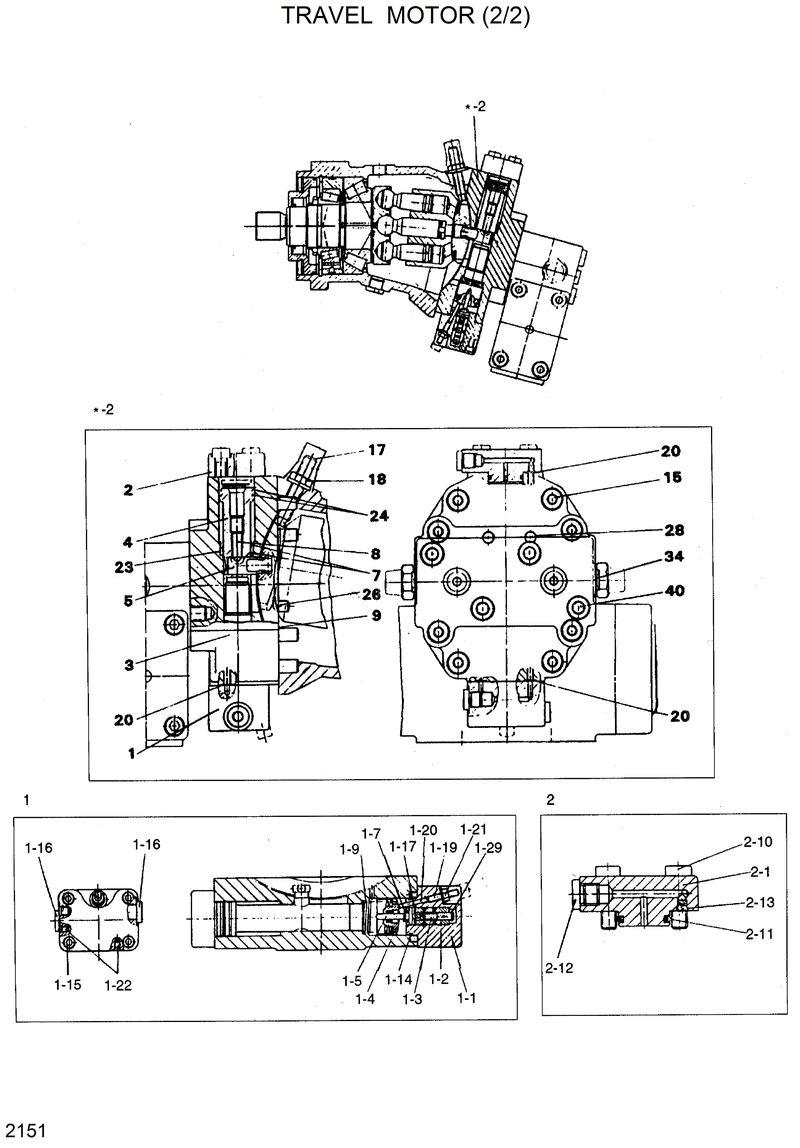

Запчасти Hyundai R130W TRAVEL MOTOR(2/2)

*-2

423787-440

423787-440-Control Unit

1

415138-441

415138-441-. Control Rart

1-1

412002-441

412002-441-.. Housing-Control

1-14

083742

083742-.. O-Ring

1-15

083026-DIN912

083026-DIN912-.. Screw-Soc Hd

1-17

083381-DIN472

083381-DIN472-.. Ring-Retaining

1-19

152427-DIN913

152427-DIN913-.. Pin-Threaded

1-2

417512-441

417512-441-.. Bushing-Control

1-20

087166-DIN6325

087166-DIN6325-.. Pin-Cylinder

1-21

152425-N02

152425-N02-.. Nut-Seal Lock

1-22

153868-N02

153868-N02-.. Pin-D/Break Off

1-29

085812-DIN6799

085812-DIN6799-.. Disc-Retaining

1-3

430747-441

430747-441-.. Piston-Control

1-4

420170-441

420170-441-.. Bushing-Adjusting

1-5

418761-441

418761-441-.. Bolt-Spring

1-7

430757-441

430757-441-.. Spring-Pressure

1-9

412305-441

412305-441-.. Spring-Pressure

15

080390-DIN912

080390-DIN912-. Screw-Soc Hd

17

085976-DIN915

085976-DIN915-. Pin-Threaded

18

152459-N02

152459-N02-. Nut-Seal Lock

2

423169-555

423169-555-. Cover Assy

2-1

421069-440

421069-440-.. Cover

2-10

083061-DIN912

083061-DIN912-.. Screw-Soc Hd

2-11

083798

083798-.. O-Ring

2-12

151979-N02

151979-N02-.. Screw-Locking

2-12

151979-N02

151979-N02-.. Screw-Locking

2-13

156492-N02

156492-N02-.. Orifice

20

086498

086498-. O-Ring

23

156544

156544-. Ring-Seal

24

156647-DIN34110

156647-DIN34110-. Ring

26

152600-DIN7

152600-DIN7-. Pin-Cylinder

28

153880-N02

153880-N02-. Pin-D/Break Off

3

425821-440

425821-440-. Plate-Port

34

153815-N02

153815-N02-. Locking Screw

4

422216-440

422216-440-. Piston-Positioning

40

153817-DIN912

153817-DIN912-. Screw-Soc Hd

5

422217-440

422217-440-. Trunnion-Position

7

422905-440

422905-440-. Ring-Back Up

8

409591-225

409591-225-. Pin-Threaded

9

435087-440

435087-440-. Gasket
