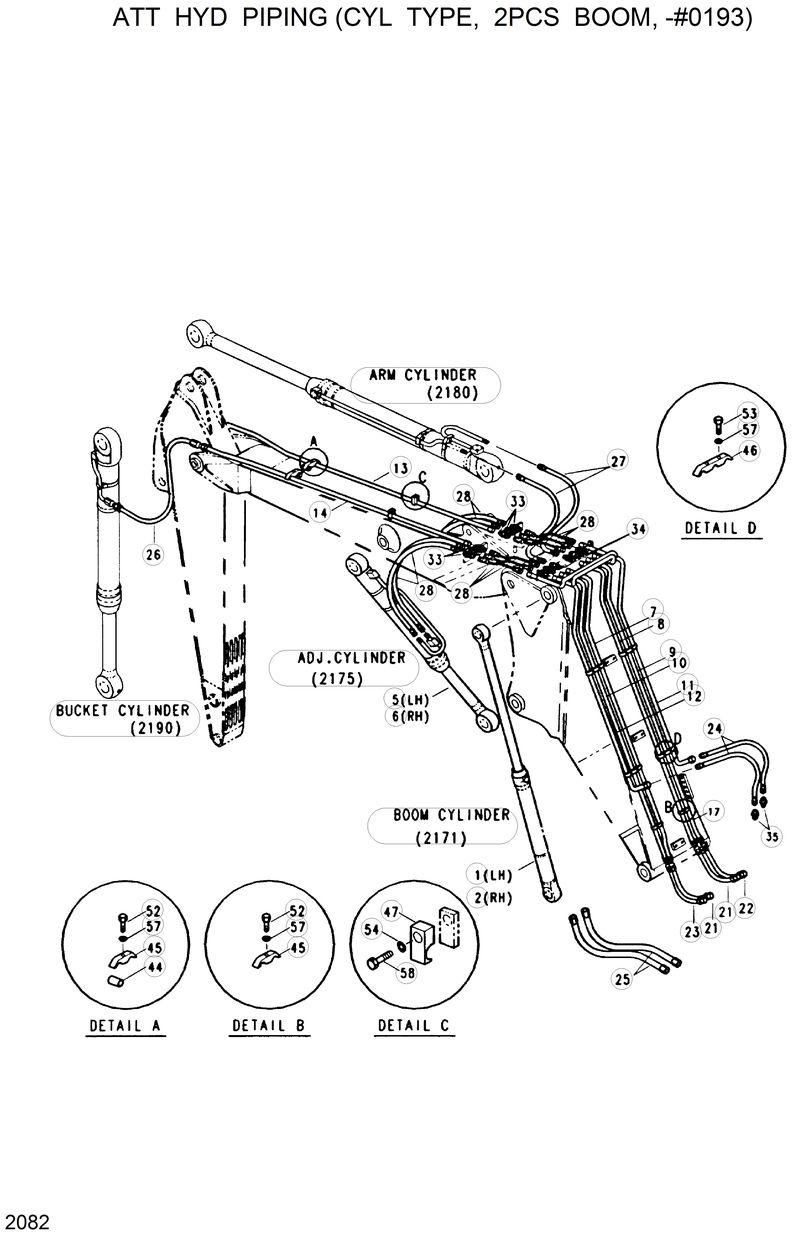

Запчасти Hyundai R130W ATT HYD PIPING(CYL, 2PCS BOOM, -#0193)

1

31EA-01120

31EA-01120-Cylinder-Boom,Rh

10

31EA-01790

31EA-01790-Pipe Assy

11

31EA-01801

31EA-01801-Pipe Assy

12

31EA-01811

31EA-01811-Pipe Assy

13

31EA-01820

31EA-01820-Pipe Assy

14

31EA-01830

31EA-01830-Pipe Assy

2

31EA-01110

31EA-01110-Cylinder-Boom,Lh

21

P601-126018

P601-126018-Hose Assy-Thd

22

P601-086018

P601-086018-Hose Assy-Thd

23

P601-086020

P601-086020-Hose Assy-Thd

24

P601-086027

P601-086027-Hose Assy-Thd

25

P601-086013

P601-086013-Hose Assy-Thd

26

P601-086022

P601-086022-Hose Assy-Thd

27

P600-126019

P600-126019-Hose Assy-Thd

28

P600-086017

P600-086017-Hose Assy-Thd

33

31E4-3034

31E4-3034-Connector

34

31E4-3035

31E4-3035-Connector

35

P010-110004

P010-110004-Connector

44

E131-0277

E131-0277-Pipe-Spacer

45

31E3-3061

31E3-3061-Clamp Pipe-F

46

31EA-01910

31EA-01910-Clamp

47

31E3-3132

31E3-3132-Clamp Pipe-M

5

31EA-01740

31EA-01740-Cylinder-Adj,Lh

52

S017-160604

S017-160604-Bolt-Hex

53

S017-160654

S017-160654-Bolt-Hex

54

S017-100402

S017-100402-Bolt-Hex

57

S411-160002

S411-160002-Washer-Spring

58

S411-100002

S411-100002-Washer-Spring

6

31EA-01750

31EA-01750-Cylinder-Adj,Rh

7

31EA-01760

31EA-01760-Pipe Assy

8

31EA-01770

31EA-01770-Pipe Assy

9

31EA-01780

31EA-01780-Pipe Assy
