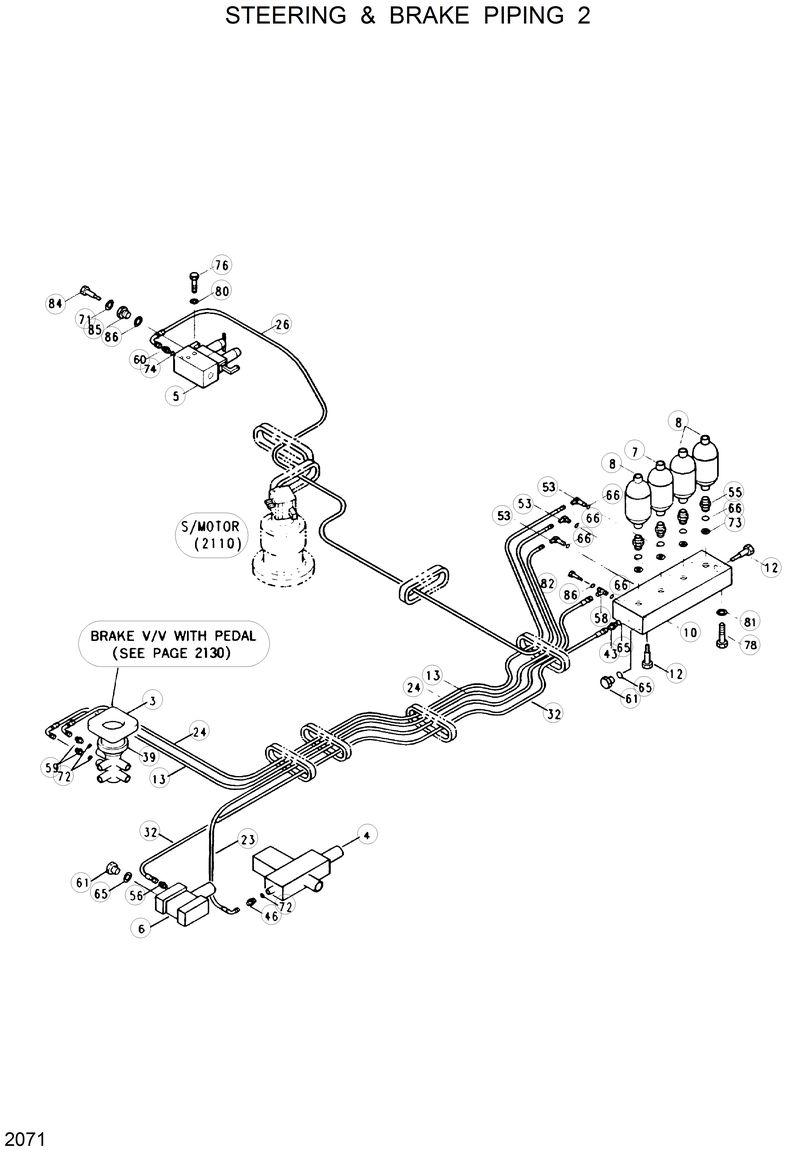

Запчасти Hyundai R130W STEERING & BRAKE PIPING 2

10

31EA-00860

31EA-00860-Block-Accumulator

12

31E4-0024

31E4-0024-Valve-Check

13

P600-066054

P600-066054-Hose Assy-Thd

23

P620-066050

P620-066050-Hose Assy-Thd 0x90

24

P600-066051

P600-066051-Hose Assy-Thd

26

P620-066054

P620-066054-Hose Assy-Thd 0x90

3

81L1-0005

81L1-0005-Brake Valve

32

P600-047046

P600-047046-Hose Assy-Thd

39

71EA-00130

71EA-00130-Spacer-Brake Valve

4

81E4-4001

81E4-4001-Cut-Off Valve

43

P010-110002

P010-110002-Connector

46

P010-220005

P010-220005-Connector

5

81E3-4004

81E3-4004-Change Over Valve

53

P020-110002

P020-110002-Elbow-90

55

31E3-3099

31E3-3099-Connector

56

31E4-3070

31E4-3070-Connector

58

31EA-00050

31EA-00050-Tee

59

31EA-00210

31EA-00210-Fitting-Banjo

6

31E5-3040

31E5-3040-Valve-Solenoid

60

31EC-02620

31EC-02620-Connector

61

P220-110102

P220-110102-Plug

65

S631-011001

S631-011001-O-Ring

66

S631-014001

S631-014001-O-Ring

7

31EC-02190

31EC-02190-Accumulator

71

P392-100000

P392-100000-Washer-Copper

72

P392-160000

P392-160000-Washer-Copper

73

P392-180000

P392-180000-Washer-Copper

74

P392-330000

P392-330000-Washer-Copper

76

S015-080702

S015-080702-Bolt-Hex

78

S015-100202

S015-100202-Bolt-Hex

8

81E3-40050

81E3-40050-Accumulator

80

S411-080002

S411-080002-Washer-Spring

81

S411-100002

S411-100002-Washer-Spring

82

31L1-0095

31L1-0095-Switch-Pressure

84

21E4-0015

21E4-0015-Switch-Pressure

85

21E4-3009

21E4-3009-Adapter

86

P392-120000

P392-120000-Washer-Copper
