Запчасти Hyundai R130W PILOT HYDRAULIC PIPING 6

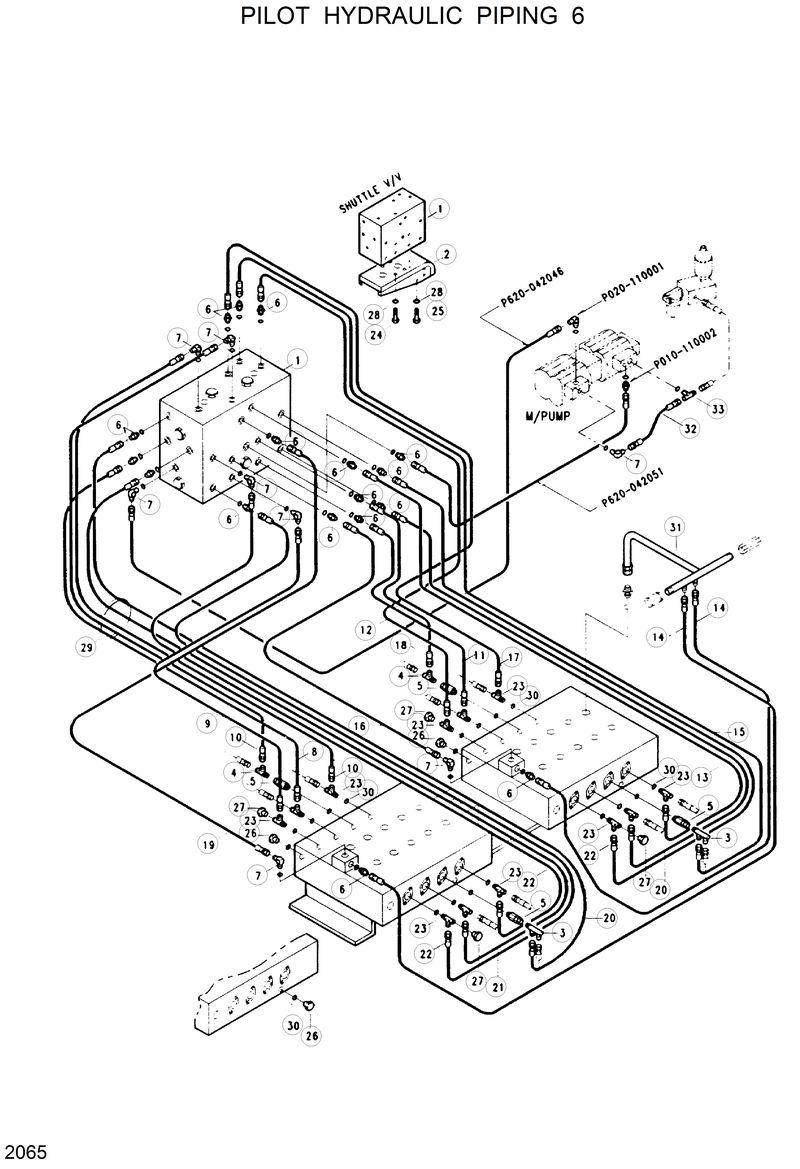

Схема запчастей Hyundai R130W - PILOT HYDRAULIC PIPING 6

Артикул

Название

Примечание

Количество

1

32EA-17010

32EA-17010-Shuttle Valve

10

P600-042010

P600-042010-Hose Assy

11

P600-042020

P600-042020-Hose Assy-Thd

12

P600-042022

P600-042022-Hose Assy-Thd

13

P620-042024

P620-042024-Hose Assy-Thd 0x90

14

P600-042025

P600-042025-Hose Assy-Thd

15

P620-042028

P620-042028-Hose Assy-Thd 0x90

16

P620-042015

P620-042015-Hose Assy-Thd 0x90

17

P620-042017

P620-042017-Hose Assy

18

P620-042018

P620-042018-Hose Assy-Thd 0x90

19

P620-042023

P620-042023-Hose Assy-Thd 0x90

2

32EA-17020

32EA-17020-Bracket-Pipe

20

P620-042025

P620-042025-Hose Assy-Thd 0x90

21

P620-042026

P620-042026-Hose Assy-Thd 0x90

22

P620-042027

P620-042027-Hose Assy-Thd 0x90

23

P320-040404

P320-040404-Tee

24

S017-100202

S017-100202-Bolt-Hex

25

S017-100302

S017-100302-Bolt-Hex

26

P220-110102

P220-110102-Plug

27

P290-100102

P290-100102-Plug-Cap

28

S411-100002

S411-100002-Washer-Spring

29

S551-050203

S551-050203-Clamp-Band

3

32EA-17030

32EA-17030-Tee-Adaptor

30

S631-011001

S631-011001-O-Ring

31

31EA-17040

31EA-17040-Pipe Assy-Return

32

P600-042008

P600-042008-Hose Assy-Thd

32

P600-042008

P600-042008-Hose Assy-Thd

33

P310-040404

P310-040404-Tee

4

32E6-10460

32E6-10460-Tee-Swivel

5

32E6-10320

32E6-10320-Valve-Shockless

6

P010-110002

P010-110002-Connector

7

P020-110001

P020-110001-Elbow-90

9

P600-042009

P600-042009-Hose Assy-Thd

Выбрано товаров: 33
