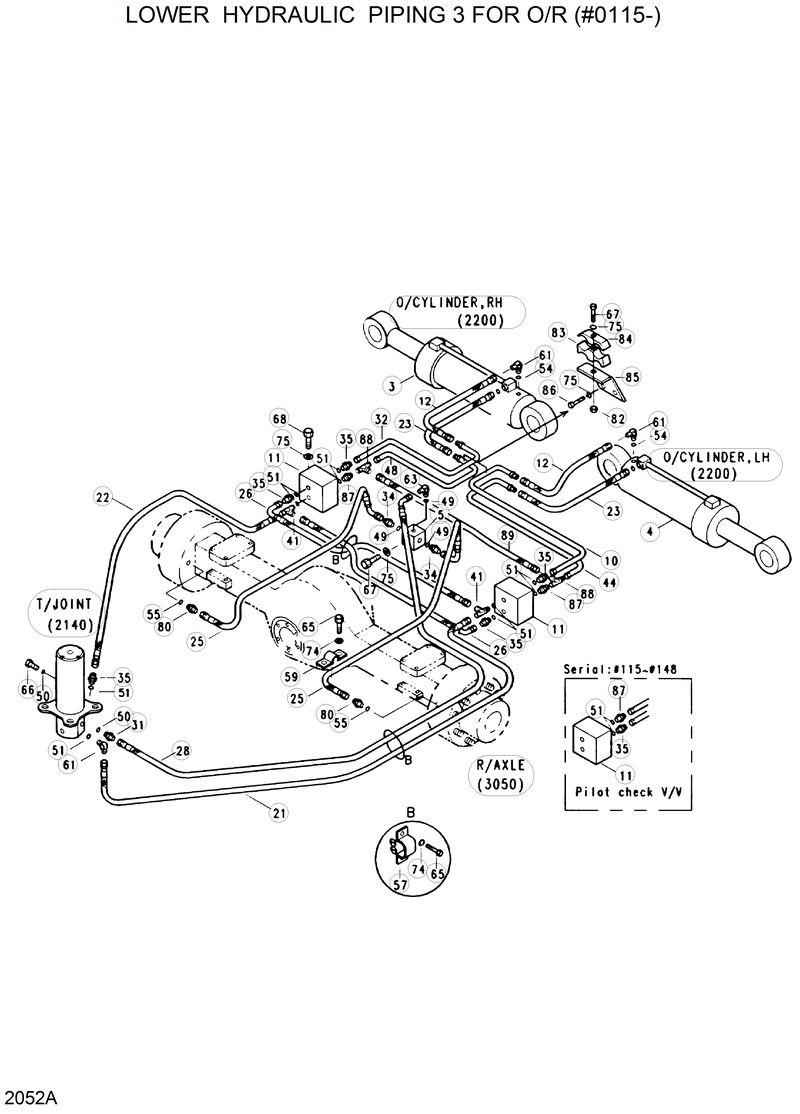

Запчасти Hyundai R130W LOWER HYDRAULIC PIPING 3 FOR O/R(#0115-)

31EA-02051

31EA-02051-Pipe Assy

31EA-02061

31EA-02061-Pipe Assy

31EA-03000

31EA-03000-Connector-Orifice

10

31EA-02030

31EA-02030-Pipe Assy

11

31E4-00090

31E4-00090-Valve-Pilot Check

12

P603-086013

P603-086013-Hose Assy-Thd

21

P623-086019

P623-086019-Hose Assy-Thd 0x90

22

P623-086018

P623-086018-Hose Assy-Thd 0x90

23

P623-086012

P623-086012-Hose Assy-Thd 0x90

25

P603-043020

P603-043020-Hose Assy-Thd

26

P623-086014

P623-086014-Hose Assy-Thd 0x90

28

P623-066032

P623-066032-Hose Assy-Thd 0x90

3

31EA-00870

31EA-00870-Cylinder-Outrigger,Rh

31

P010-110003

P010-110003-Connector

32

31EA-02040

31EA-02040-Pipe Assy

34

P010-110002

P010-110002-Connector

35

P010-110004

P010-110004-Connector

41

P320-080808

P320-080808-Tee

44

31EA-02050

31EA-02050-Pipe Assy

48

31EA-02060

31EA-02060-Pipe Assy

49

S631-011001

S631-011001-O-Ring

5

31E3-3065

31E3-3065-Block

50

S631-014001

S631-014001-O-Ring

51

S631-018001

S631-018001-O-Ring

54

CO0016A

CO0016A-O-Ring

55

32E3-3076

32E3-3076-Washer-Copper

57

31E4-3040

31E4-3040-Strap

59

31E4-3098

31E4-3098-Strap

61

P020-110003

P020-110003-Elbow-90

63

P020-110011

P020-110011-Elbow-90

65

S015-080152

S015-080152-Bolt-Hex

66

P220-110103

P220-110103-Plug

67

S017-101002

S017-101002-Bolt-Hex

68

S017-100652

S017-100652-Bolt-Hex

74

S411-080002

S411-080002-Washer-Spring

75

S411-100002

S411-100002-Washer-Spring

80

31E3-3090

31E3-3090-Connector-Long

82

S207-100002

S207-100002-Nut-Hex

83

31E4-31430

31E4-31430-Spacer-Clamp

84

31E4-3030

31E4-3030-Clamp-Pipe

85

31E4-31440

31E4-31440-Bracket-Pipe

86

S017-100202

S017-100202-Bolt-Hex

87

31E4-00830

31E4-00830-Connector

88

31L3-0221

31L3-0221-Tee

89

P603-087014

P603-087014-Hose Assy-Thd

N11

31E4-00410

31E4-00410-Pilot Check Valve

N4

31EA-00880

31EA-00880-Cylinder-Outrigger,Lh
