Запчасти Hyundai R130W LOWER HYDRAULIC PIPING 3 FOR O/R(-#0114)

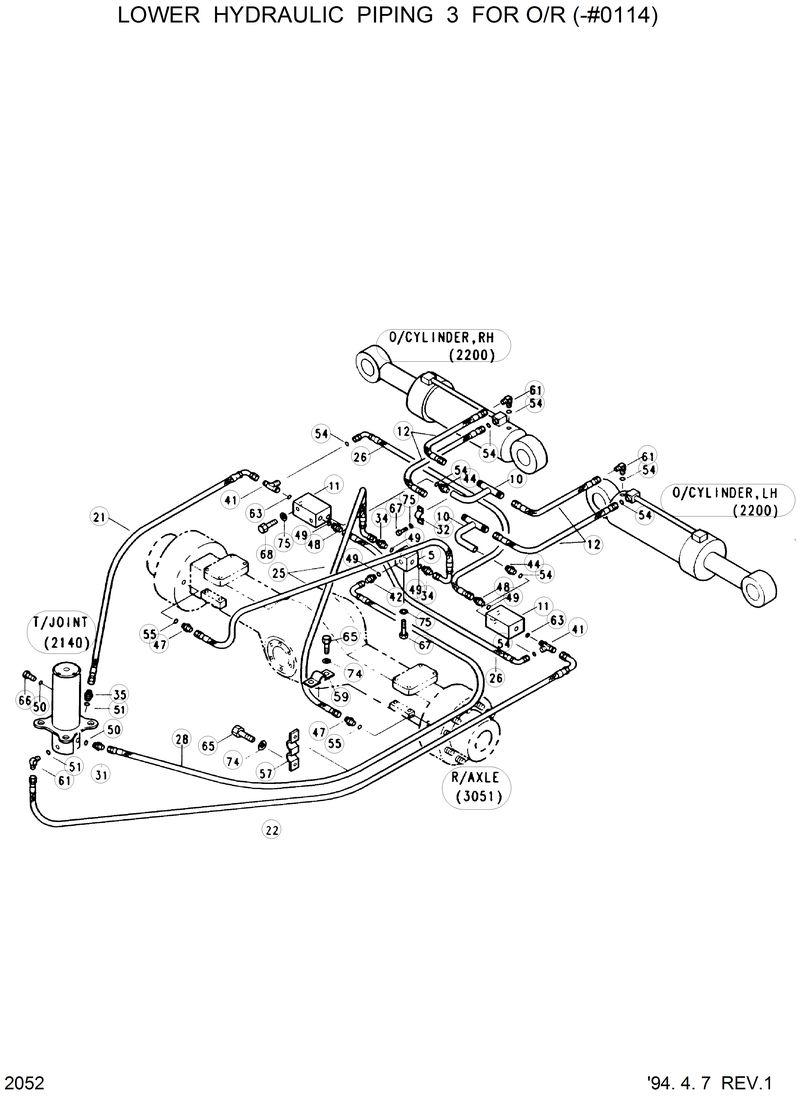

Схема запчастей Hyundai R130W - LOWER HYDRAULIC PIPING 3 FOR O/R(-#0114)

Артикул

Название

Примечание

Количество

10

31E3-1042

31E3-1042-Pipe Assy

11

31E3-0081

31E3-0081-Pilot Check Valve

12

P603-086013

P603-086013-Hose Assy-Thd

21

P623-086027

P623-086027-Hose Assy-Thd 0x90

22

P603-086032

P603-086032-Hose Assy-Thd

25

P603-043024

P603-043024-Hose Assy-Thd

26

P623-047010

P623-047010-Hose Assy-Thd 0x90

28

P623-066032

P623-066032-Hose Assy-Thd 0x90

31

P010-110003

P010-110003-Connector

32

31E3-3132

31E3-3132-Clamp Pipe-M

34

P010-110002

P010-110002-Connector

35

P010-110004

P010-110004-Connector

41

31E4-3082

31E4-3082-Tee-Rw

42

P010-110012

P010-110012-Connector

44

P010-110017

P010-110017-Connector

47

31E3-3090

31E3-3090-Connector-Long

48

P030-110001

P030-110001-Elbow-45

49

S631-011001

S631-011001-O-Ring

5

31E3-3065

31E3-3065-Block

50

S631-014001

S631-014001-O-Ring

51

S631-018001

S631-018001-O-Ring

54

CO0016A

CO0016A-O-Ring

55

32E3-3076

32E3-3076-Washer-Copper

57

31E4-3040

31E4-3040-Strap

59

31E4-3098

31E4-3098-Strap

61

P020-110003

P020-110003-Elbow-90

63

S631-022001

S631-022001-O-Ring

65

S015-080152

S015-080152-Bolt-Hex

66

31E3-3098

31E3-3098-Plug

67

S017-100452

S017-100452-Bolt-Hex

68

S017-100702

S017-100702-Bolt-Hex

74

S411-080002

S411-080002-Washer-Spring

75

S411-100002

S411-100002-Washer-Spring

Выбрано товаров: 33
