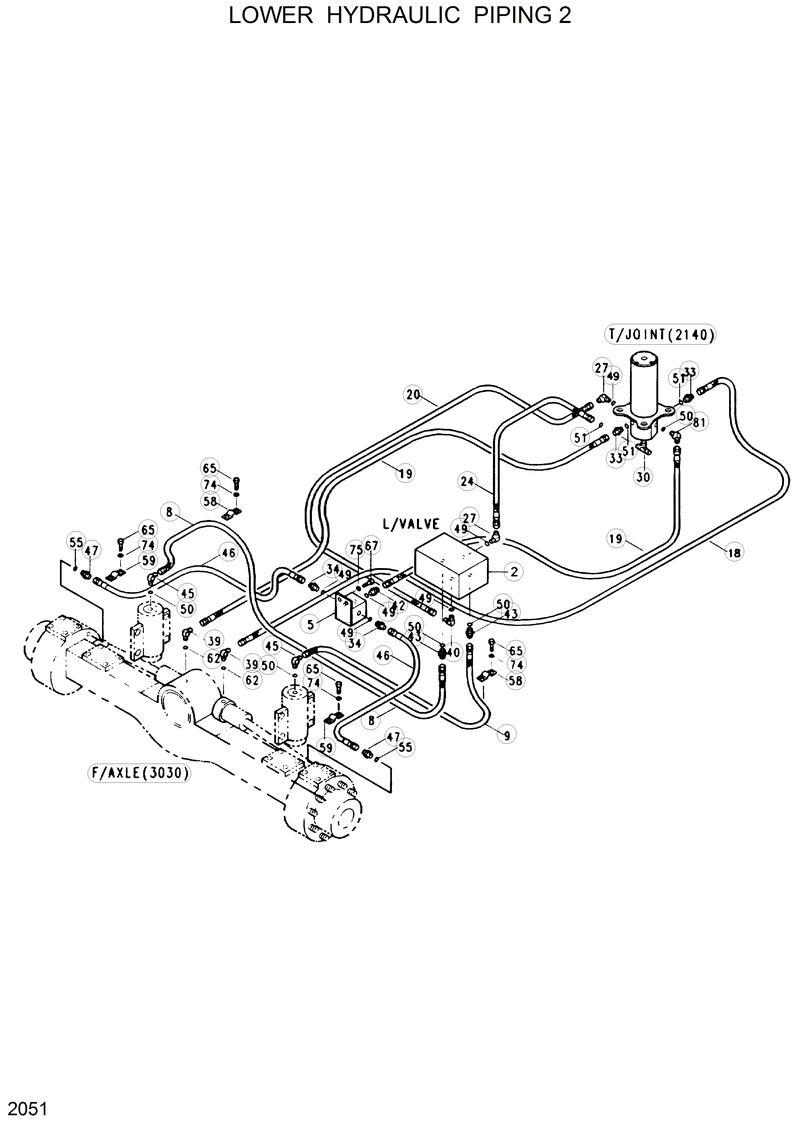

Запчасти Hyundai R130W LOWER HYDRAULIC PIPING 2

P613-042033

P613-042033-Hose Assy-Thd 0x45

18

P623-066044

P623-066044-Hose Assy-Thd 0x90

19

P623-066040

P623-066040-Hose Assy-Thd 0x90

2

81E3-0014

81E3-0014-Valve-Locking

20

P603-043031

P603-043031-Hose Assy-Thd

24

P623-042030

P623-042030-Hose Assy-Thd 0x90

27

P030-110002

P030-110002-Elbow-45

31

P010-110003

P010-110003-Connector

33

P020-110014

P020-110014-Elbow-90

34

P010-110002

P010-110002-Connector

39

P010-210007

P010-210007-Connector

40

P020-110001

P020-110001-Elbow-90

42

P010-110012

P010-110012-Connector

43

31E3-3113

31E3-3113-Connector

45

31E3-3175

31E3-3175-Elbow-90

46

P603-043021

P603-043021-Hose Assy-Thd 0x0

47

P010-220002

P010-220002-Connector

49

S631-011001

S631-011001-O-Ring

5

31E3-3065

31E3-3065-Block

50

S631-014001

S631-014001-O-Ring

51

S631-018001

S631-018001-O-Ring

55

32E3-3076

32E3-3076-Washer-Copper

58

31E4-3097

31E4-3097-Strap

59

31E4-3098

31E4-3098-Strap

62

S631-016001

S631-016001-O-Ring

65

S015-080152

S015-080152-Bolt-Hex

67

S017-101002

S017-101002-Bolt-Hex

74

S411-080002

S411-080002-Washer-Spring

75

S411-100002

S411-100002-Washer-Spring

79

P623-066041

P623-066041-Hose Assy-Thd 0x90

8

31EA-02010

31EA-02010-Pipe Assy

81

P030-110003

P030-110003-Elbow-45

9

31EA-02020

31EA-02020-Pipe Assy

N30

31EA-10340

31EA-10340-Fitting-Tee
