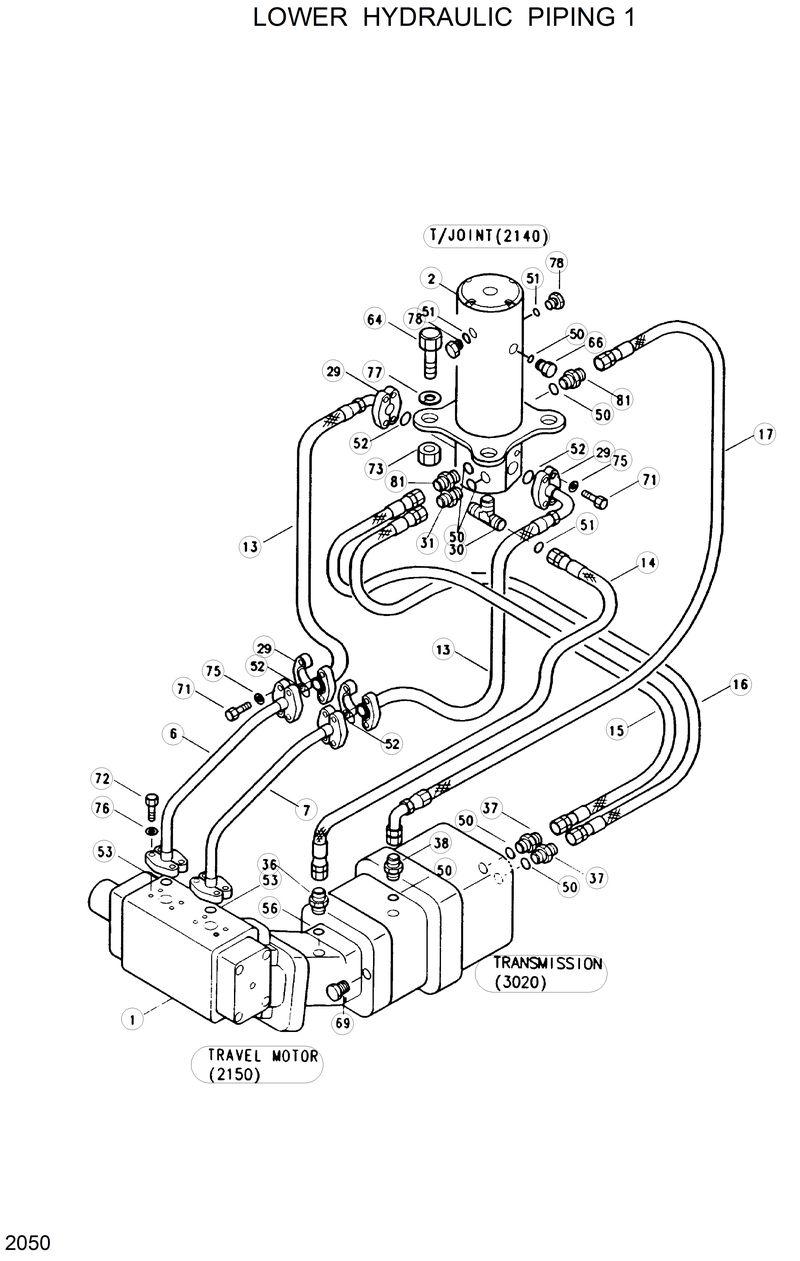

Запчасти Hyundai R130W LOWER HYDRAULIC PIPING 1

P010-110003

P010-110003-Connector

P010-110003

P010-110003-Connector

13

P703-127316

P703-127316-Hose Assy-Flg 0x90

14

P613-082019

P613-082019-Hose Assy-Thd 0x45

15

P623-062013

P623-062013-Hose Assy-Thd 0x90

16

P623-062012

P623-062012-Hose Assy-Thd 0x90

17

P623-062025

P623-062025-Hose Assy-Thd 0x90

2

31EA-00010

31EA-00010-Turning Joint

29

P173-120102

P173-120102-Flange-Split

36

P010-220008

P010-220008-Connector

37

P010-210005

P010-210005-Connector

38

P010-210003

P010-210003-Connector

50

S631-014001

S631-014001-O-Ring

51

S631-018001

S631-018001-O-Ring

52

CO0418A

CO0418A-O-Ring

53

CO0423A

CO0423A-O-Ring

56

31E4-3085

31E4-3085-Washer-Copper

6

31EA-10250

31EA-10250-Pipe Assy

64

S017-160552

S017-160552-Bolt-Hex

66

P220-110103

P220-110103-Plug

69

S017-160452

S017-160452-Bolt-Hex

7

31EA-10260

31EA-10260-Pipe Assy

71

S107-100254

S107-100254-Bolt-Socket

72

S107-120354

S107-120354-Bolt-Socket

73

S207-160002

S207-160002-Nut-Hex

75

S411-100002

S411-100002-Washer-Spring

76

S411-120002

S411-120002-Washer-Spring

77

S411-160002

S411-160002-Washer-Spring

78

P220-110104

P220-110104-Plug

81

P030-110003

P030-110003-Elbow-45

N1

31EA-00080

31EA-00080-Travel Motor

N30

31EA-10340

31EA-10340-Fitting-Tee
