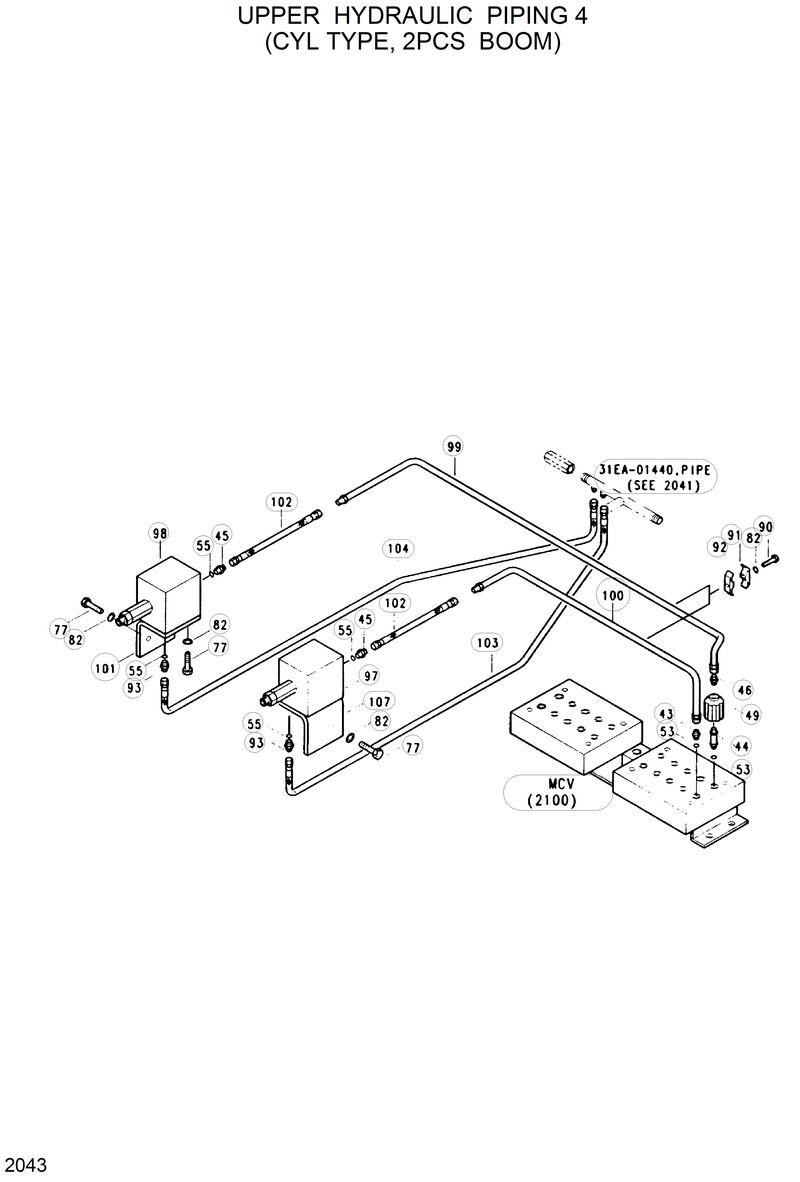

Запчасти Hyundai R130W UPPER HYDRAULIC PIPING 4(CYL, 2PCS BOOM)

100

31EA-01690

31EA-01690-Pipe Assy

101

31EA-01560

31EA-01560-Bracket-Rh Fr

102

P600-086010

P600-086010-Hose Assy-Thd

103

P620-122022

P620-122022-Hose Assy-Thd 0x90

104

P620-122025

P620-122025-Hose Assy-Thd 0x90

107

31EA-01570

31EA-01570-Bracket-Lh

43

P010-110017

P010-110017-Connector

44

31E3-3011

31E3-3011-Connector

45

P010-110004

P010-110004-Connector

46

P010-430017

P010-430017-Connector

49

31E3-0015

31E3-0015-Slow Return Valve

53

CO0021

CO0021-O-Ring

55

CO0016

CO0016-O-Ring

77

S017-100252

S017-100252-Bolt-Hex

82

S411-100002

S411-100002-Washer-Spring

90

S017-100402

S017-100402-Bolt-Hex

91

31E6-0073

31E6-0073-Clamp-Pipe-F

92

31E6-0165

31E6-0165-Clamp-Pipe

93

P010-110016

P010-110016-Connector

97

31EA-01731

31EA-01731-Block Assy

98

31EA-01721

31EA-01721-Block Assy

99

31EA-01681

31EA-01681-Pipe Assy
