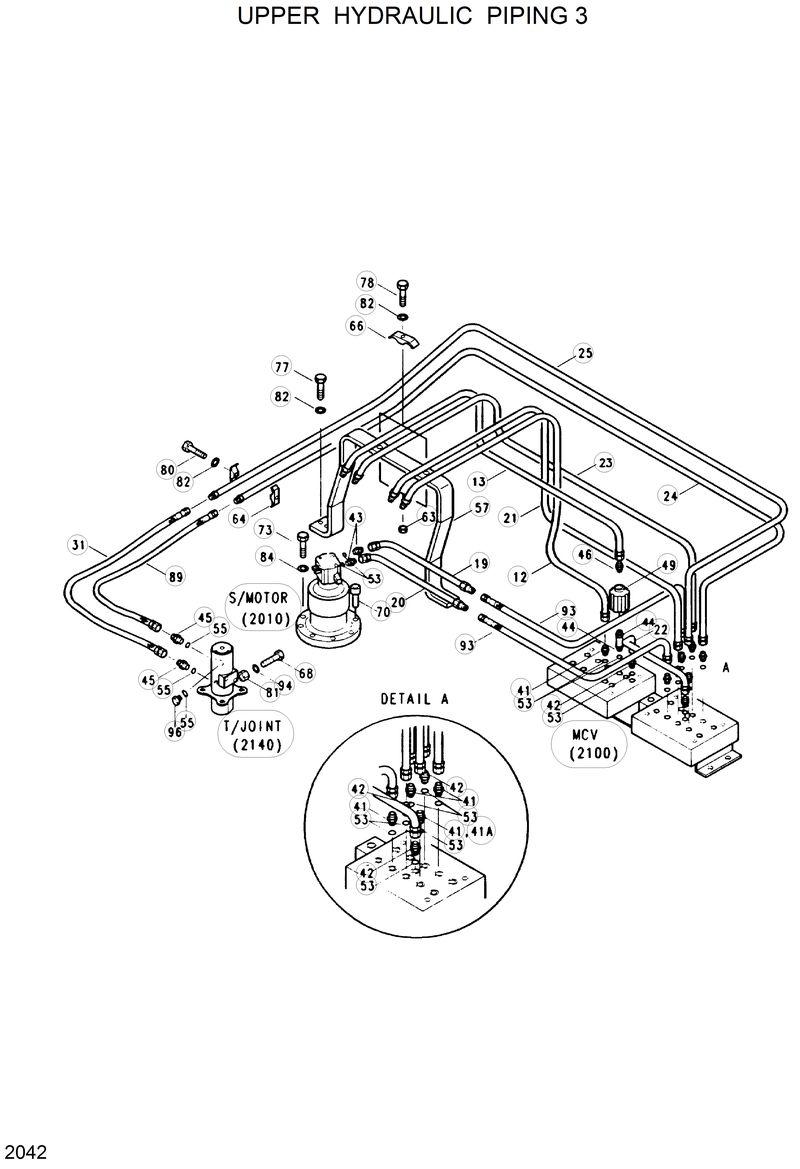

Запчасти Hyundai R130W UPPER HYDRAULIC PIPING 3

31EA-01920

31EA-01920-Pipe Assy

12

31EA-00930

31EA-00930-Pipe Assy

13

31EA-00920

31EA-00920-Pipe Assy

19

31E3-1016

31E3-1016-Pipe Assy

20

31E3-1017

31E3-1017-Pipe Assy

21

31EA-00910

31EA-00910-Pipe Assy

22

31EA-01040

31EA-01040-Pipe Assy

23

31EA-00900

31EA-00900-Pipe Assy

24

31EA-01420

31EA-01420-Pipe Assy

25

31EA-01430

31EA-01430-Pipe Assy

31

P610-086015

P610-086015-Hose Assy-Thd 0x45

41

31E3-3007

31E3-3007-Connector

42

P010-110005

P010-110005-Connector

43

P010-110017

P010-110017-Connector

43

P010-110017

P010-110017-Connector

44

31E3-3011

31E3-3011-Connector

45

P010-110004

P010-110004-Connector

46

P010-430017

P010-430017-Connector

49

31E3-0015

31E3-0015-Slow Return Valve

53

C00021

C00021-O-Ring

55

C00016

C00016-O-Ring

57

31EA-00970

31EA-00970-Bracket-Pipe

63

S207-101002

S207-101002-Nut-Hex

64

31E3-3048

31E3-3048-Clamp Pipe

66

31E3-3049

31E3-3049-Clamp-Pipe

68

31E3-3052

31E3-3052-Lock Bar

70

31E3-3053

31E3-3053-Pin-Dowel

73

S017-160602

S017-160602-Bolt-Hex

77

S017-100252

S017-100252-Bolt-Hex

78

S017-100602

S017-100602-Bolt-Hex

80

S017-100502

S017-100502-Bolt-Hex

81

S207-201002

S207-201002-Nut-Hex

82

S411-100002

S411-100002-Washer-Spring

84

S411-160002

S411-160002-Washer-Spring

89

P610-086014

P610-086014-Hose Assy-Thd 0x45

93

P600-087019

P600-087019-Hose Assy-Thd

94

S411-200002

S411-200002-Washer-Spring

96

P220-110104

P220-110104-Plug
