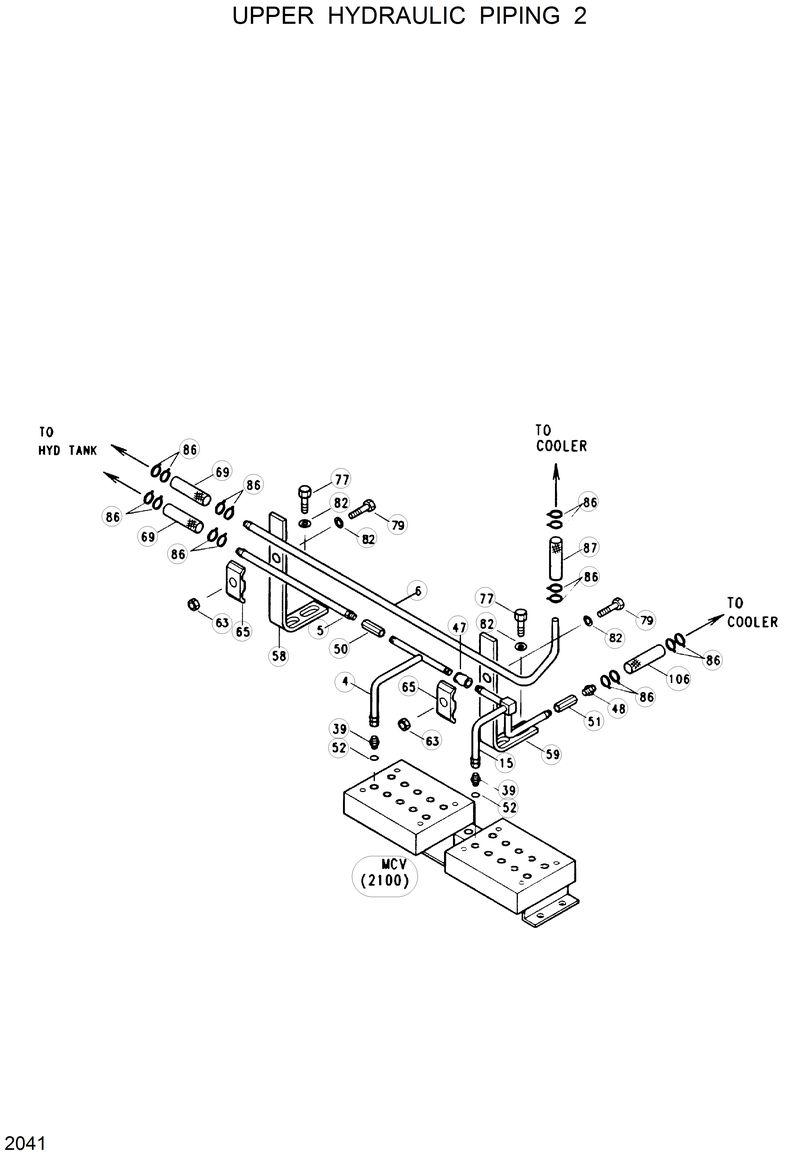

Запчасти Hyundai R130W UPPER HYDRAULIC PIPING 2

106

P760-061026

P760-061026-Hose-Rubber Low

15

31EA-01490

31EA-01490-Pipe Assy

39

P010-110006

P010-110006-Connector

4

31EA-01440

31EA-01440-Pipe Assy

47

E131-0672

E131-0672-Coupling

48

31E3-3040

31E3-3040-Fitting

5

31EA-01450

31EA-01450-Pipe Assy-Return

50

31E3-3165

31E3-3165-Valve-Check

51

31E3-0011

31E3-0011-Valve-Check

52

S631-029001

S631-029001-O-Ring

58

31EA-00960

31EA-00960-Bracket-Pipe

59

31EA-00950

31EA-00950-Bracket-Pipe

6

31EA-01460

31EA-01460-Pipe Assy

63

S207-101002

S207-101002-Nut-Hex

65

E131-0536

E131-0536-Clamp

69

P760-061016

P760-061016-Hose-Rubber Low

77

S017-100252

S017-100252-Bolt-Hex

79

S017-100752

S017-100752-Bolt-Hex

82

S411-100002

S411-100002-Washer-Spring

86

S520-040000

S520-040000-Clamp-Hose

87

31E3-2028

31E3-2028-Hose-Rubber
