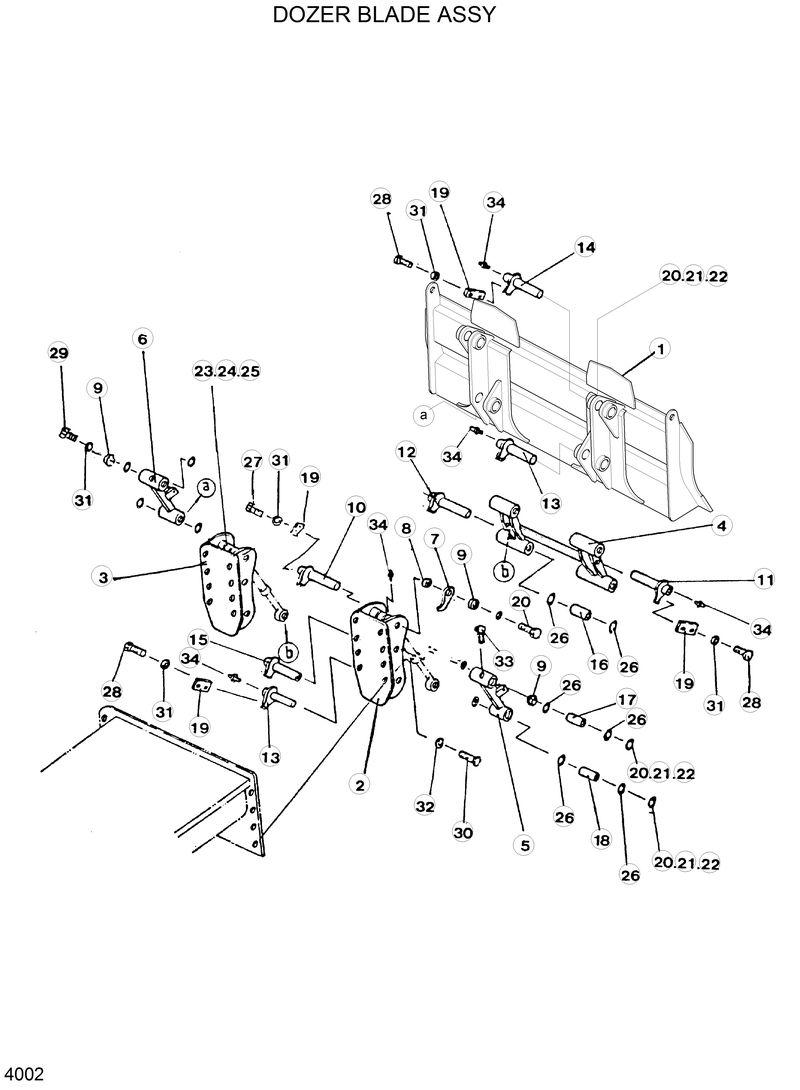

Запчасти Hyundai R120W DOZER BLADE ASSY

51E3-3000

51E3-3000-Blade Wa

51E3-3000

51E3-3000-Blade Wa

10

51E3-3151

51E3-3151-Pin-B/Cyl Head

11

51E3-3152

51E3-3152-Pin-B/Cyl Rod,Lh

12

51E3-3153

51E3-3153-Pin-B/Cyl Rod,Rh

13

51E3-3154

51E3-3154-Pin(A)-Blade

14

51E3-3155

51E3-3155-Pin(B)-Blade

15

51E3-3156

51E3-3156-Pin-Blade Link

16

51E3-3161

51E3-3161-Bushing

17

51E3-3162

51E3-3162-Bushing

18

51E3-3163

51E3-3163-Bushing

19

51E3-3164

51E3-3164-Plate-Lock

2

51E3-3100

51E3-3100-Blade Bracket Wa-Lh

20

61E3-2050

61E3-2050-Shim (0.5t)

21

61E3-2051

61E3-2051-Shim (1.0t)

22

61E3-2052

61E3-2052-Shim (2.0t)

23

61E3-2053

61E3-2053-Shim(0.5§®)

24

61E3-2054

61E3-2054-Shim(1.0§®)

25

61E3-2055

61E3-2055-Shim(2.0§®)

26

61E3-2141

61E3-2141-Dust Seal

27

S017-120252

S017-120252-Bolt-Hex

28

S017-120352

S017-120352-Bolt-Hex

29

S017-120502

S017-120502-Bolt-Hex

3

51E3-3101

51E3-3101-Blade Bracket Wa-Rh

30

S018-240502

S018-240502-Bolt-Hex

31

S441-120002

S441-120002-Washer-Hardened

32

S441-240002

S441-240002-Washer-Hardened

33

S652-810002

S652-810002-Nipple-Grease

34

S651-810002

S651-810002-Nipple-Grease

4

51E3-3121

51E3-3121-Blade Link (A) Wa

5

51E3-3133

51E3-3133-Blade Link (B) Wa-Lh

6

51E3-3134

51E3-3134-Blade Link (B) Wa-Rh

7

51E3-3141

51E3-3141-Hook

8

51E3-3142

51E3-3142-Spacer

9

51E3-3143

51E3-3143-Washer-Lock
