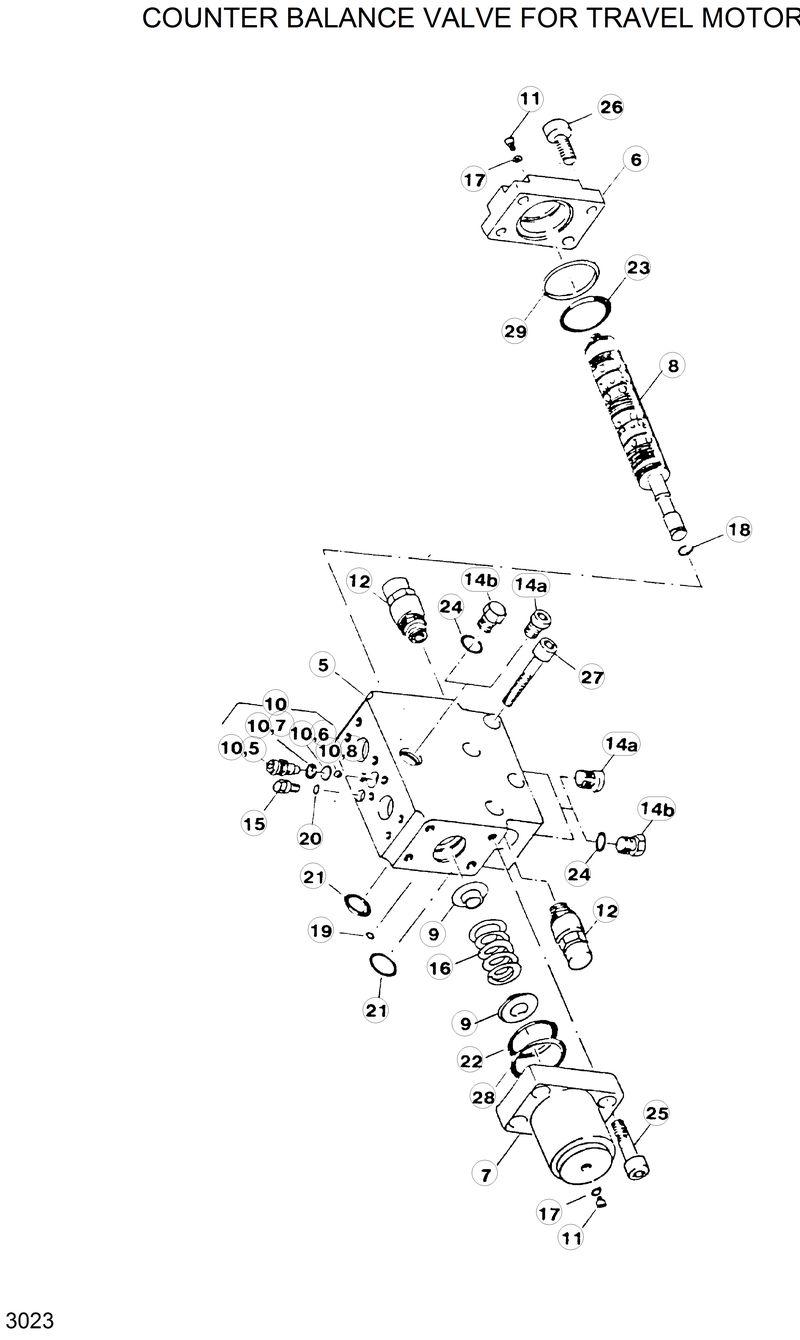

Запчасти Hyundai R120W COUNTER BALANCE VALVE FOR TRAVEL MOTOR

*-2

MHD20F2X

MHD20F2X-C/B V/V

10

324700

324700-. Sub Assy

10.5

172196

172196-.. Screw

10.6

009098

009098-.. O-Ring

10.7

013709

013709-.. Ring-Back Up

10.8

004966

004966-.. Ball-Steel

11

117640

117640-. Screw

12

417037

417037-. Valve-Check

14A

012297

012297-. Plug-Screw

14B

690327

690327-. Plug-Screw

15

690823

690823-. Plug-Screw

16

014139

014139-. Spring

17

004623

004623-. Ring-Sealing

18

001053

001053-. Circlip

19

002342

002342-. O-Ring

20

008478

008478-. O-Ring

21

008975

008975-. O-Ring

22

008946

008946-. O-Ring

23

009505

009505-. O-Ring

24

004449

004449-. O-Ring

25

017912

017912-. Bolt-Socket

26

017011

017011-. Bolt-Socket

27

003249

003249-. Bolt-Socket

28

694587

694587-. Ring-Back Up

29

694588

694588-. Ring-Back Up

5

694494

694494-. Housing

6

694492

694492-. Cover

7

694491

694491-. Cover

8

323162

323162-. Piston

9

184335

184335-. Retainer-Spring
