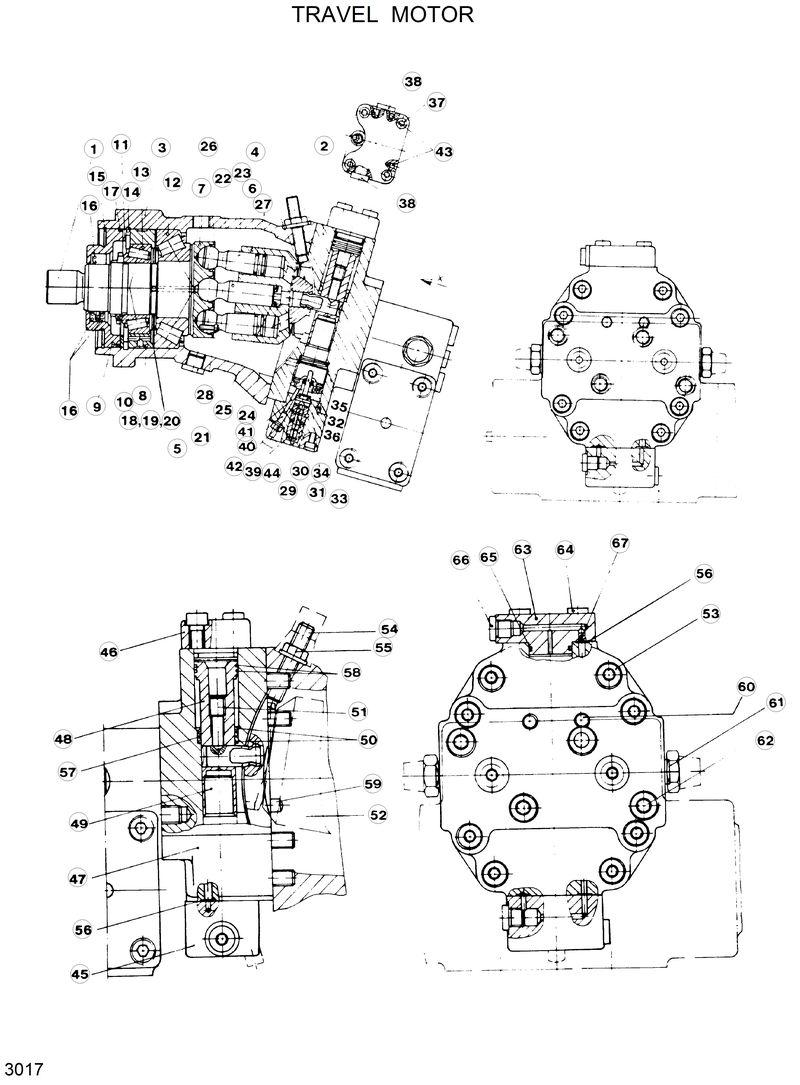

Запчасти Hyundai R120W TRAVEL MOTOR

440221273-0101

440221273-0101-.. Regulator

441221170-0101

441221170-0101-.. Part-Control F

201220390-0101

201220390-0101-.. Rotary Group

201250300-0101

201250300-0101-.. Rotary Group Assy

555221703-0101

555221703-0101-.. Cover

*-1

225224273-0101

225224273-0101-. Motor-Variable Disp

1

416231-20125031

416231-20125031-.. Rotary Group

10

156102

156102-.. Nut-Ring

11

156292

156292-.. Plate-Back Up

12

154344

154344-.. Roller Bearing

13

152775-DIN720

152775-DIN720-.. Roller Bearing

14

083421-DIN472

083421-DIN472-.. Retaining Ring

15

154380

154380-.. Ring-Snap

16

152852

152852-.. Ring-Snap

17

085366

085366-.. O-Ring

18

154260-N02085BL

154260-N02085BL-.. Shim

19

087601-N02085BL

087601-N02085BL-.. Shim

2

423787-44025127

423787-44025127-.. Control

20

154259-N02085BL

154259-N02085BL-.. Shim

21

421288-20125039

421288-20125039-.. Cylinder

22

410289-20125039

410289-20125039-.. Central Pin

23

431598-20125039

431598-20125039-.. Piston

24

412598-20125039

412598-20125039-.. Spring Collar

25

409134-20125079

409134-20125079-.. Spring-Cup

26

062574-20025100

062574-20025100-.. Retaining Plate

27

156248

156248-.. Ring

28

153617-DIN79858

153617-DIN79858-.. Screw-Lens

29

411987-44125111

411987-44125111-.. Housing-Control

3

412761-22525411

412761-22525411-.. Housing

30

417512-44122117

417512-44122117-.. Bushing-Control

31

430747-44122117

430747-44122117-.. Kolben-Steuer

32

420171-44125111

420171-44125111-.. Bush-Adjusting

33

418761-44122111

418761-44122111-.. Bolt-Spring

34

430757-44122117

430757-44122117-.. Spring

35

412990-44125111

412990-44125111-.. Pressure Spring

36

083768

083768-.. O-Ring

37

083042-DIN912-8

083042-DIN912-8-.. Screw-Socket Head

39

083381-DIN91310

083381-DIN91310-.. Retaining Ring

4

419664-22525411

419664-22525411-.. Control Lens

40

152427-DIN91310

152427-DIN91310-.. Pin

41

087756-DIN6325

087756-DIN6325-.. Pin-Cylinder

42

152425-N02100

152425-N02100-.. Nut-Seal Lock

43

153868-N02023

153868-N02023-.. Plug

44

085812-DIN6799

085812-DIN6799-.. Disc-Retaining

45

415138-44125117

415138-44125117-.. Control Part F

46

423169-55525170

423169-55525170-.. Cover

47

425821-44025127

425821-44025127-.. Piston

48

422216-44025111

422216-44025111-.. Stroking Piston

49

422217-44025111

422217-44025111-.. Shaft-Swivel

50

422905-44025111

422905-44025111-.. Ring-Back Up

51

409591-44025111

409591-44025111-.. Threaded Pin

52

412993-44025111

412993-44025111-.. Gasket

53

083090-DIN91288

083090-DIN91288-.. Screw

54

085976-DIN91510

085976-DIN91510-.. Pin

55

152459-N02100

152459-N02100-.. Nut-Seal Lock

56

086498

086498-.. O-Ring

57

156544

156544-.. Ring-Seal

58

156647-DIN34110

156647-DIN34110-.. Ring

59

152600-DIN7-ST

152600-DIN7-ST-.. Cylinder Pin

6

429232-20123039

429232-20123039-.. Rotary Group

60

153880-N02023

153880-N02023-.. Plug

61

153815-N02009

153815-N02009-.. Screw-Locking

61

153815-N02009

153815-N02009-.. Screw-Locking

62

153817-DIN91210

153817-DIN91210-.. O-Ring

63

419487-44025127

419487-44025127-.. Cover

64

083061-DIN91288

083061-DIN91288-.. Screw

65

083803

083803-.. O-Ring

66

151979-N02009

151979-N02009-.. Screw-Locking

66

151979-N02009

151979-N02009-.. Screw-Locking

67

156492-N02105

156492-N02105-.. Orifice

7

425716-20125031

425716-20125031-.. Drive Shaft

8

410429-20125031

410429-20125031-.. Ring-Bearing

9

410498-20125031

410498-20125031-.. Front Cover

N*

31E3-0004

31E3-0004-Travel Motor
