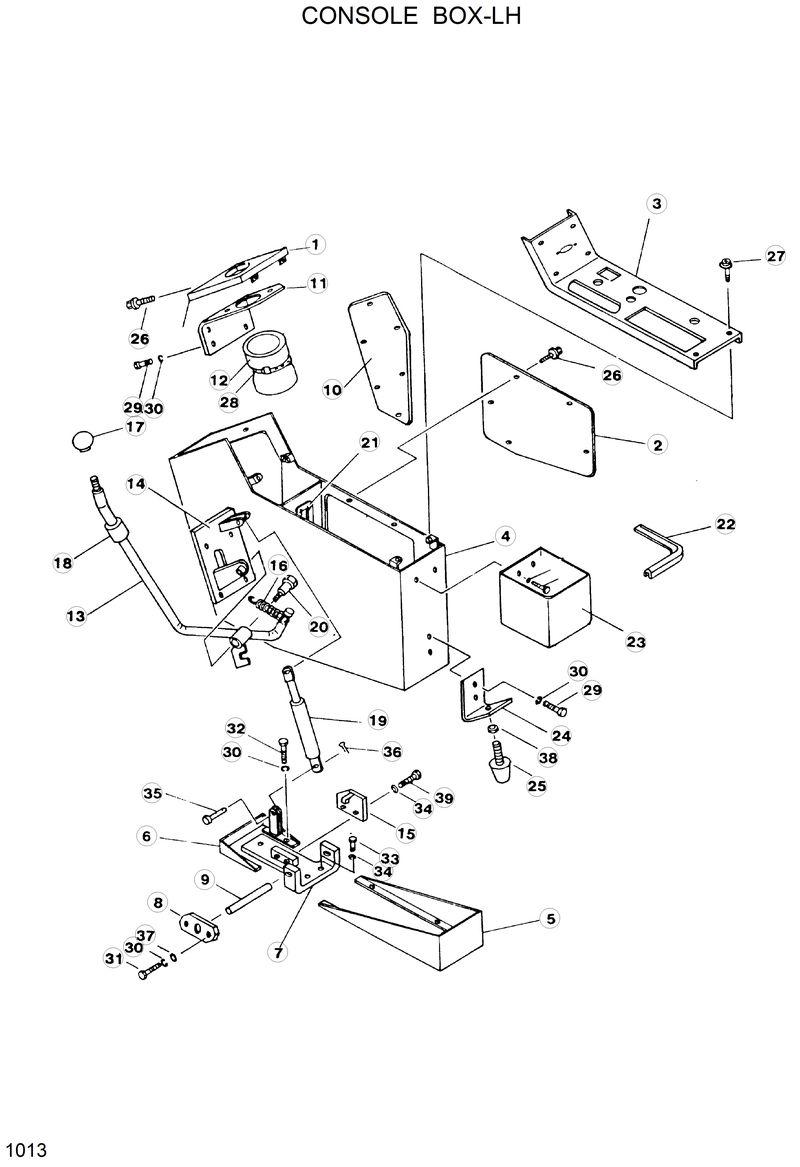

Запчасти Hyundai R120W CONSOLE BOX-LH

71E3-0006

71E3-0006-Panel Wa-Lh

71E3-0006

71E3-0006-Panel Wa-Lh

1

71E3-0004

71E3-0004-Cover Wa-Lh,Rcv

10

71E3-0028

71E3-0028-Cover-Lh,Fr

11

71E3-0031

71E3-0031-Bracket-Rcv

12

71E3-0040

71E3-0040-Insulation-Rcv

13

71E3-0042

71E3-0042-Safety Lever

14

71E3-0043

71E3-0043-Support-Safety Lever

15

71E3-0044

71E3-0044-Barcket-Safety Lever

16

71E3-0045

71E3-0045-Spring

17

E111-4509

E111-4509-Knob

18

E111-4510

E111-4510-Rubber-Cushion

19

71E3-4001

71E3-4001-Gas Spring

2

71E3-0005

71E3-0005-Cover-Lh,Rr

20

71E3-0074

71E3-0074-Bolt-Lever

22

71E3-0052

71E3-0052-Grommet

22

71E3-0052

71E3-0052-Grommet

23

71E3-0046

71E3-0046-Plate-Box

24

71E3-0041

71E3-0041-Bracket-Cushion

25

E171-1178

E171-1178-Rubber-Bumper

26

11293-06141

11293-06141-Sems Bolt(Hmc Part)

27

12291-06163

12291-06163-Sems Screw(Hmc Part)

28

17993-45000

17993-45000-Strap(Hmc Part)

29

S015-080162

S015-080162-Bolt-Hex

30

S411-080001

S411-080001-Washer-Spring

31

S015-080202

S015-080202-Bolt-Hex

32

S015-080302

S015-080302-Bolt-Hex

33

S017-100302

S017-100302-Bolt-Hex

34

S412-100002

S412-100002-Washer-Spring

35

S491-080222

S491-080222-Pin-Clevis

36

S461-200162

S461-200162-Pin-Split

37

S402-082002

S402-082002-Washer-Plain

38

S207-101002

S207-101002-Nut-Hex

39

S017-100202

S017-100202-Bolt-Hex

4

71E3-0007

71E3-0007-Console Wa-Lh

5

71E3-0008

71E3-0008-Cover-Inner,Rr

6

71E3-0009

71E3-0009-Cover-Inner,Fr

7

71E3-0012

71E3-0012-Support-Case,Lh

8

71E3-0013

71E3-0013-Plate-Support

9

71E3-0017

71E3-0017-Pin-Support
