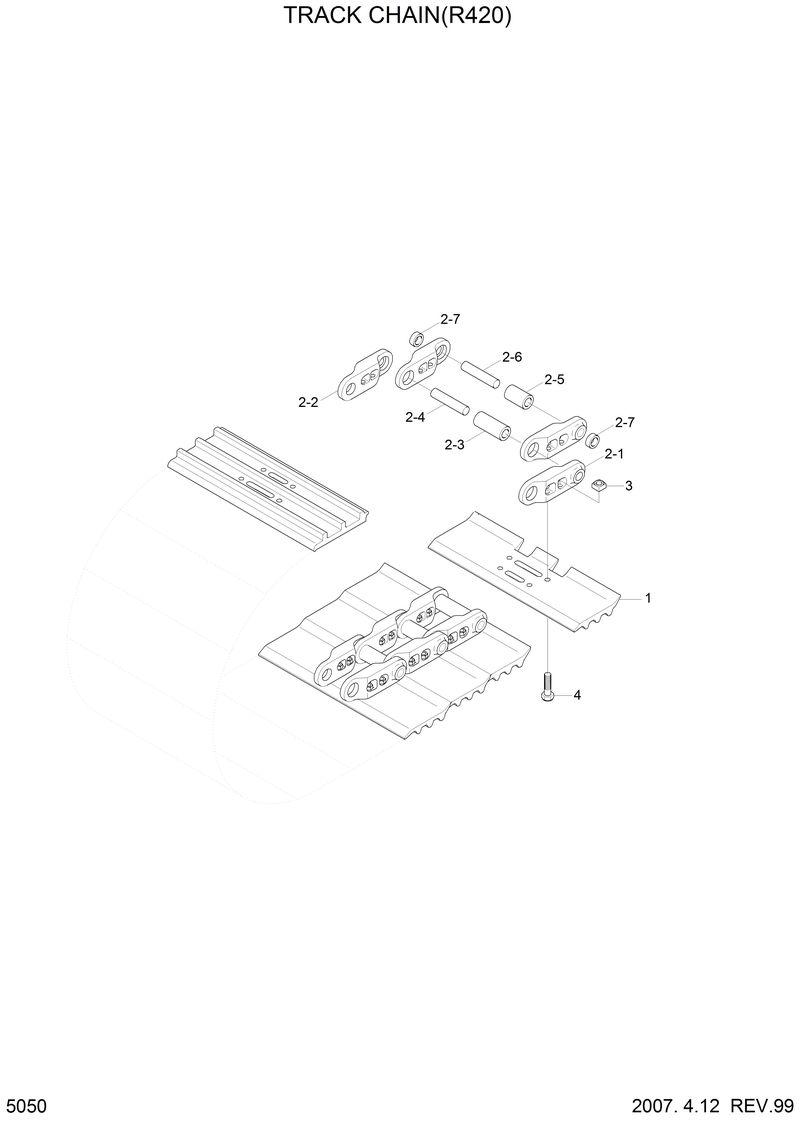

Запчасти Hyundai R420 TRACK CHAIN

*-1

81E7-0131

81E7-0131-Shoe-Track

*-2

81E7-0132

81E7-0132-Shoe-Track

*-3

81E7-0134

81E7-0134-Shoe-Track

*-4

81E7-0133

81E7-0133-Shoe-Track

1

81E7-0020

81E7-0020-Shoe-Track

2

81E7-0021

81E7-0021-Link Assy

2

81E7-0021

81E7-0021-Link Assy

2

81E7-0021

81E7-0021-Link Assy

2

81E7-0021

81E7-0021-Link Assy

2

81E7-0021

81E7-0021-Link Assy

2-1

0107-00S-01

0107-00S-01-. Link-Lh

2-2

0107-00S-02

0107-00S-02-. Link-Rh

2-3

0107-00M-23

0107-00M-23-. Bushing-Track

2-4

3222-00A-04

3222-00A-04-. Pin-Track

2-5

0107-00M-27

0107-00M-27-. Bushing-Master

2-6

1589-00A-08

1589-00A-08-. Pin-Master

2-7

0107-00M-10

0107-00M-10-. Collar

3

81E7-0022

81E7-0022-Nut-Track

3

81E7-0022

81E7-0022-Nut-Track

3

81E7-0022

81E7-0022-Nut-Track

3

81E7-0022

81E7-0022-Nut-Track

3

81E7-0022

81E7-0022-Nut-Track

4

81E7-0023

81E7-0023-Bolt-Track

4

81E7-0023

81E7-0023-Bolt-Track

4

81E7-0023

81E7-0023-Bolt-Track

4

81E7-0023

81E7-0023-Bolt-Track

4

81E7-0023

81E7-0023-Bolt-Track
