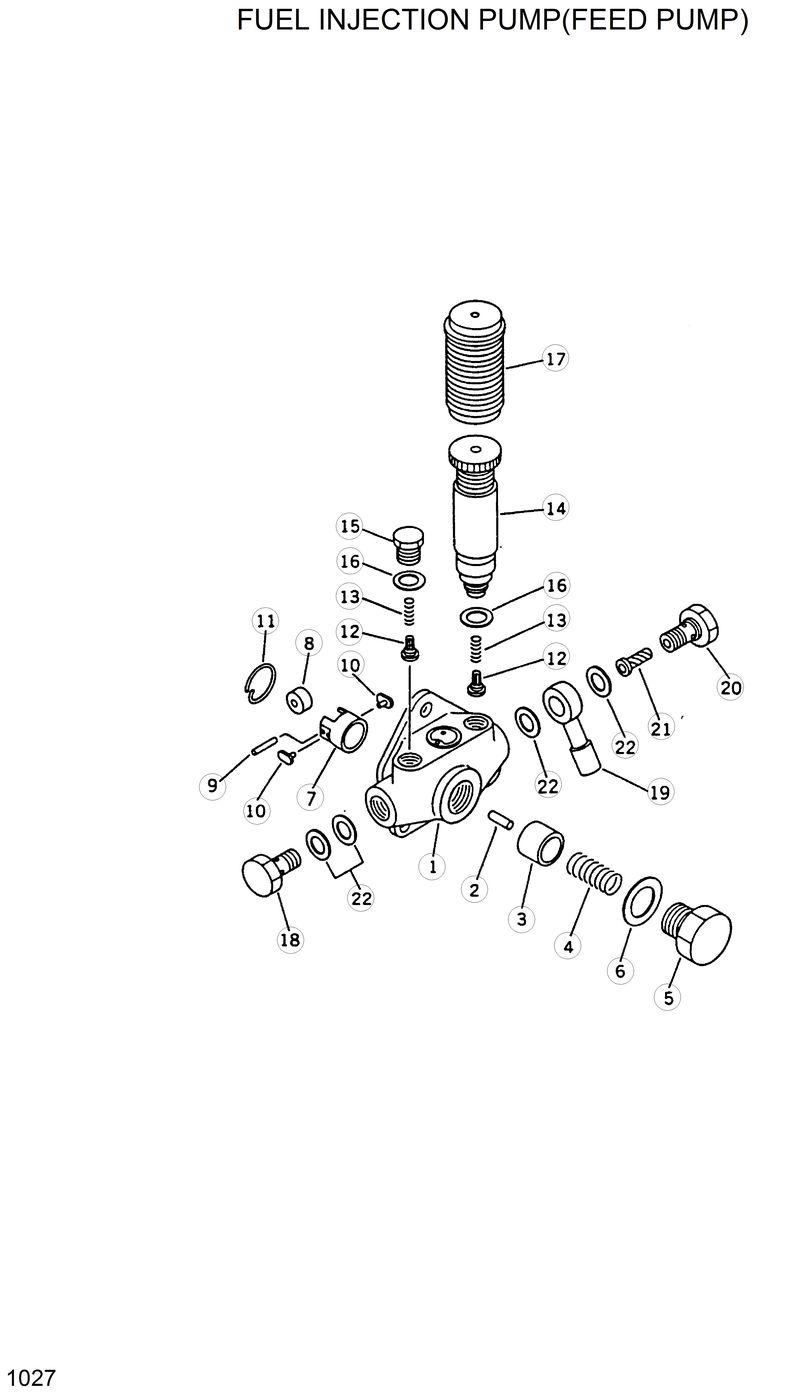

Запчасти Hyundai R420 FUEL INJECTION PUMP(FEED PUMP)

*-1

ND092100-1761

ND092100-1761-. Feed Pump Assy

1

ND092120-0370

ND092120-0370-.. Housing

10

ND092179-0070

ND092179-0070-.. Block-Sliding

11

ND949072-0940

ND949072-0940-.. Ring-Snap

12

ND092121-0011

ND092121-0011-.. Valve Check

13

ND092124-0010

ND092124-0010-.. Spring-Valve

14

ND092130-0220

ND092130-0220-.. Pump Assy-Priming

15

ND092126-0010

ND092126-0010-.. Plug-Chamber

16

ND092125-0010

ND092125-0010-.. Gasket

17

ND090061-0011

ND090061-0011-.. Cover

18

ND949180-0310

ND949180-0310-.. Screw

19

ND949181-0420

ND949181-0420-.. Nipple

2

ND092168-0150

ND092168-0150-.. Rod-Push

20

ND092223-0070

ND092223-0070-.. Screw

21

ND092220-0040

ND092220-0040-.. Filter-Fuel

22

ND090222-0070

ND090222-0070-.. Washer

3

ND092171-0011

ND092171-0011-.. Piston

4

ND092182-0060

ND092182-0060-.. Spring-Piston

5

ND092184-0021

ND092184-0021-.. Plug-Chamber

6

ND949018-1240

ND949018-1240-.. Washer

7

ND092174-0050

ND092174-0050-.. Tappet-Feed Pump

8

ND092176-0010

ND092176-0010-.. Roller-Tappet

9

ND092178-0040

ND092178-0040-.. Pin-Roller

N*

6151-73-1210

6151-73-1210-Injection Pump Assy
